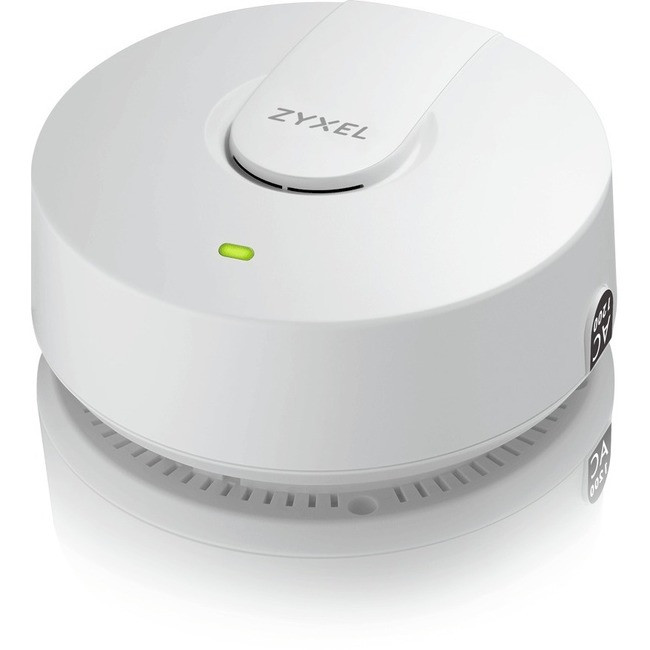

ZYXEL NWA1123-ACv2 IEEE 802.11ac 1.17 Gbit/s Wireless Access Point - NWA1123-ACV2

Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: NWA1123-ACV2
Manufacturer Website Address: http://www.us.zyxel.com
Brand Name: ZYXEL
Product Model: NWA1123-ACv2
Product Name: 802.11ac Dual-Radio Ceiling Mount PoE Access Point
Marketing Information:

Zyxel delivers speed and convenience with its refreshed NWA1123-ACv2 802.11ac 2x2 PoE access point (AP), offering streamlined controller-less deployment for a trouble-free wireless LAN experience. Building on the solid reputation of its predecessor, this ultra-fast AP brings together remarkable performance and coverage enhancements, along with a user-friendly interface and robust design components. The smoke detector-style exterior makes this AP ideal for indoor ceiling-mount installation, providing smooth Wi-Fi service without detracting from interior design aesthetics. The NWA1123-ACv2 also supports repeater operating mode, making it a flexible solution for small businesses, hotels, and school environments.

Benefits

Best interior performance in a smoke detector design

Users no longer have to choose between performance and environmental cohesion when deploying business wireless APs. The smoke detector-style form factor of the Zyxel NWA1123-ACv2 with embedded antenna module and optimized radiation pattern is suitable for ceiling installation. This design element not only helps it outperform comparable APs, but also allows it to blend seamlessly into interior spaces and prevent equipment theft. The Zyxel NWA1123-ACv2 is constructed from non-toxic casing materials, making it safe to install in plenum areas, as it won't release hazardous vapor emissions in the event of a fire. This is life-critical issue, particularly when deploying in public venues such as offices, hotels, and schools.

Zyxel One Network experience

Aiming for relieving our customers from repetitive operations of deploying and managing a network, Zyxel One Network is designed to simplify the configuration, management, and troubleshooting, allowing our customers to focus on the business priorities. Zyxel One Network presents an easy-to-use tool, Zyxel One Network Utility (ZON Utility), to realize speed network setup. Zyxel Smart Connect allows Zyxel networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. Zyxel One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.

Best-ever user experience

The biggest achievement with the NWA1123-ACv2 is optimized antenna and RF design that create a thoroughly enhanced Wi-Fi experience via a combination of improved software and hardware. Additional improvements to the NWA1123-ACv2 include dynamic channel selection (DCS) and load balancing. DCS avoids interference from co-channel and channel overlapping at initialization, while load balancing allows administrators to easily limit the number of clients associated with each AP. These advanced functions ensure that users can enjoy a stable wireless networking experience over the ideal Wi-Fi channel on the optimal AP.

Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Frequency Band:

• 2.40 GHz
• 5 GHz

Wireless Transmission Speed: 1.17 Gbit/s
MIMO Technology: Yes
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE (RJ-45) Port: No
PoE PD Port: Yes
VGA: No
HDMI: No
USB: No
Powerline: No
Management Port: No
Physical Characteristics
Form Factor:

• Ceiling Mountable
• Wall Mountable

Height: 2.2"
Width: 5.1"
Depth: 5.1"
Weight (Approximate): 10.58 oz
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
