Product Description
Xtore StudioSTOR 5T expansion unit with 5pcs WD 1TB HDD (no HBA) - XJ-SA11-0053SS0111A1
Manufacturer: Advanced Industrial Computer, Inc
Manufacturer Part Number: XJ-SA11-0053SS0111A1
Manufacturer Website Address: http://www.aicipc.com
Brand Name: Xtore
Product Line: StudioSTOR
Product Model: 5T
Product Name: StudioSTOR 5T expansion unit with 5pcs WD 1TB HDD (no HBA)
Marketing Information:

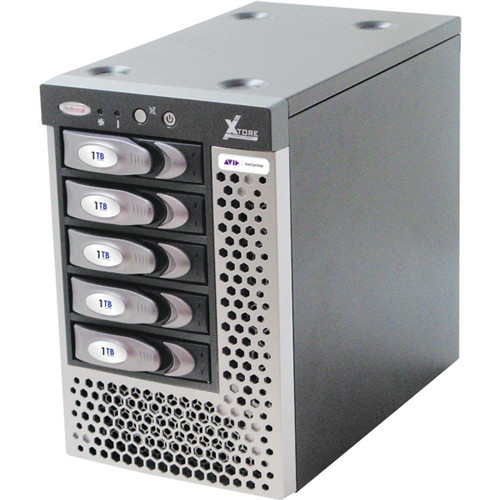

Xtore™ StudioSTOR™ 5T is a desktop RAID subsystem designed for high performance storage demand.With 12Gbps wide SAS bandwidth host and expansion interface supporting both SAS and SATA drives,Xtore™ StudioSTOR™ 5T quadruples the standard data transfer rate of a conventional desktop SATA RAIDsubsystem.
Xtore™ StudioSTOR™ 5T utilizes a top leading RAID controller cards such as ATTO R380 providing 3-GbSAS/SATA II connectivity with integrated RAID support and is ideal for digital video environments that requiresa high level of data protection and performance.
High Performance Desktop RAID Solution
The data bandwidth of Xtore™ StudioSTOR™ 5T is 1200MBps per SAS host connection. Theperformance of the bus is achieved by combining four SAS channels with each supporting 3Gbps fullduplex speed. Together with a SAS RAID controller card in the host server, this storage enclosure candeliver an unprecedented performance.
Easy Maintenance and Management
Xtore™ StudioSTOR™ 5T series supports SES (SCSI Enclosure Service) for status monitoring and in-band firmware update. User can perform RAID management through RAID controller Graphical User Interface (GUI) and a system status monitoring through a serial port.
Product Type: DAS Storage System
Storage
Number of Hard Drives Installed: 5
Total Hard Drive Capacity Installed: 5 TB
I/O Expansions
Number of Total Expansion Bays: 5
Number of 3.5" Bays: 5
Controllers
RAID Supported: Yes
RAID Levels:
- 0, 1, 4, 5, 6, 10, 40, 50, 60, DVRAID, JBOD
- 1
- 4
- 5
- 6
- 10
- 50
- 60
- JBOD
- DVRAID
- 40
Interfaces/Ports
Host Interface: 12Gb/s SAS
Power Description
Maximum Power Supply Wattage: 250 W
Physical Characteristics
Height: 11"
Width: 7"
Depth: 12"
Form Factor: Tower
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
