Product Description

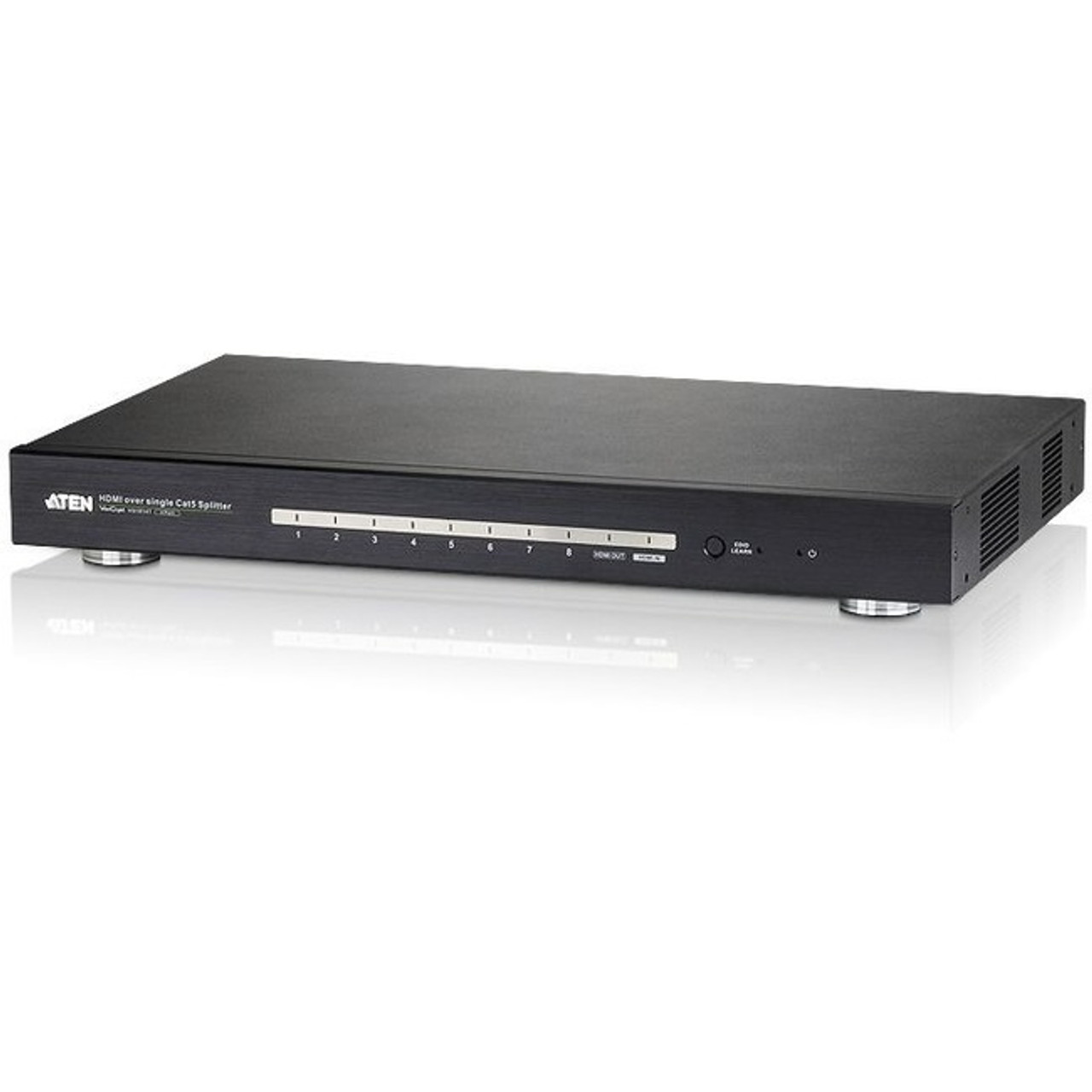

VanCryst 8-Port HDMI Over Single Cat 5 Splitter-TAA Compliant - VS1818T
Manufacturer: ATEN Technology Inc
Manufacturer Part Number: VS1818T
Manufacturer Website Address: http://www.aten-usa.com
Brand Name: VanCryst
Product Model: VS1818T
Product Name: 8-Port HDMI Over Single Cat 5 Splitter
Marketing Information:
The VS1818T HDMI over single Cat 5 Splitter provides a fast and efficient way of switching high definition video from one input source to 8 displays. Incorporating suggested HDBaseT receivers*, the VS1818T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations, located up to 100m away from the source.
* Suggested Compatible Receiver Units: VE812R HDMI Over Single Cat 5 Receiver
The solution implements HDBaseT extension technology to connect the VS1818T to receiver units over one single Cat 6 cable in order to transmit rich HDMI multimedia content in real time. It supports up to 4k2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.
The VS1818T solution is perfect for a wide range of applications:
- In-store or tradeshow digital signage
- Information broadcasts at public locations (i.e., news, stations, airline and train schedule and arrival/departure details)
- Sporting events
- Theater and lecture overview rooms
- Classroom and company training facilities
Product Type: Video Extender Receiver
Technical Information
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 8
Maximum Operating Distance: 328.08 ft
Video
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 8
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Physical Characteristics
Color: Black
Receiver Height: 1.73"
Receiver Width: 10.28"
Receiver Depth: 17.21"
Form Factor: Rack-mountable
Receiver Weight (Approximate): 7.89 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- WEEE
