Product Description

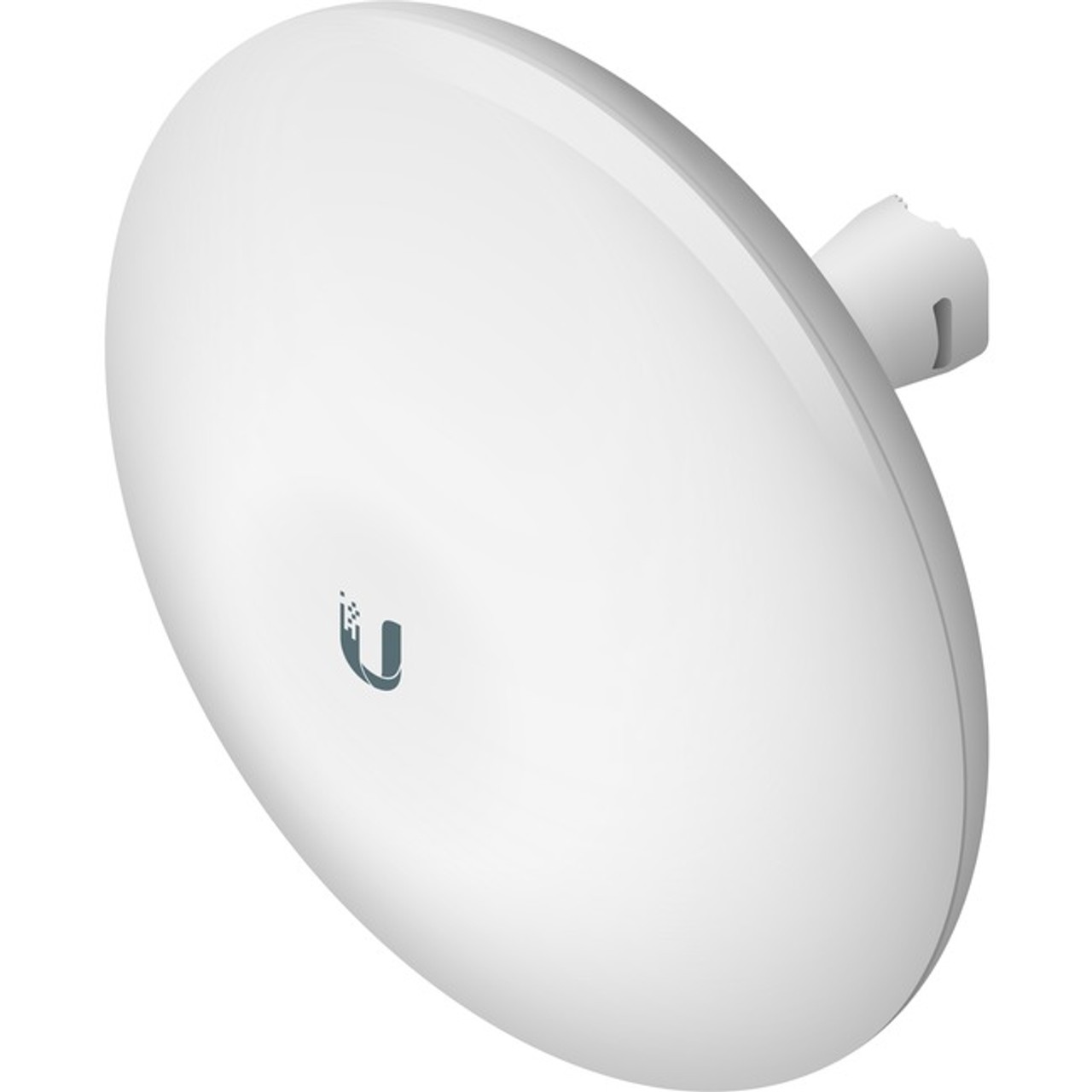

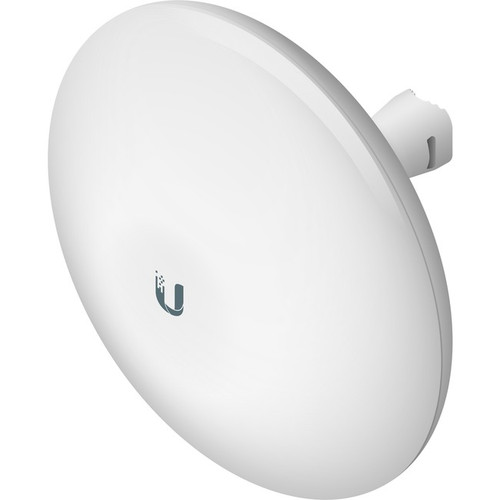

Ubiquiti NanoBeam NBE-M5-19 IEEE 802.11n 150 Mbit/s Wireless Bridge - NBE-M5-19-US
Manufacturer: Ubiquiti Networks, Inc
Manufacturer Part Number: NBE-M5-19-US
Manufacturer Website Address: http://www.ubnt.com
Brand Name: Ubiquiti
Product Line: NanoBeam
Product Series: M
Product Model: NBE-M5-19
Product Name: NanoBeam M NBE-M5-19 Wireless Bridge
Marketing Information:
Incorporating innovative industrial design with advanced technology, the NanoBeam®M is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.
Plug and Play Installation
The NanoBeam® mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Incredible Antenna "Beam" Performance
The form factor of the NanoBeam® features the highest gain for its size. The NanoBeam's excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Wall Mount Kit
Use the optional NBE-WMK Wall Mount Kit for enhanced stability when mounting the NanoBeam on a wall.
Product Type: Wireless Bridge
Technical Information
Wireless LAN Standard: IEEE 802.11n
Frequency Band: 5 GHz
Outdoor Antenna Range: 9.3 Mile
Wireless Transmission Speed: 150 Mbit/s
Interfaces/Ports
Ethernet Technology:
- Ethernet
- Fast Ethernet
Number of Network (RJ-45) Ports: 1
PoE (RJ-45) Port: No
PoE PD Port: Yes
VGA: No
HDMI: No
USB: No
Powerline: No
Management Port: No
Physical Characteristics
Form Factor:
- Pole-mountable
- Wall Mountable
Height: 4.9"
Width: 7.4"
Diameter: 7.4"
Weight (Approximate): 1.17 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
