Product Description

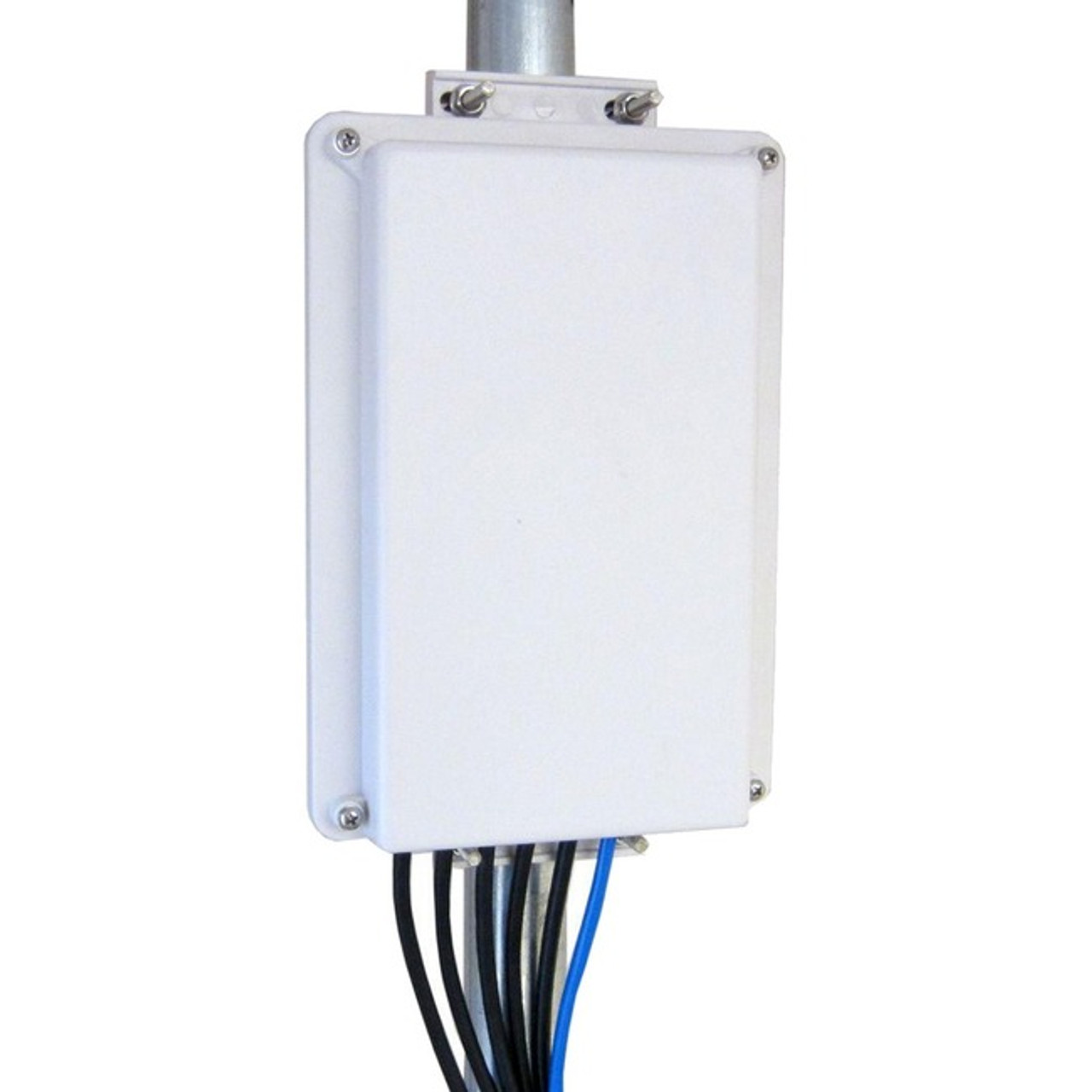

Tycon Power 8 Port 48VDC Passive POE 10/100 Outdoor Switch (48VDC 150W Supply Included) - TP-SW8NC-OUT48
Specifications
Manufacturer: Tycon Power Systems
Manufacturer Part Number: TP-SW8NC-OUT48
Manufacturer Website Address: http://www.tyconpower.com
Brand Name: Tycon Power
Product Model: TP-SW8NC-OUT-48
Product Name: 8 Port 48VDC Passive POE 10/100 Outdoor Switch (48VDC 150W POE Supply Included)
Marketing Information: The TP-SWxxNC-OUT series of outdoor POE switch are designed for operation in harsh outdoor environments. The switch can be powered via a wire terminal connector or over POE into the uplink port. This allows the switch to be mounted where it is needed and up to 100m from a power source. By using the switch as a repeater, the useable Cat5 cable distance between power source and user POE devices can be doubled to 200m.
The switch is available in a 5 port Gigabit model and an 8 port 10/100 model and two different POE voltages, a 24VDC POE model and a 48VDC POE model. The model can be changed in the field just by changing the power supply voltage which powers the switch. The switches are supplied with 150W AC to DC power supplies with Gigabit POE inserters.
The 24VDC POE model is compatible with devices like UBNT and Mikrotik. The 48VDC POE model is compatible with any device that complies with the 802.3af/at standard.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Modular: No
Stack Port: No
Port/Expansion Slot Details:
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-FX
I/O Expansions
Shared SFP Slot: No
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
Power Source: PoE
Physical Characteristics
Form Factor: Wall Mountable
Height: 2.5"
Width: 7"
Depth: 11.5"
Weight (Approximate): 4.20 lb
Manufacturer: Tycon Power Systems
Manufacturer Part Number: TP-SW8NC-OUT48
Manufacturer Website Address: http://www.tyconpower.com
Brand Name: Tycon Power
Product Model: TP-SW8NC-OUT-48
Product Name: 8 Port 48VDC Passive POE 10/100 Outdoor Switch (48VDC 150W POE Supply Included)
Marketing Information: The TP-SWxxNC-OUT series of outdoor POE switch are designed for operation in harsh outdoor environments. The switch can be powered via a wire terminal connector or over POE into the uplink port. This allows the switch to be mounted where it is needed and up to 100m from a power source. By using the switch as a repeater, the useable Cat5 cable distance between power source and user POE devices can be doubled to 200m.
The switch is available in a 5 port Gigabit model and an 8 port 10/100 model and two different POE voltages, a 24VDC POE model and a 48VDC POE model. The model can be changed in the field just by changing the power supply voltage which powers the switch. The switches are supplied with 150W AC to DC power supplies with Gigabit POE inserters.
The 24VDC POE model is compatible with devices like UBNT and Mikrotik. The 48VDC POE model is compatible with any device that complies with the 802.3af/at standard.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Modular: No
Stack Port: No
Port/Expansion Slot Details:
- 1 x Fast Ethernet Uplink
- 7 x Fast Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-FX
I/O Expansions
Shared SFP Slot: No
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
Power Source: PoE
Physical Characteristics
Form Factor: Wall Mountable
Height: 2.5"
Width: 7"
Depth: 11.5"
Weight (Approximate): 4.20 lb
