Product Description

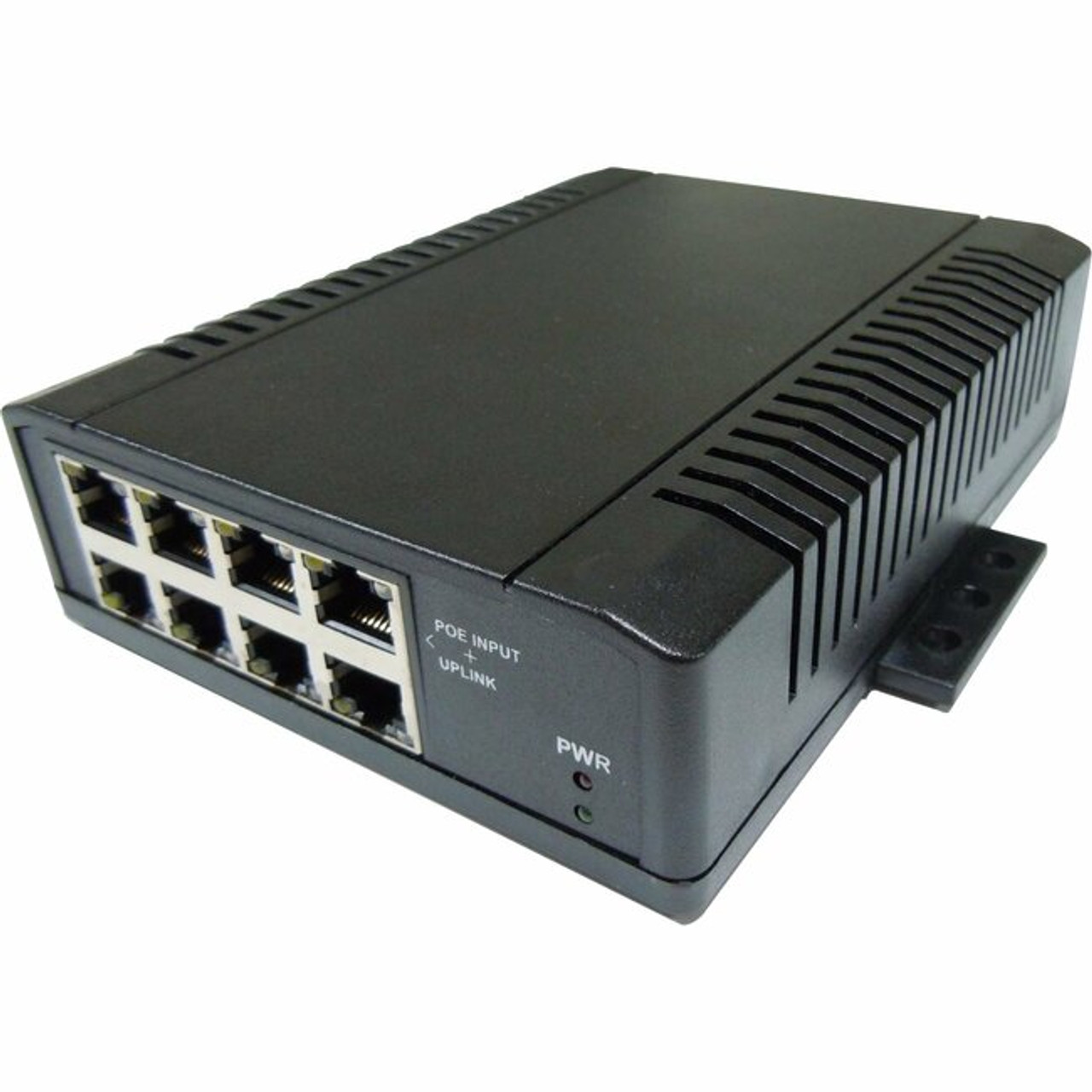

Tycon Power PoE 8 Port Switch - TP-SW8-NC
Specifications
Manufacturer: Tycon Power Systems
Manufacturer Part Number: TP-SW8-NC
Manufacturer Website Address: http://www.tyconpower.com
Brand Name: Tycon Power
Product Series: TP-SW8
Product Model: TP-SW8-NC
Product Name: PoE 8 Port Switch
Marketing Information: The TP-SW8-D Power Over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power Systems is a fully automatic high speed 8 port Ethernet switch. The -NC version is a non compliant model for devices which are not 802.3af/at compliant. On the -NC version the PoE output voltage = the input voltage so it is universal in its application. The DC input power range can be from 12V to 57V. The units can be powered via PoE to port 8 (2A max). Both models supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
18V, 24V and 48V 60W, 120W and 180W power supplies are available. There are 2 power inputs for attachment of primary and backup power sources.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Modular: No
Stack Port: No
Port/Expansion Slot Details:
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
Power Source: PoE
Physical Characteristics
Form Factor: Rail-mountable
Height: 1.6"
Width: 4.6"
Depth: 6.3"
Weight (Approximate): 15.87 oz
Manufacturer: Tycon Power Systems
Manufacturer Part Number: TP-SW8-NC
Manufacturer Website Address: http://www.tyconpower.com
Brand Name: Tycon Power
Product Series: TP-SW8
Product Model: TP-SW8-NC
Product Name: PoE 8 Port Switch
Marketing Information: The TP-SW8-D Power Over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power Systems is a fully automatic high speed 8 port Ethernet switch. The -NC version is a non compliant model for devices which are not 802.3af/at compliant. On the -NC version the PoE output voltage = the input voltage so it is universal in its application. The DC input power range can be from 12V to 57V. The units can be powered via PoE to port 8 (2A max). Both models supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
18V, 24V and 48V 60W, 120W and 180W power supplies are available. There are 2 power inputs for attachment of primary and backup power sources.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Modular: No
Stack Port: No
Port/Expansion Slot Details:
- 7 x Fast Ethernet Network
- 1 x Fast Ethernet Uplink
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
Power Source: PoE
Physical Characteristics
Form Factor: Rail-mountable
Height: 1.6"
Width: 4.6"
Depth: 6.3"
Weight (Approximate): 15.87 oz
