Product Description

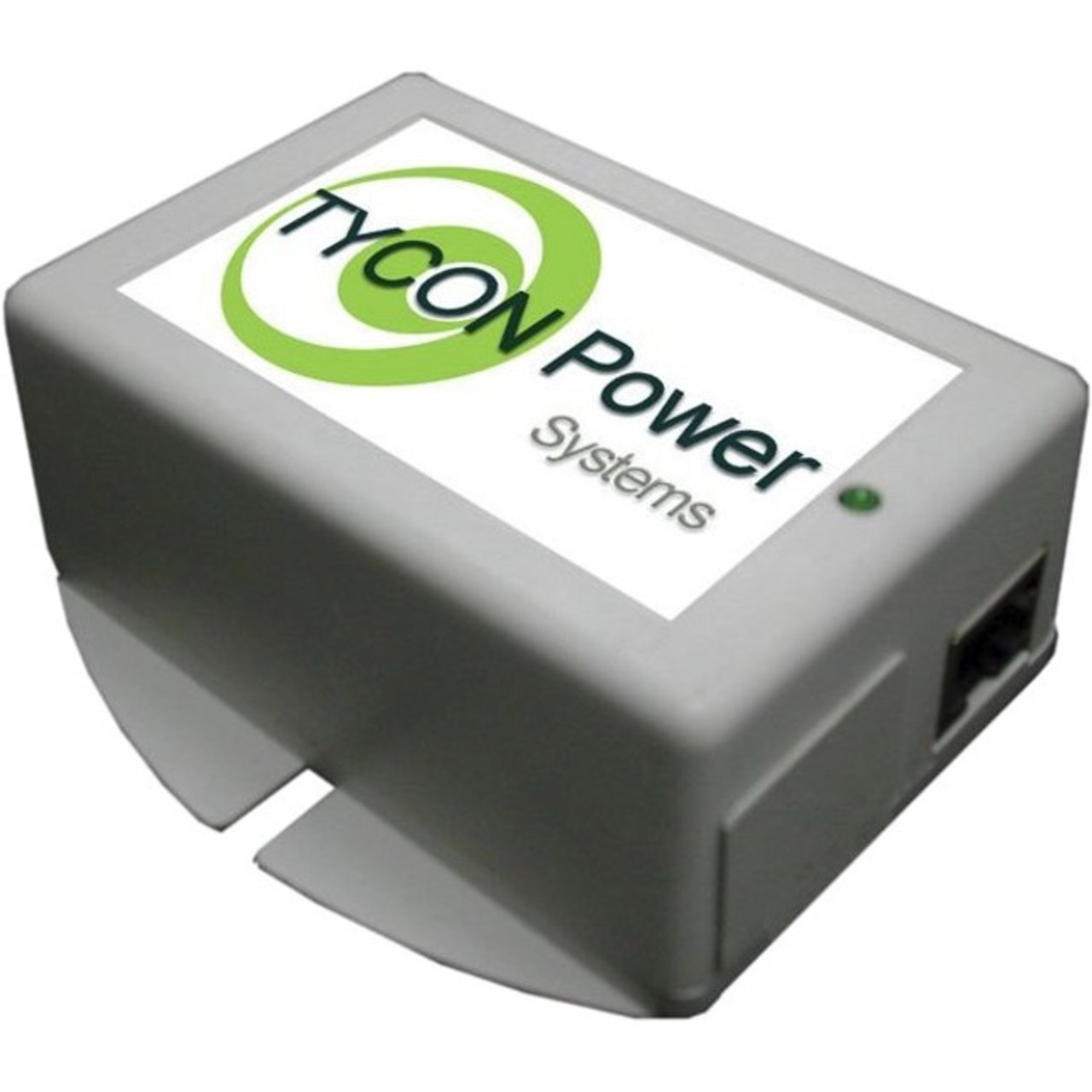

Tycon Power Passive POE to 802.3af /at Converter - TP-POE-2456D
Specifications
Manufacturer: Tycon Power Systems
Manufacturer Part Number: TP-POE-2456D
Manufacturer Website Address: http://www.tyconpower.com
Brand Name: Tycon Power
Product Name: Passive POE to 802.3af /at Converter
Marketing Information:
Product Type: PoE Injector
Technical Information
Protection Type:
Power Description
Input Voltage: 24 V DC
Maximum Output Voltage: 56 V DC
Maximum Output Power: 35 W
Physical Characteristics
Height: 1.4"
Width: 3"
Length: 3.3"
Weight (Approximate): 5.29 oz
Miscellaneous
Compatibility:
Manufacturer: Tycon Power Systems
Manufacturer Part Number: TP-POE-2456D
Manufacturer Website Address: http://www.tyconpower.com
Brand Name: Tycon Power
Product Name: Passive POE to 802.3af /at Converter
Marketing Information:
The TP-POE-2456D is a unique Power Over Ethernet adapter which converts a 24VDC passive POE input to an 802.3af/at 56VDC POE output. The only connections required are CAT5/6 cables. The IEEE 802.3af/at compliant POE output is capable of up to 35W power output. The POE input is 22V to 36VDC passive POE so the TP-POE-2456D is perfect for running IP POE Cameras or other POE devices from passive POE switches like the Tycon TP-SW5G-NC/TP-SW8-NC or Ubiquiti TOUGH Switch™.
The units supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet).
They have various protections for surge, short circuit, overload and overvoltage.
Product Type: PoE Injector
Technical Information
Protection Type:
- Overload Protection
- Over Voltage
- Short Circuit
Power Description
Input Voltage: 24 V DC
Maximum Output Voltage: 56 V DC
Maximum Output Power: 35 W
Physical Characteristics
Height: 1.4"
Width: 3"
Length: 3.3"
Weight (Approximate): 5.29 oz
Miscellaneous
Compatibility:
- Wireless Access Points
- Client Devices
- IP Phone
- Security Camera Systems
- TP-SW5G-NC
- TP-SW8-NC
- TOUGH Switch
