Product Description

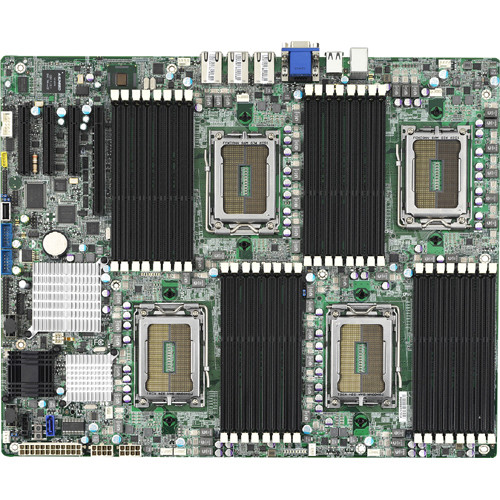

Tyan S8812WGM3NR Server Motherboard - AMD Chipset - Socket G34 LGA-1944 - S8812WGM3NR
Specifications
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: S8812WGM3NR
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Series: S8812
Product Model: S8812WGM3NR
Product Name: S8812 Series S8812WGM3NR Server Motherboard
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Total Processor Supported: 4
Processor Socket: Socket G34 LGA-1944
Processor Supported:
Memory
Number of Memory Slots: 32
Maximum Memory: 256 GB
Memory Speed Supported:
Memory Standard:
Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type:
RAID Supported: Yes
RAID Levels:
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2050
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 4
Number of PCI Express x8 Slots: 3
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
VGA: Yes
Onboard Interfaces
Number of SATA Interfaces: 1
Number of SAS Interfaces: 2
Total Number of Onboard USB Ports: 4
Physical Characteristics
Form Factor: SSI MEB
Width: 16.2"
Depth: 13"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: S8812WGM3NR
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Series: S8812
Product Model: S8812WGM3NR
Product Name: S8812 Series S8812WGM3NR Server Motherboard
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Total Processor Supported: 4
Processor Socket: Socket G34 LGA-1944
Processor Supported:
- Opteron Dodeca-core
- Opteron Octa-core
Memory
Number of Memory Slots: 32
Maximum Memory: 256 GB
Memory Speed Supported:
- 1.33 GHz
- 1.07 GHz
- 800 MHz
Memory Standard:
- DDR3-1333/PC3-10600
- DDR3-1066/PC3-8500
- DDR3-800/PC3-6400
Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type:
- Serial Attached SCSI (SAS)
- Serial ATA/300
RAID Supported: Yes
RAID Levels:
- 0
- 1
- 5
- 1+0
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2050
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 4
Number of PCI Express x8 Slots: 3
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
VGA: Yes
Onboard Interfaces
Number of SATA Interfaces: 1
Number of SAS Interfaces: 2
Total Number of Onboard USB Ports: 4
Physical Characteristics
Form Factor: SSI MEB
Width: 16.2"
Depth: 13"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
