Product Description

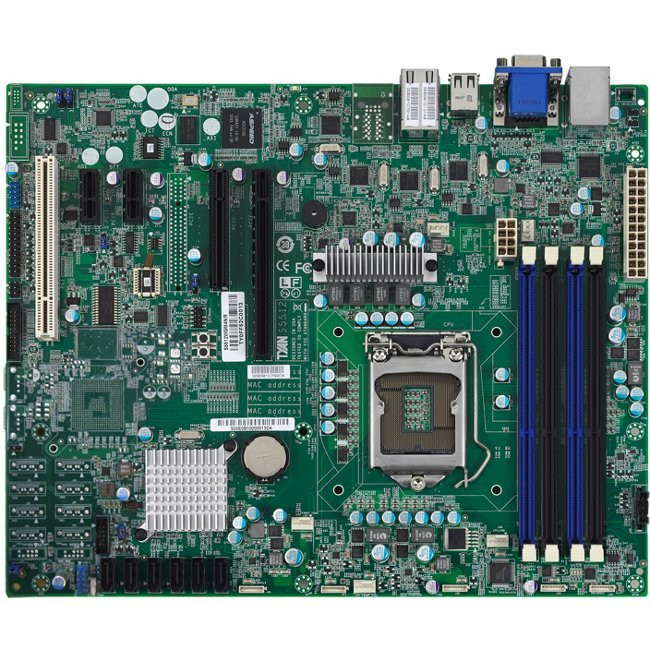

Tyan S5512-LE Server Motherboard - Intel Chipset - Socket H2 LGA-1155 - S5512G2NRLE
Specifications
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: S5512G2NRLE
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Model: S5512-LE
Product Name: S5512-LE Server Motherboard
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H2 LGA-1155
Processor Supported:
Memory
Number of Memory Slots: 4
Memory Form Factor:
Maximum Memory: 32 GB
Memory Speed Supported:
Memory Standard:
Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type: Serial ATA/300
RAID Supported: Yes
RAID Levels:
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2150-GP-V
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
VGA: Yes
Number of Network (RJ-45) Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: S5512G2NRLE
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Model: S5512-LE
Product Name: S5512-LE Server Motherboard
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H2 LGA-1155
Processor Supported:
- Xeon
- Core i3
Memory
Number of Memory Slots: 4
Memory Form Factor:
- DIMM
- UDIMM
Maximum Memory: 32 GB
Memory Speed Supported:
- 1.33 GHz
- 1.07 GHz
Memory Standard:
- DDR3-1333/PC3-10600
- DDR3-1066/PC3-8500
Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type: Serial ATA/300
RAID Supported: Yes
RAID Levels:
- 0
- 1
- 5
- 1+0
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2150-GP-V
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
VGA: Yes
Number of Network (RJ-45) Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- RoHS-6
- WEEE
- China RoHS
