  • Tyan S5397T26W8H

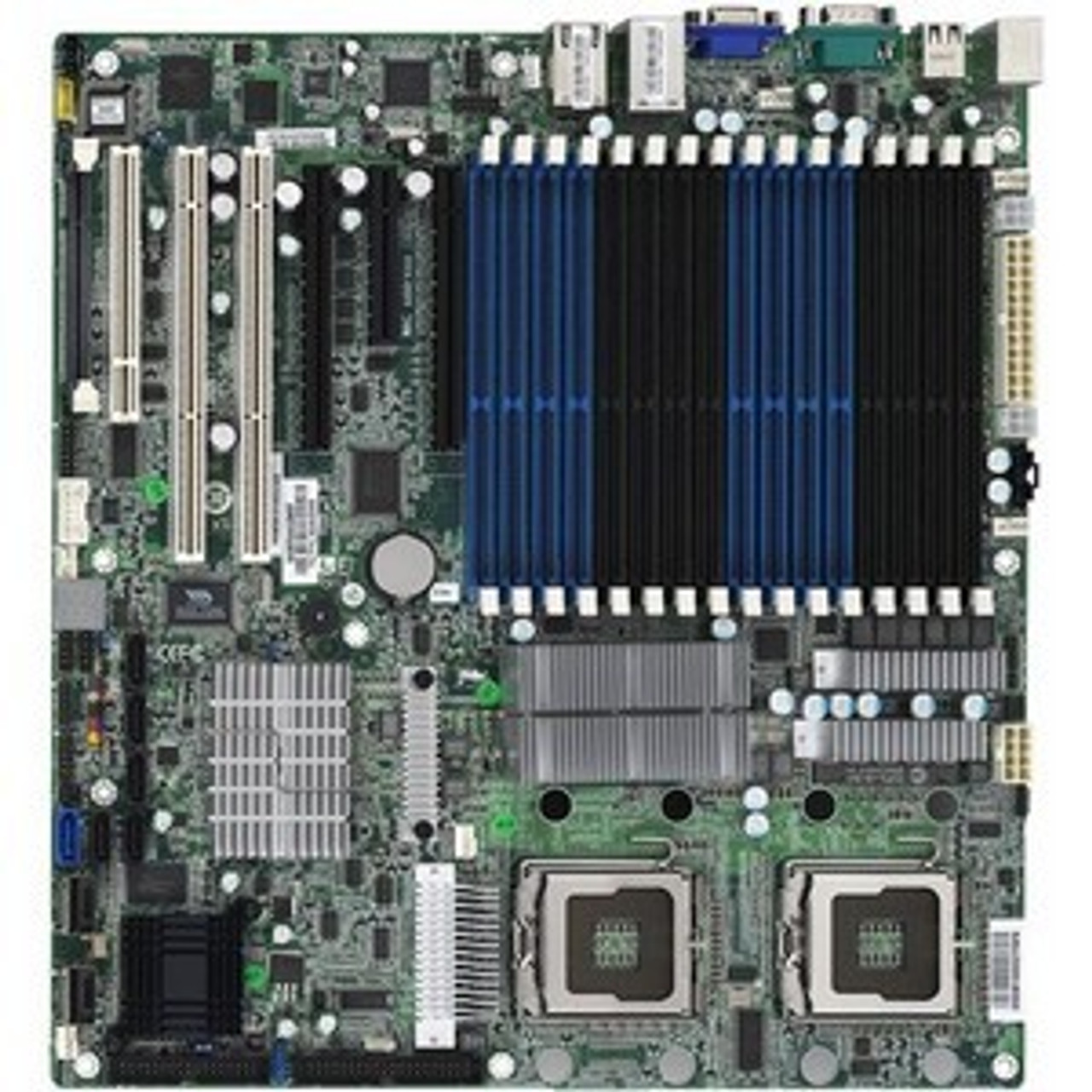

    • Tyan Tempest (S5397) Server Motherboard - Intel Chipset - Socket J LGA-771 - S5397T26W8H

    (No reviews yet) Write a Review
    BRAND:
    Part Number #
    S5397T26W8H
    Availability:
    In Stock
    MSRP: $2,402.00
    $1,876.56
    (You save $525.44 )
    Don't like the price? Make an offer!
    Get bulk pricing

    Product Description

    Tyan Tempest (S5397) Server Motherboard - Intel Chipset - Socket J LGA-771 - S5397T26W8H

    Specifications
    Manufacturer: Tyan Computer Corp
    Manufacturer Part Number: S5397T26W8H
    Manufacturer Website Address: http://www.tyan.com
    Brand Name: Tyan
    Product Line: Tempest
    Product Series: i5400PW
    Product Model: (S5397)
    Product Name: Tempest i5400PW (S5397) Server Motherboard
    Marketing Information:

    The latest Tyan DP server platform supports the 45nm Quad-Core Xeon 5400 series processors and the 5400 chipset (Seaburg). The Tempest i5400PW S5397 is an excellent solution for running memory intensive server applications and HPC needs.


    Product Type: Server Motherboard
    Processor & Chipset
    Chipset Manufacturer: Intel
    Total Processor Supported: 2
    Processor Socket: Socket J LGA-771
    Processor Supported:
    • Xeon Quad-core
    • Xeon Dual-Core

    Memory
    Number of Memory Slots: 16
    Maximum Memory: 128 GB
    Memory Speed Supported:
    • 800 MHz
    • 667 MHz
    • 533 MHz

    Memory Standard:
    • DDR2-800/PC2-6400
    • DDR2-667/PC2-5300
    • DDR2-533/PC2-4200

    Memory Technology: DDR2 SDRAM
    I/O Controller
    Controller Type:
    • Floppy Controller
    • Serial Attached SCSI (SAS)
    • Serial ATA/300
    • Ultra ATA

    RAID Supported: Yes
    RAID Levels:
    • 0
    • 1
    • 5
    • 1+0

    Video
    Onboard Video: On-board Video Chipset
    Graphics Controller Manufacturer: XGI
    Graphics Controller Model: Z9S
    Network & Communication
    Gigabit Ethernet: Yes
    I/O Expansions
    Number of Total Expansion Slots: 6
    Total Number of PCI Express Slots: 3
    Number of PCI Express x8 Slots: 1
    Number of PCI Express x16 Slots: 2
    Interfaces/Ports
    Total Number of USB Ports: 2
    Number of USB 2.0 Ports: 2
    VGA: Yes
    Onboard Interfaces
    Number of SATA Interfaces: 6
    Number of SAS Interfaces: 2
    Total Number of Onboard USB Ports: 1
    Physical Characteristics
    Form Factor: Extended ATX
    Width: 12"
    Depth: 13"
