Product Description

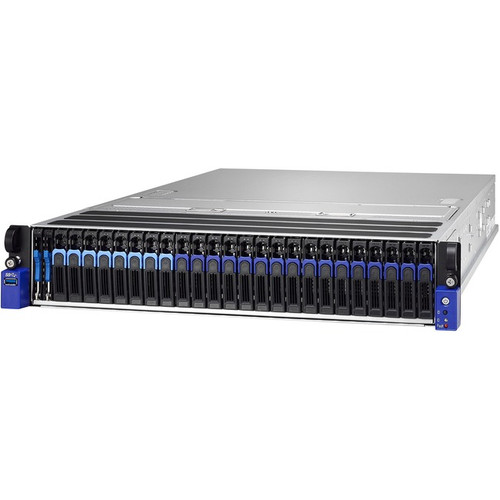

Tyan Transport HX TN76A-B8242 Barebone System - 2U Rack-mountable - AMD - Socket SP3 - 2 x Support - B8242T76AV18E8HR-2V
Specifications
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: B8242T76AV18E8HR-2V
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Line: Transport HX
Product Model: TN76A-B8242
Product Name: Transport SX TN76AB8242 (B8242T76AV18E8HR-2V)
Product Type: Barebone System
Processor & Chipset
Number of Processors Supported: 2
Processor Socket: Socket SP3
Processor Supported: EPYC
64-bit Processing: Yes
Chipset Manufacturer: AMD
Memory
Maximum Memory: 4 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Number of Total Memory Slots: 32
Controllers
Controller Type: Serial ATA/600
RAID Supported: No
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Graphics Memory Capacity: 32 MB
Network & Communication
Ethernet Technology:
I/O Expansions
Number of Total Expansion Bays: 26
Number of Internal 2.5" Bays: 26
Number of Total Expansion Slots: 8
Number of PCI Express x8 Slots: 6
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 3
Number of USB 3.0 Ports: 3
Software
Operating System Supported:
Power Description
Input Voltage: 230 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 2400 W
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.5"
Width: 17.2"
Depth: 30.1"
Weight (Approximate): 41.89 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: B8242T76AV18E8HR-2V
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Line: Transport HX
Product Model: TN76A-B8242
Product Name: Transport SX TN76AB8242 (B8242T76AV18E8HR-2V)
Product Type: Barebone System
Processor & Chipset
Number of Processors Supported: 2
Processor Socket: Socket SP3
Processor Supported: EPYC
64-bit Processing: Yes
Chipset Manufacturer: AMD
Memory
Maximum Memory: 4 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Number of Total Memory Slots: 32
Controllers
Controller Type: Serial ATA/600
RAID Supported: No
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Graphics Memory Capacity: 32 MB
Network & Communication
Ethernet Technology:
- 25 Gigabit Ethernet
- Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 26
Number of Internal 2.5" Bays: 26
Number of Total Expansion Slots: 8
Number of PCI Express x8 Slots: 6
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 3
Number of USB 3.0 Ports: 3
Software
Operating System Supported:
- Windows Server 2016 Standard x64
- Red Hat Enterprise linux 7.4 x64
- SUSE Linux Enterprise Server 12
- Ubuntu 17.10.1 x64
- Red Hat Enterprise linux 7.5 x64
Power Description
Input Voltage: 230 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 2400 W
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.5"
Width: 17.2"
Depth: 30.1"
Weight (Approximate): 41.89 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
