Product Description

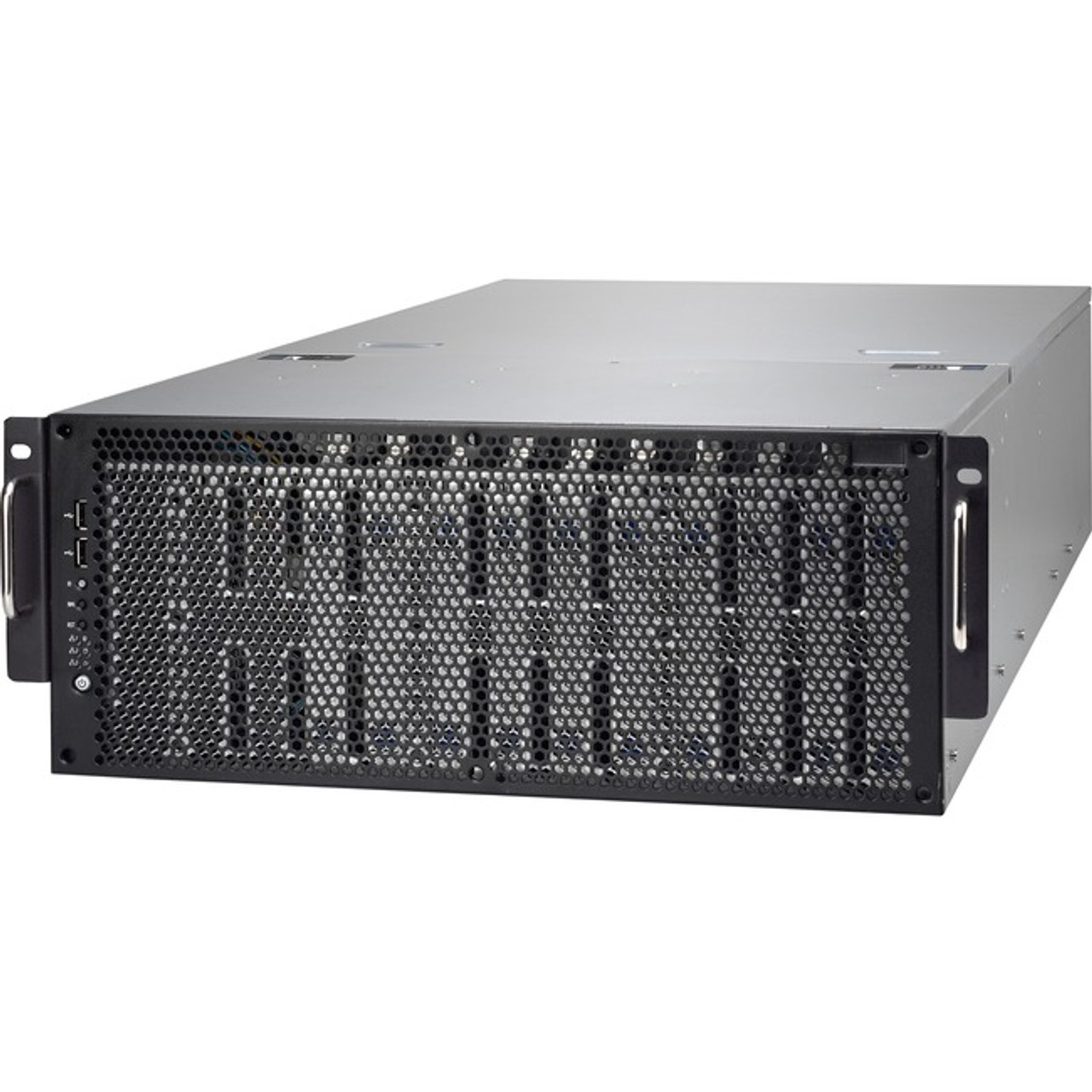

Tyan FT77BB7059 Barebone System - 4U Rack-mountable - Intel C602 Chipset - Socket R LGA-2011 - 2 x - B7059F77BV10R
Specifications
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: B7059F77BV10R
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Model: FT77BB7059
Product Name: FT77BB7059 Barebone System
Marketing Information: Bring your enterprise to the future of server technology! TYAN server solutions offer industry-leading form factors and the features required to build best-in-class server systems to meet your requirements. Aggressively-priced and specifically-engineered for a wide range of applications, TYAN barebones servers and server chassis enclosures provide OEMs, VARs and S/Is with simplified, cost-effective components and solutions for building robust, feature-rich servers.
Product Type: Barebone System
Processor & Chipset
Number of Processors Supported: 2
Processor Socket: Socket R LGA-2011
Processor Supported: Xeon
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C602
Memory
Maximum Memory: 768 GB
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1866/PC3-14900
Number of Total Memory Slots: 24
Controllers
Controller Type:
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2300
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 10
Number of 3.5" Bays: 10
Number of Total Expansion Slots: 14
Number of PCI Slots: 1
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 8
Interfaces/Ports
Total Number of USB Ports: 4
Number of SATA Interfaces: 10
Number of SAS Interfaces: 8
Power Description
Input Voltage:
Number of Power Supplies Installed: 3
Maximum Power Supply Wattage: 3200 W
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 4U
Height: 6.9"
Width: 17.2"
Depth: 30.3"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: B7059F77BV10R
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Model: FT77BB7059
Product Name: FT77BB7059 Barebone System
Marketing Information: Bring your enterprise to the future of server technology! TYAN server solutions offer industry-leading form factors and the features required to build best-in-class server systems to meet your requirements. Aggressively-priced and specifically-engineered for a wide range of applications, TYAN barebones servers and server chassis enclosures provide OEMs, VARs and S/Is with simplified, cost-effective components and solutions for building robust, feature-rich servers.
Product Type: Barebone System
Processor & Chipset
Number of Processors Supported: 2
Processor Socket: Socket R LGA-2011
Processor Supported: Xeon
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C602
Memory
Maximum Memory: 768 GB
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1866/PC3-14900
Number of Total Memory Slots: 24
Controllers
Controller Type:
- Serial ATA/600
- Serial Attached SCSI (SAS)
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2300
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 10
Number of 3.5" Bays: 10
Number of Total Expansion Slots: 14
Number of PCI Slots: 1
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 8
Interfaces/Ports
Total Number of USB Ports: 4
Number of SATA Interfaces: 10
Number of SAS Interfaces: 8
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Number of Power Supplies Installed: 3
Maximum Power Supply Wattage: 3200 W
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 4U
Height: 6.9"
Width: 17.2"
Depth: 30.3"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
