Product Description

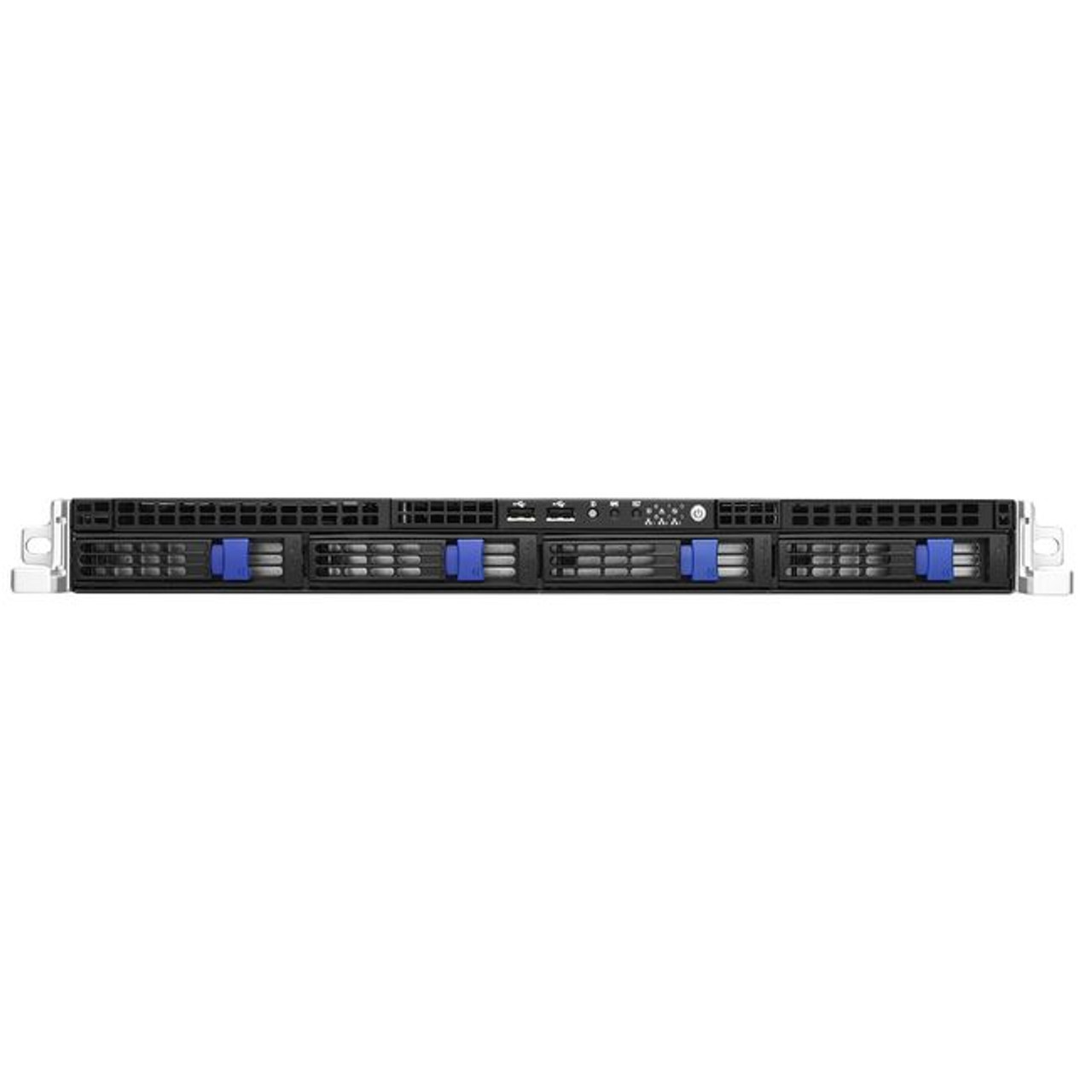

Tyan GT20 (B7002) Barebone System - B7002G20V4H
Specifications
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: B7002G20V4H
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Series: GT20
Product Model: GT20 (B7002)
Product Name: GT20 (B7002) Barebone System
Marketing Information:
Product Type: Barebone System
Processor & Chipset
Number of Processors Supported: 2
Processor Socket: Socket B LGA-1366
Processor Supported: Xeon
Chipset Manufacturer: Intel
Chipset Model: 5500
Memory
Maximum Memory: 64 GB
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1333/PC3-10600
Number of Total Memory Slots: 8
Controllers
Controller Type: Serial ATA/300
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2050
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 4
Number of 3.5" Bays: 4
Number of Total Expansion Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 6
Power Description
Input Voltage:
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 400 W
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.7"
Width: 17.2"
Depth: 22.4"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: B7002G20V4H
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Series: GT20
Product Model: GT20 (B7002)
Product Name: GT20 (B7002) Barebone System
Marketing Information:
The hottest 1U DP server platform features Intel Xeon processor within providing greatest cost benefit to various applications. Tyan GT20-B7002 supports up to 64GB DDR3 RDIMM memory, (4) 3.5" hot-swap SATA-II HDDs, (2) GbE, (1) full-sized, true PCI-E Gen.2 x16 slot, and onboard IPMI with iKVM features. This system is perfectly fit for general file/print services, web-hosting, data center, search engines, virtualization, and workgroup HPC applications.
Product Type: Barebone System
Processor & Chipset
Number of Processors Supported: 2
Processor Socket: Socket B LGA-1366
Processor Supported: Xeon
Chipset Manufacturer: Intel
Chipset Model: 5500
Memory
Maximum Memory: 64 GB
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1333/PC3-10600
Number of Total Memory Slots: 8
Controllers
Controller Type: Serial ATA/300
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2050
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 4
Number of 3.5" Bays: 4
Number of Total Expansion Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 6
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 400 W
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.7"
Width: 17.2"
Depth: 22.4"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
