Product Description

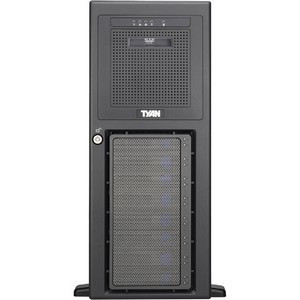

Tyan Transport FT48 (B4985) Barebone System - B4985F48V8HR
Specifications
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: B4985F48V8HR
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Line: Transport
Product Series: FT48
Product Model: FT48 (B4985)
Product Name: Transport FT48 (B4985) Barebone System
Marketing Information:
Product Type: Barebone System
Processor & Chipset
Number of Processors Supported: 4
Processor Socket: Socket F LGA-1207
Processor Supported: Opteron
Chipset Manufacturer: NVIDIA
Chipset Model: nForce Pro 2200
Memory
Maximum Memory: 64 GB
Memory Technology: DDR2 SDRAM
Memory Standard: DDR2-667/PC2-5300
Number of Total Memory Slots: 16
Storage
Optical Drive Type: DVD-Reader
Controllers
Controller Type: Serial ATA/300
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: XGI
Graphics Controller Model: Volari Z7 (XG20)
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 8
Number of 3.5" Bays: 8
Number of Total Expansion Slots: 5
Number of PCI Slots: 1
Number of PCI Express x16 Slots: 4
Interfaces/Ports
Total Number of USB Ports: 4
Power Description
Input Voltage:
Number of Power Supplies Installed: 3
Maximum Power Supply Wattage: 3420 W
Physical Characteristics
Form Factor: Tower
Rack Height: 4U
Height: 6.9"
Width: 16.8"
Depth: 27.6"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: B4985F48V8HR
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Line: Transport
Product Series: FT48
Product Model: FT48 (B4985)
Product Name: Transport FT48 (B4985) Barebone System
Marketing Information:
Convertible into a 4U rack mount or full-size tower, the Transport FT48 (B4985) Barebone System offers AMD Next-Generation Multi-Core technology, eight (8) SATA2/SAS drive bays, three (3) gigabit ethernet ports, redundant power features, remote management, multiple PCI Express x16 slot support and more.
Product Type: Barebone System
Processor & Chipset
Number of Processors Supported: 4
Processor Socket: Socket F LGA-1207
Processor Supported: Opteron
Chipset Manufacturer: NVIDIA
Chipset Model: nForce Pro 2200
Memory
Maximum Memory: 64 GB
Memory Technology: DDR2 SDRAM
Memory Standard: DDR2-667/PC2-5300
Number of Total Memory Slots: 16
Storage
Optical Drive Type: DVD-Reader
Controllers
Controller Type: Serial ATA/300
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: XGI
Graphics Controller Model: Volari Z7 (XG20)
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 8
Number of 3.5" Bays: 8
Number of Total Expansion Slots: 5
Number of PCI Slots: 1
Number of PCI Express x16 Slots: 4
Interfaces/Ports
Total Number of USB Ports: 4
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Number of Power Supplies Installed: 3
Maximum Power Supply Wattage: 3420 W
Physical Characteristics
Form Factor: Tower
Rack Height: 4U
Height: 6.9"
Width: 16.8"
Depth: 27.6"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
