Product Description

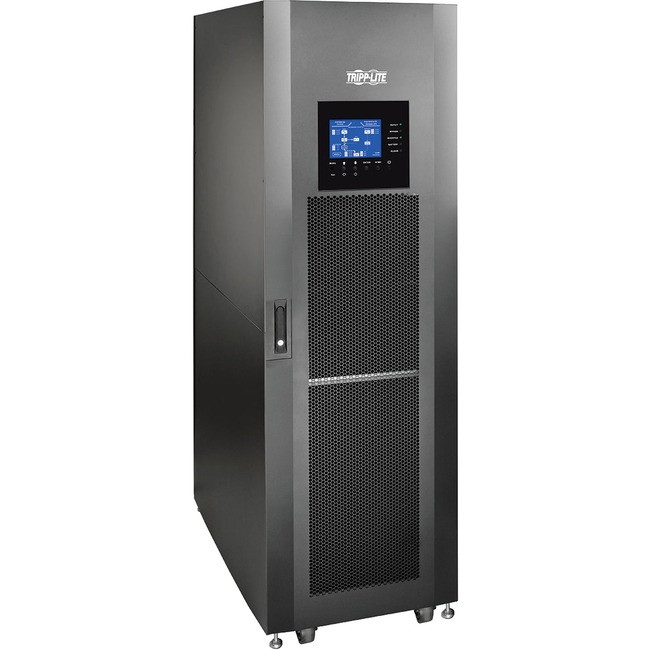

Tripp Lite 20kVA Smart Online 3-Phase UPS Medium Frame Modular 1 Battery - SV20KM1P1B
Manufacturer: Tripp Lite
Manufacturer Part Number: SV20KM1P1B
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Line: SmartOnline
Product Series: SV
Product Model: SV20KM1P3B
Product Name: SmartOnline SV20KM1P1B 20kVA Tower UPS
Marketing Information:
The SV20KM1P1B SmartOnline® SV Series 20kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.
The SV20KM1P1B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), one 20kVA SV20PM power module and one SVBM battery module. Space is included for up to three additional user-installable SV20PM power modules and three SVBM internal battery modules. External ±120VDC battery options, such as BP240V370, are also available from Tripp Lite for even more extended runtime.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.
With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 20kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting.
Product Type: Dual Conversion Online UPS
Technical Information
Plug/Connector Type: Hardwired
Receptacles: Hardwired
Power Description
Load Capacity: 20 kVA/18 kW
Input Voltage:
- 120 V AC
- 230 V AC
Output Voltage:
- 120 V AC
- 230 V AC
Management
Network Management:
- SNMP Manageable
- SSH
- Telnet
Battery Information
Backup/Run Time (Full Load): 3.90 Minute
Backup/Run Time (Half Load): 8 Minute
Physical Characteristics
Form Factor: Tower
Height: 79.1"
Width: 23.6"
Depth: 43.3"
Weight (Approximate): 909.01 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
