Product Description
Tripp Lite 16kVA Smart Online UPS 14.4kW 120V 208/240V N+1 14URM TAA - SU16KRT-1TFTAA
Manufacturer: Tripp Lite
Manufacturer Part Number: SU16KRT-1TFTAA
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Line: SmartOnline
Product Model: SU16KRT-1TFTAA

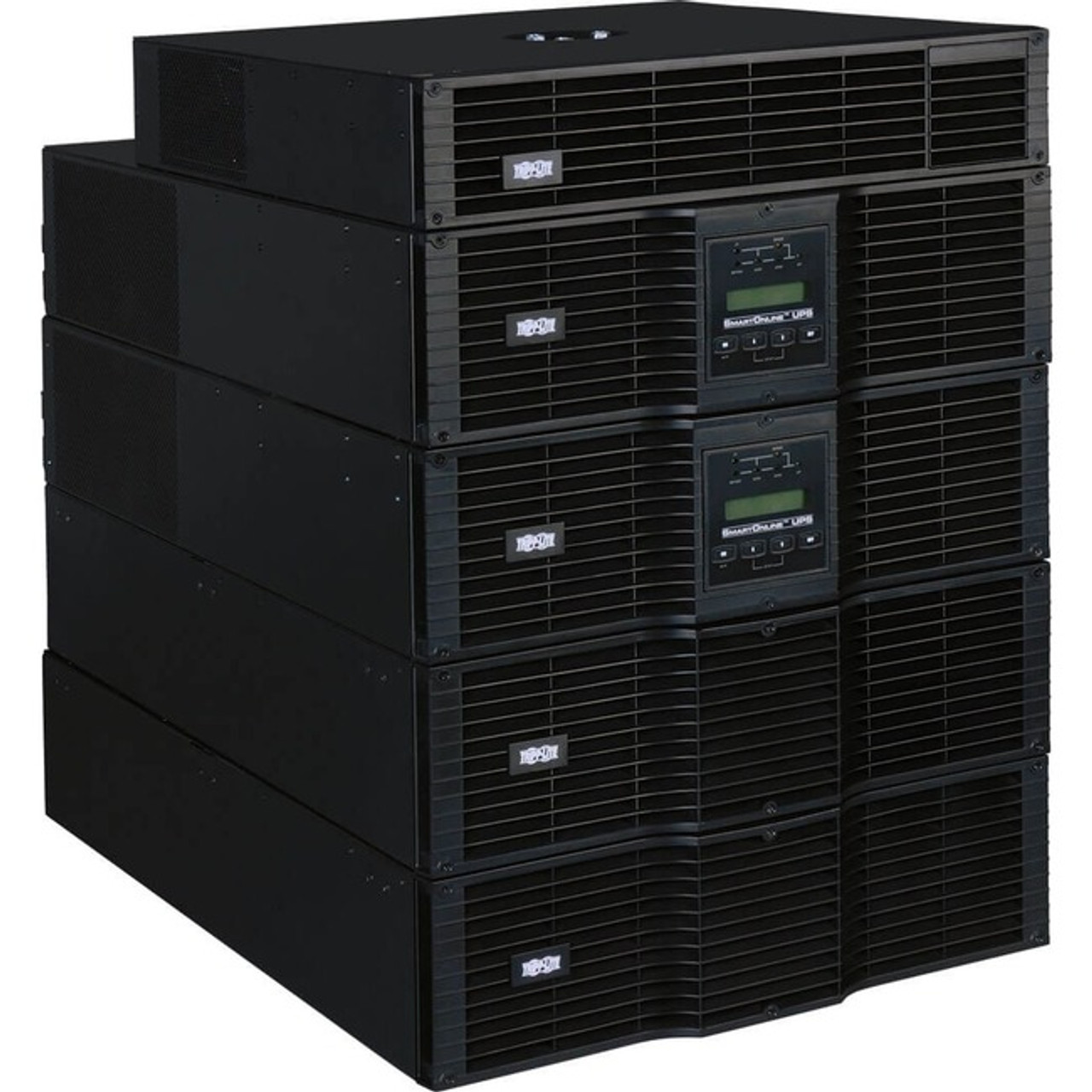

Product Name: SmartOnline SU16KRT-1TFTAA 16kVA Rack-mountable UPS
Marketing Information:
Features
Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data Loss
This TAA-compliant UPS system protects connected equipment against damage, downtime and data loss due to power outages, voltage fluctuations and transient surges. Featuring a 14,400W capacity, high 0.9 power factor, true on-line operation with pure sine wave output and zero transfer time to battery, the SmartOnline® SU16KRT-1TFTAA includes two 3U UPS power modules, two 3U external battery packs, a 2U step-down transformer and a parallel PDU with maintenance switch. Using the step-down transformer, the N+1 UPS system can support both low- and high-voltage equipment.
The Complete Power Protection Solution for Advanced Networking Applications
Recommended for data centers, computer rooms, network closets and other areas with mission-critical equipment, the SU16KRT-1TFTAA actively converts raw incoming AC power to DC and then re-converts it back to regulated, filtered AC output with a pure sine wave, completely isolating connected components from all power problems. It features a 3-wire single-phase hardwire input (3-wire, single phase) and 22 total outlets-two NEMA L6-30R (208/240V), eight C19 (208/240V), eight NEMA 5-15/20R (120V) and four NEMA 5-15R (120V).
External Batteries Supply Reliable Backup with Expandable Runtime Options
UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The external battery packs provide 13.5 minutes of support at half load and 5.5 minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so backup power will be available when needed. For mission-critical applications demanding continuous uptime, the 16kVA UPS can provide expandable runtime with optional external battery packs, such as Tripp Lite's field-replaceable, hot-swappable BP240V10RT3UTAA. A battery-independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries.
Easily Hot-Swappable to Avoid Expensive Service Calls and Downtime
With its parallel PDU, the SU16KRT-1TFTAA with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. It offers automatic N+1 redundancy at load levels up to 8kVA and non-redundant operation from 8kVA all the way up to 16kVA. In bypass mode, the PDU passes power to equipment without the use of the power and battery modules, allowing them to be removed while keeping your application in operation. When making repairs or replacing a battery, no lengthy service calls or downtime are necessary.
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
Front-panel LEDs indicate line power, online mode, bypass mode, on-battery, charger and AC output status at a glance. The LCD readout with scroll controls supports visual monitoring of a variety of control options to support advanced UPS settings and configurations. The panel rotates for comfortable viewing in rack-mount or tower configuration.
Product Type: Dual Conversion Online UPS
Technical Information
AVR: Yes
Plug/Connector Type: Hard Wire 3-wire (2PH + G)
Receptacles:
- 8 x IEC 60320 C19
- 2 x NEMA L6-30R
- 8 x NEMA 5-15/20R
- 4 x NEMA 5-15R
Power Description
Load Capacity: 16 kVA/14.40 kW
Input Voltage: 230 V AC
Input Voltage Range: 208 V AC - 240 V AC
Output Voltage:
- 120 V AC
- 208 V AC
- 240 V AC
Management
Network Management: SNMP/HTTP Remote Monitoring
Battery Information
Backup/Run Time (Full Load): 5.50 Minute
Backup/Run Time (Half Load): 13.50 Minute
Typical Battery Recharge Time: 6 Hour
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 14U
Height: 5.2"
Width: 17.5"
Depth: 25.8"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
TAA Compliant: Yes
