Product Description

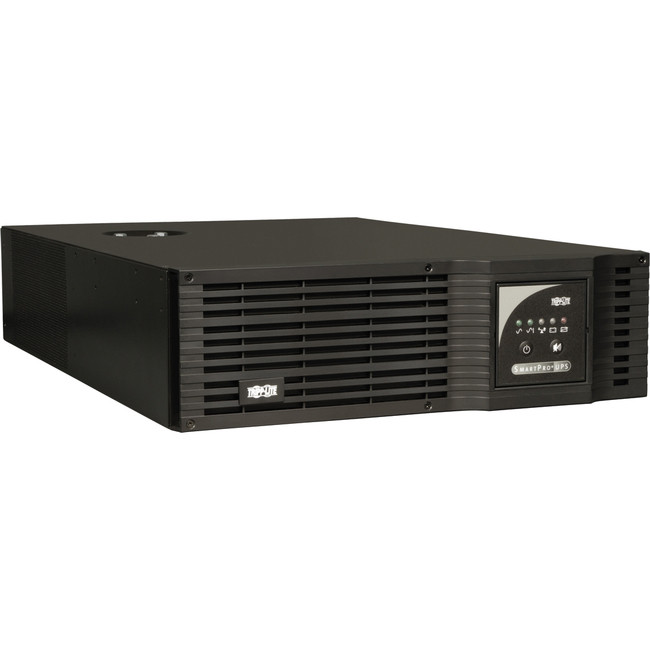

Tripp Lite UPS Smart 5000VA 3750W Rackmount AVR 208V Pure Sign Wave 5kVA USB DB9 3URM - SMART5000TEL3U
Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: SMART5000TEL3U
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Line: SmartPro
Product Model: SMART5000TEL3U
Product Name: SmartPro SMART5000TEL3U 5000VA Tower/Rack-mountable UPS
Marketing Information: Tripp Lite's SMART5000TEL3U intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rackmount housing. Completely self-contained UPS system occupies only 3 rack spaces (3U) in a standard 19 inch rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4 post rack enclosures. Large capacity 5000 VA/3750 watt UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets support up to 600VA monitors and other low voltage accessories. Includes slot for internal Network Management Card option. Includes USB and 2 DB9 monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high current 20 and 30 amp 208V connectors and up to two 120V devices (max 600VA at 120V).
Product Type: Line-interactive UPS
Technical Information
Plug/Connector Type: NEMA L6-30P
Receptacles:
Transfer Time: 8 ms
Power Description
Load Capacity: 5000 VA/3750 W
Input Voltage: 208 V AC
Output Voltage: 208 V AC
Battery Information
Backup/Run Time (Full Load): 10 Minute
Typical Battery Recharge Time: 4 Hour
Physical Characteristics
Height: 5.3"
Width: 17.5"
Depth: 25"
Rack Height: 3U
Form Factor: Rack/Tower
Weight (Approximate): 143.30 lb
Manufacturer: Tripp Lite
Manufacturer Part Number: SMART5000TEL3U
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Line: SmartPro
Product Model: SMART5000TEL3U
Product Name: SmartPro SMART5000TEL3U 5000VA Tower/Rack-mountable UPS
Marketing Information: Tripp Lite's SMART5000TEL3U intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rackmount housing. Completely self-contained UPS system occupies only 3 rack spaces (3U) in a standard 19 inch rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4 post rack enclosures. Large capacity 5000 VA/3750 watt UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets support up to 600VA monitors and other low voltage accessories. Includes slot for internal Network Management Card option. Includes USB and 2 DB9 monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high current 20 and 30 amp 208V connectors and up to two 120V devices (max 600VA at 120V).
Product Type: Line-interactive UPS
Technical Information
Plug/Connector Type: NEMA L6-30P
Receptacles:
- 1 x NEMA L6-30R
- 2 x NEMA L6-20R
- 2 x NEMA 5-15R
Transfer Time: 8 ms
Power Description
Load Capacity: 5000 VA/3750 W
Input Voltage: 208 V AC
Output Voltage: 208 V AC
Battery Information
Backup/Run Time (Full Load): 10 Minute
Typical Battery Recharge Time: 4 Hour
Physical Characteristics
Height: 5.3"
Width: 17.5"
Depth: 25"
Rack Height: 3U
Form Factor: Rack/Tower
Weight (Approximate): 143.30 lb
