Product Description

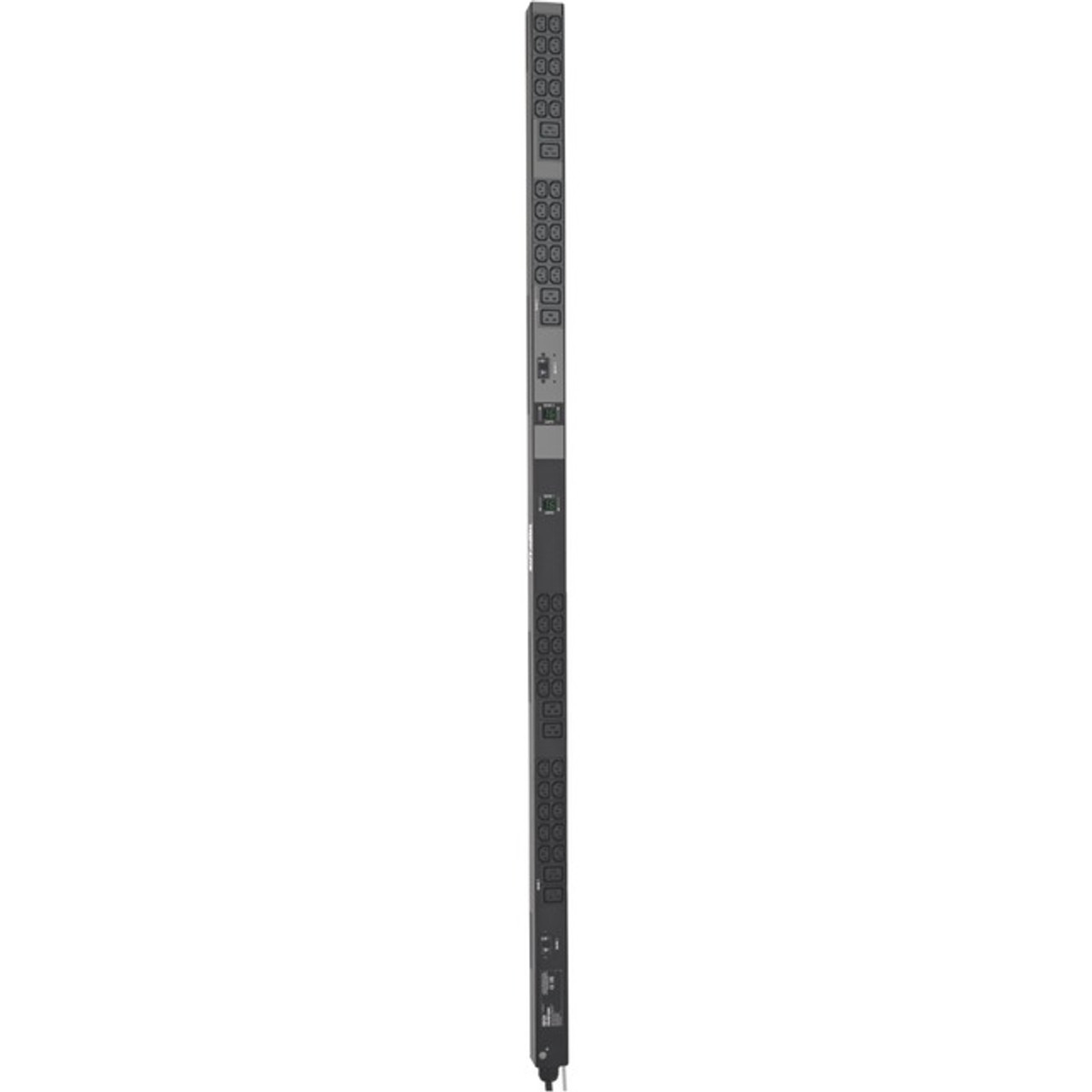

Tripp Lite PDU Metered Vertical 7.4kw 230V 8 C19 40 C13 IEC 309 32A 0U TAA - PDUMV32HV
Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: PDUMV32HV
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Line: Metered
Product Model: PDUMV32HV
Product Name: Metered PDUMV32HV 48-Outlet PDU
Marketing Information: The 70-inch (178-centimeter) PDUMV32HV 32A 230V 7.4kW Single-Phase Metered Power Distribution Unit features 48 outlets for distributing single-phase AC power to rack-mounted equipment, including computers, routers, switches and servers.
Outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13), a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets, breakers and ammeters are color-coded and labeled for easy identification.
An ideal PDU for server rooms, network closets and data centers, the PDUMV32HV's all-metal housing comes ready to mount vertically in your rack using the preinstalled 9 mm buttons or the included hardware. The IEC-309 32A blue input plug with 10-foot (3-meter) cord connects to your facility's compatible AC power source, generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components' plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground.
Product Type: PDU
Technical Information
Input Receptacles: IEC 60309 2P+E
Output Receptacles:
Protection Type: Overload Protection
Power Description
Input Voltage: 230 V AC
Output Voltage: 230 V AC
Power Rating (Watt): 7400 W
Input Current: 32 A
Physical Characteristics
Mounting Orientation: Vertical
Rack Height: 0U
Height: 70"
Width: 2.2"
Depth: 2.5"
Weight (Approximate): 12.35 lb
Manufacturer: Tripp Lite
Manufacturer Part Number: PDUMV32HV
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Line: Metered
Product Model: PDUMV32HV
Product Name: Metered PDUMV32HV 48-Outlet PDU
Marketing Information: The 70-inch (178-centimeter) PDUMV32HV 32A 230V 7.4kW Single-Phase Metered Power Distribution Unit features 48 outlets for distributing single-phase AC power to rack-mounted equipment, including computers, routers, switches and servers.
Outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13), a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets, breakers and ammeters are color-coded and labeled for easy identification.
An ideal PDU for server rooms, network closets and data centers, the PDUMV32HV's all-metal housing comes ready to mount vertically in your rack using the preinstalled 9 mm buttons or the included hardware. The IEC-309 32A blue input plug with 10-foot (3-meter) cord connects to your facility's compatible AC power source, generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components' plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground.
Product Type: PDU
Technical Information
Input Receptacles: IEC 60309 2P+E
Output Receptacles:
- 40 x IEC 60320 C13
- 8 x IEC 60320 C19
Protection Type: Overload Protection
Power Description
Input Voltage: 230 V AC
Output Voltage: 230 V AC
Power Rating (Watt): 7400 W
Input Current: 32 A
Physical Characteristics
Mounting Orientation: Vertical
Rack Height: 0U
Height: 70"
Width: 2.2"
Depth: 2.5"
Weight (Approximate): 12.35 lb
