Product Description

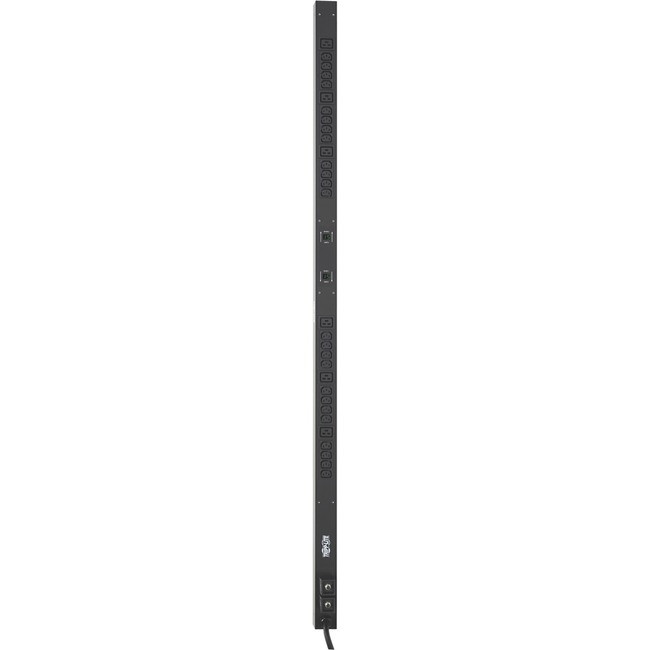

Tripp Lite PDU Metered 208V / 240V 30A 6 C19 24; C13 L6-30P Vertical 0URM - PDUMV30HV
Manufacturer: Tripp Lite
Manufacturer Part Number: PDUMV30HV
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: PDUMV30HV
Product Name: PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
Marketing Information:
PDUMV30HV 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 208/240V. Includes 10 ft attached line cord with L6-30P input plug. 24 C13 and 6 C19 outlets support up to 30 directly connected pieces of networking equipment. Outlets are arranged in two separately metered and breakered 15A load banks (each with 3 C19 and 12 C13 outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power consumption for each of the two built-in loading banks. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.
Product Type: PDU
Technical Information
Input Receptacles: NEMA L6-30P
Output Receptacles:
- 6 x IEC 60320 C19
- 24 x IEC 60320 C13
Protection Type:
- Overload Protection
- Short Circuit Protection
Power Description
Input Voltage: 230 V AC
Input Voltage Range: 208 V AC - 240 V AC
Output Voltage:
- 208 V AC
- 240 V AC
Physical Characteristics
Mounting Orientation: Vertical
Placement:
- Wall
- Rack
Height: 63.8"
Width: 2.3"
Depth: 3.8"
Weight (Approximate): 8 lb
