Product Description

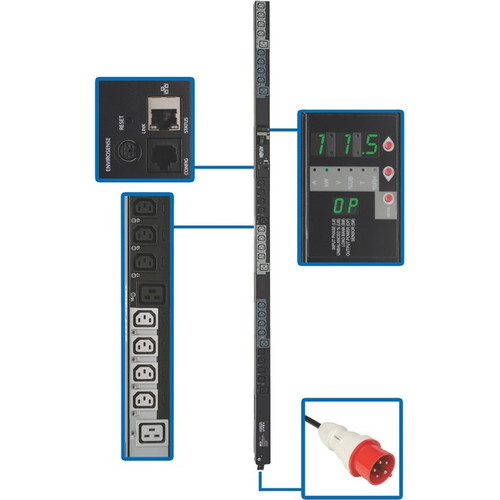

Tripp Lite PDU 3-Phase 200/220/230/240V 11.5kW C13 C19 IEC309 20A Red 0URM - PDU3XVS6G20
Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: PDU3XVS6G20
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: PDU3XVS6G20
Product Name: PDU3XVS6G20 30-Outlets PDU
Marketing Information: Tripp Lite 3 phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps per-phase can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. Highly accurate current metering offers +/-1% billing-grade current monitoring and recording ability for each output phase.
Product Type: PDU
Technical Information
Input Receptacles: IEC 60309 16/20A Red (3P+N+E)
Output Receptacles:
Power Description
Input Voltage Range: 380 V AC - 415 V AC
Output Voltage:
Power Rating (Watt): 11.50 kW
Input Current: 16 A
Management
Management:
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Mounting Orientation: Vertical
Rack Height: 0U
Height: 70"
Width: 2.2"
Depth: 2.9"
Weight (Approximate): 14.50 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
TAA Compliant: Yes
Manufacturer: Tripp Lite
Manufacturer Part Number: PDU3XVS6G20
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: PDU3XVS6G20
Product Name: PDU3XVS6G20 30-Outlets PDU
Marketing Information: Tripp Lite 3 phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps per-phase can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. Highly accurate current metering offers +/-1% billing-grade current monitoring and recording ability for each output phase.
Product Type: PDU
Technical Information
Input Receptacles: IEC 60309 16/20A Red (3P+N+E)
Output Receptacles:
- 24 x IEC 60320 C13
- 6 x IEC 60320 C19
Power Description
Input Voltage Range: 380 V AC - 415 V AC
Output Voltage:
- 380 V AC
- 400 V AC
- 415 V AC
Power Rating (Watt): 11.50 kW
Input Current: 16 A
Management
Management:
- HTTP
- HTTPS
- PowerAlert Network Management System
- SMTP
- SNMPv1
- SNMPv2
- Telnet
- SSH
- FTPP
- DHCP
- BootP
- NTP Protocols
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Mounting Orientation: Vertical
Rack Height: 0U
Height: 70"
Width: 2.2"
Depth: 2.9"
Weight (Approximate): 14.50 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
TAA Compliant: Yes
