Product Description

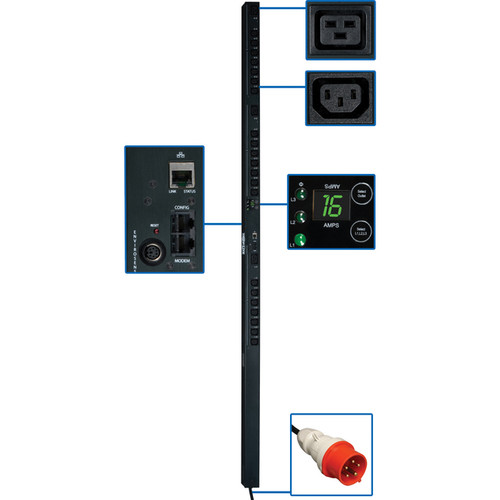

Tripp Lite PDU 3-Phase Monitored 220/230V 30 C13; 6 C19 IEC-309 16A Red 3' Cord 0U - PDU3XVN3G16
Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: PDU3XVN3G16
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Series: Monitored
Product Model: PDU3XVN3G16
Product Name: Monitored PDU3XVN3G16 36-Outlets 11kVA PDU
Marketing Information:
Product Type: PDU
Technical Information
Input Receptacles: NEMA L21-20P
Output Receptacles:
Power Description
Input Voltage Range: 400 V AC
Output Voltage: 230 V AC
Power Rating (VA): 11000 VA
Management
Management:
Physical Characteristics
Mounting Orientation: Vertical
Placement: Rack
Height: 70"
Width: 2.2"
Depth: 3.6"
Weight (Approximate): 12.57 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Tripp Lite
Manufacturer Part Number: PDU3XVN3G16
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Series: Monitored
Product Model: PDU3XVN3G16
Product Name: Monitored PDU3XVN3G16 36-Outlets 11kVA PDU
Marketing Information:
PDU3XVN3G16 Monitored 3 phase 400V input / 230V output Zero U vertical rack PDU supports 11kW total output capacity. Includes 3 ft. / .9m input cord with IEC-309 Red 16A (3P+N+E) 400V 3 phase input plug and 36 230V outlets arranged in 3 single phase output load banks. Each output loading bank contains 12 outlets (10 C13 and 2 C19). Visual meter with scroll button and PowerAlert remote monitoring interface enables real-time current monitoring for each output phase. Supports 0U vertical rackmount installation with included mounting accessories. Toolless button-mount installation supported in compatible racks. Included cord retention brackets keep vital network equipment plugged in and continuously powered.
Product Type: PDU
Technical Information
Input Receptacles: NEMA L21-20P
Output Receptacles:
- 6 x IEC 60320 C19
- 30 x IEC 60320 C13
Power Description
Input Voltage Range: 400 V AC
Output Voltage: 230 V AC
Power Rating (VA): 11000 VA
Management
Management:
Protocols:
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- Telnet
- SSH
- FTP
- DHCP
- BOOTP
- NTP
Physical Characteristics
Mounting Orientation: Vertical
Placement: Rack
Height: 70"
Width: 2.2"
Depth: 3.6"
Weight (Approximate): 12.57 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
