Product Description

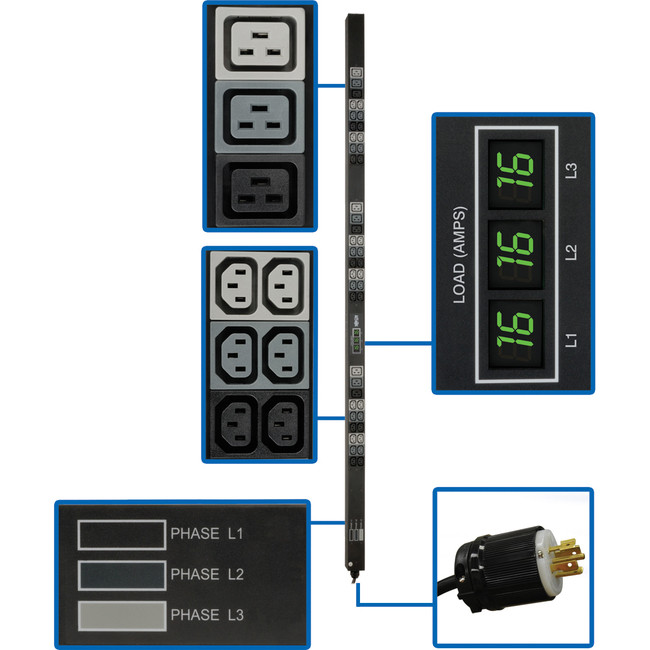

Tripp Lite PDU 3-Phase Metered 240V/230V/220V 11.5kW C13 C19 Vertical 0URM TAA - PDU3XMV6L2220
Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: PDU3XMV6L2220
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Series: Metered
Product Model: PDU3XMV6L2220
Product Name: Metered Rackmount PDU With Pre-Installed Mounting Buttons
Marketing Information:
Product Type: PDU
Technical Information
Input Receptacles: NEMA L22-20P
Output Receptacles:
Power Description
Input Voltage Range: 415 V AC
Output Voltage: 240 V AC
Power Rating (Watt): 11.50 kW
Physical Characteristics
Mounting Orientation: Vertical
Placement: Rack
Height: 70"
Width: 2.2"
Depth: 1.9"
Weight (Approximate): 12.90 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Tripp Lite
Manufacturer Part Number: PDU3XMV6L2220
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Series: Metered
Product Model: PDU3XMV6L2220
Product Name: Metered Rackmount PDU With Pre-Installed Mounting Buttons
Marketing Information:
Tripp Lite 3-phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Product Type: PDU
Technical Information
Input Receptacles: NEMA L22-20P
Output Receptacles:
- 36 x IEC 60320 C13
- 9 x IEC 60320 C19
Power Description
Input Voltage Range: 415 V AC
Output Voltage: 240 V AC
Power Rating (Watt): 11.50 kW
Physical Characteristics
Mounting Orientation: Vertical
Placement: Rack
Height: 70"
Width: 2.2"
Depth: 1.9"
Weight (Approximate): 12.90 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
