Product Description

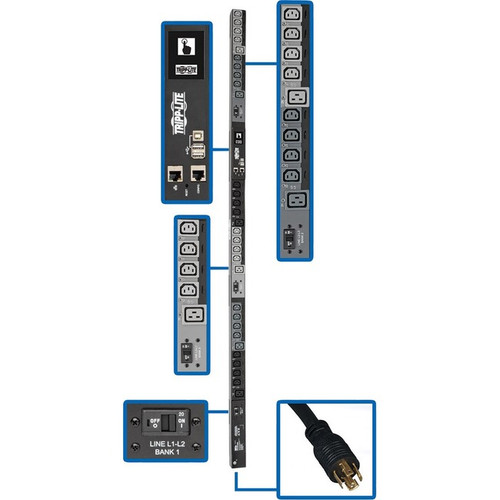

Tripp Lite 3-Phase PDU Switched 14.5kW 200/208/240V 24 C13;6 C19; IEC 309 60A - PDU3EVSR6G60
Manufacturer: Tripp Lite
Manufacturer Part Number: PDU3EVSR6G60
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: PDU3EVSR6G60
Product Name: PDU3EVSR6G60 30-Outlet PDU
Marketing Information:
The PDU3EVSR6G60 14.5kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.
The 0U PDU features 30 switched outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with IEC 309 60A Blue plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet, SSH, or CLI. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
Product Type: PDU
Technical Information
Input Receptacles: IEC 60309 60A BLUE (3P+E)
Output Receptacles:
- 6 x IEC 60320 C19
- 24 x IEC 60320 C13
Protection Type: Overload Protection
Power Description
Input Voltage: 230 V AC
Output Voltage:
- 200 V AC
- 208 V AC
- 240 V AC
Power Rating (Watt): 14.50 kW
Management
Management: Protocols:
- IPv4
- IPv6
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- telnet
- SSH
- FTP
- DHCP
- NTP
Physical Characteristics
Mounting Orientation: Vertical
Placement: Rack
Form Factor: Rack-mountable
Rack Height: 0U
Height: 70"
Width: 2.2"
Depth: 2.9"
Weight (Approximate): 20.01 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
TAA Compliant: Yes
