Product Description

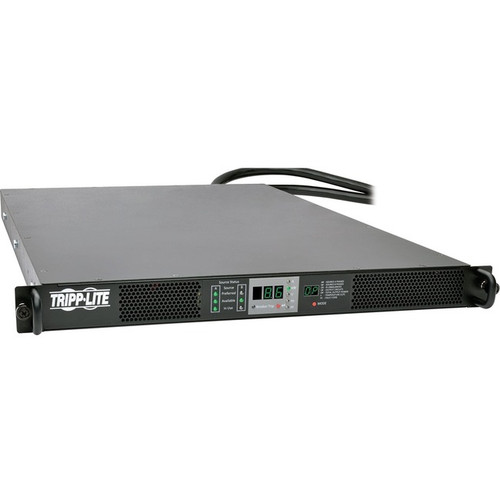

Tripp Lite PDU 3-Phase Monitored/ATS 208V 8.6kW 2 L21-30P 6' Cords 1U - PDU330AT6L2130
Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: PDU330AT6L2130
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Series: Monitored
Product Model: PDU330AT6L2130
Product Name: PDU330AT6L2130 8.6kW 3-Phase 208V ATS/Monitored PDU
Marketing Information: The PDU330AT6L2130 8.6kW 3-Phase 208V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Working in tandem with a required 0U vertical outlet accessory(sold separately; choose from PDU3VD351, PDU3V20D354, PDU3V20D354A or PDU3V20D354B), the 1U PDU330AT6L2130 is ideal for data centers and server rooms.
Dual 6-foot input cords with L21-30P plugs connect to separate primary and secondary 3-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state(TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in Ethernet network interface allows remote access to the PDU for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP. Provides real-time load/current data with billing-grade accuracy(+/- 1 percent). Tiered access privileges allow both an administrator and a guest to log in. Automated alerts help prevent accidental overloads, power loss and downtime. Digital LED display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module(sold separately).
Product Type: PDU
Technical Information
Input Receptacles: 2 x NEMA L21-30P
Output Receptacles:
Protection Type: Overload Protection
Power Description
Input Voltage: 230 V AC
Output Voltage: 208 V AC
Power Rating (Watt): 8600 W
Input Current: 24 A
Management
Management:
Physical Characteristics
Mounting Orientation: Horizontal
Placement: Rack
Rack Height: 1U/2U
Height: 1.7"
Width: 16.9"
Depth: 26"
Weight (Approximate): 26.80 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Tripp Lite
Manufacturer Part Number: PDU330AT6L2130
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Series: Monitored
Product Model: PDU330AT6L2130
Product Name: PDU330AT6L2130 8.6kW 3-Phase 208V ATS/Monitored PDU
Marketing Information: The PDU330AT6L2130 8.6kW 3-Phase 208V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Working in tandem with a required 0U vertical outlet accessory(sold separately; choose from PDU3VD351, PDU3V20D354, PDU3V20D354A or PDU3V20D354B), the 1U PDU330AT6L2130 is ideal for data centers and server rooms.
Dual 6-foot input cords with L21-30P plugs connect to separate primary and secondary 3-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state(TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in Ethernet network interface allows remote access to the PDU for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP. Provides real-time load/current data with billing-grade accuracy(+/- 1 percent). Tiered access privileges allow both an administrator and a guest to log in. Automated alerts help prevent accidental overloads, power loss and downtime. Digital LED display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module(sold separately).
Product Type: PDU
Technical Information
Input Receptacles: 2 x NEMA L21-30P
Output Receptacles:
- IEC 60320 C19
- IEC 60320 C13
Protection Type: Overload Protection
Power Description
Input Voltage: 230 V AC
Output Voltage: 208 V AC
Power Rating (Watt): 8600 W
Input Current: 24 A
Management
Management:
- HTTP
- HTTPS
- PowerAlert
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- Telnet
- SSH
- FTP
- DHCP
- BOOTP and NTP
Physical Characteristics
Mounting Orientation: Horizontal
Placement: Rack
Rack Height: 1U/2U
Height: 1.7"
Width: 16.9"
Depth: 26"
Weight (Approximate): 26.80 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
