Product Description

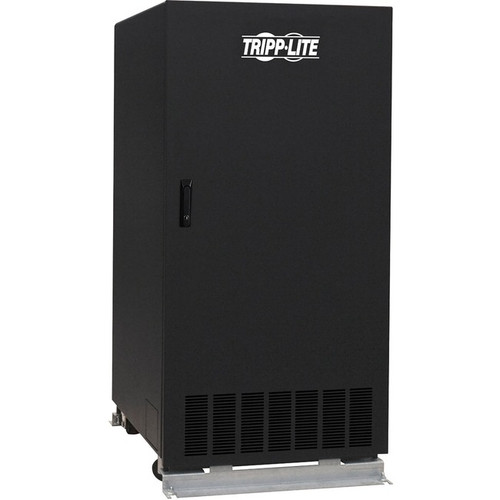

Tripp Lite Battery Pack 3-Phase UPS +/-120VDC 2 Cabinet w No Batteries - EBP240V3502NB
Manufacturer: Tripp Lite
Manufacturer Part Number: EBP240V3502NB
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: EBP240V3502NB
Product Name: EBP240V3502NB Power Array Cabinet
Marketing Information:
Add Batteries to Empty Cabinets to Extend Runtime of SV-Series UPS Systems
This external backup battery pack consists of two battery cabinets that require 40 user-supplied CSB HRL12330W (or equivalent) sealed lead acid batteries to give your Tripp Lite SV-Series 3-phase UPS system more runtime. It uses a +/-120VDC configuration and must be hardwired to a compatible UPS system. You can also connect more battery packs in parallel to increase runtime even longer. A UL-listed DC circuit breaker protects against too much current. The EBP240V3502NB is compatible with all Tripp Lite UPS models that begin with SV20, SV40, SV60, SV80, SV100, SV120 and SV140.
Designed and Constructed to Ensure Consistent Power for a Long Time
This 120V UPS battery pack is made from heavy-gauge welded steel with a baked powder-coated finish that protects the cabinets from chipping and corrosion. The hinged cabinet door locks to prevent tampering and to facilitate easy access to the internal batteries. User-supplied power output cables feed into the cabinets through conduit knockouts built into the cabinets' exterior. Front and rear vents allow the free flow of warm air out of the cabinets to maintain cool internal temperatures. Sturdy metal casters allow you to smoothly roll the backup battery pack into position.
TAA-Compliant for GSA Schedule Purchases
The EBP240V3502NB is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Typical Applications
- Extend the runtime of your compatible Tripp Lite UPS system in a data center or telecom network
- Connect multiple battery packs in parallel to further extend runtime for mission-critical equipment
System Requirements
- Any Tripp Lite UPS model that begins with SV20, SV40, SV60, SV80, SV100, SV120 or SV140
- 40 user-supplied CSB HRL12330W (or equivalent) sealed lead acid batteries
Product Type: Power Array Cabinet
Power Description
Output Voltage: 120 V DC
Physical Characteristics
Form Factor: Tower
Height: 59"
Width: 58"
Depth: 31.5"
Weight (Approximate): 1070 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
TAA Compliant: Yes
