Product Description

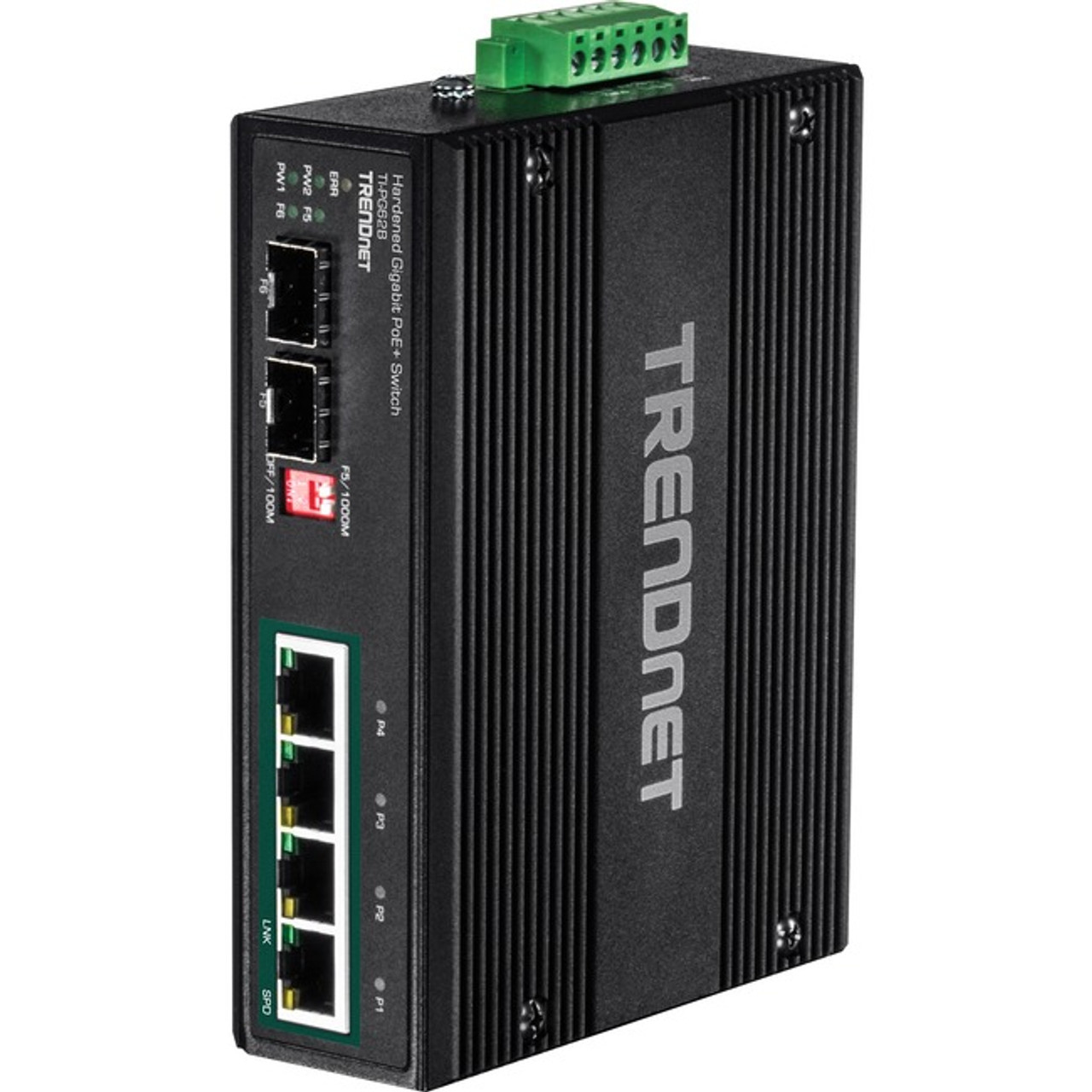

TRENDnet 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V - TI-PG62B
Specifications
Manufacturer: TRENDnet
Manufacturer Part Number: TI-PG62B
Manufacturer Website Address: http://www.trendnet.com
Brand Name: TRENDnet
Product Model: TI-PG62B
Product Name: 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V
Marketing Information: TRENDnet's TI-PG62B is a reliable IP30 unmanaged hardened DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, two dedicated SFP slots and a 12 Gbps switching capacity. Dual redundant 12 - 56 VDC power inputs and a power failure alarm relay.
PoE Power
A 60 - 120 W PoE+ power budget supplies up to four Power over Ethernet devices.
Fault Tolerance
Features dual redundant 12 - 56 VDC power inputs with output alarm relay.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range of -40 - 75° C (-40 - 167° F).
Network Ports
4 x Gigabit PoE+ ports and 2 x dedicated SFP slots
DIN-Rail / Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Switching Capacity
12 Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately models: (model: TI-S12048)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
Extreme Temperatures
Industrial switch is rated for an operating temperature range of -40 - 75 °C (-40 - 167 °F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 4
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
Media & Performance
Media Type Supported:
Ethernet Technology: Gigabit Ethernet
Network Technology:
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Shared SFP Slot: No
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Physical Characteristics
Form Factor:
Height: 1.8"
Width: 4.1"
Length: 5.6"
Weight (Approximate): 1.54 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
Country of Origin: Taiwan
Manufacturer: TRENDnet
Manufacturer Part Number: TI-PG62B
Manufacturer Website Address: http://www.trendnet.com
Brand Name: TRENDnet
Product Model: TI-PG62B
Product Name: 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V
Marketing Information: TRENDnet's TI-PG62B is a reliable IP30 unmanaged hardened DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, two dedicated SFP slots and a 12 Gbps switching capacity. Dual redundant 12 - 56 VDC power inputs and a power failure alarm relay.
PoE Power
A 60 - 120 W PoE+ power budget supplies up to four Power over Ethernet devices.
Fault Tolerance
Features dual redundant 12 - 56 VDC power inputs with output alarm relay.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range of -40 - 75° C (-40 - 167° F).
Network Ports
4 x Gigabit PoE+ ports and 2 x dedicated SFP slots
DIN-Rail / Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Switching Capacity
12 Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately models: (model: TI-S12048)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
Extreme Temperatures
Industrial switch is rated for an operating temperature range of -40 - 75 °C (-40 - 167 °F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 4
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
- 4 x Gigabit Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 1000Base-T
- 1000Base-X
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Shared SFP Slot: No
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Physical Characteristics
Form Factor:
- Rail-mountable
- Wall Mountable
Height: 1.8"
Width: 4.1"
Length: 5.6"
Weight (Approximate): 1.54 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- WEEE
- RoHS
Country of Origin: Taiwan
