Product Description

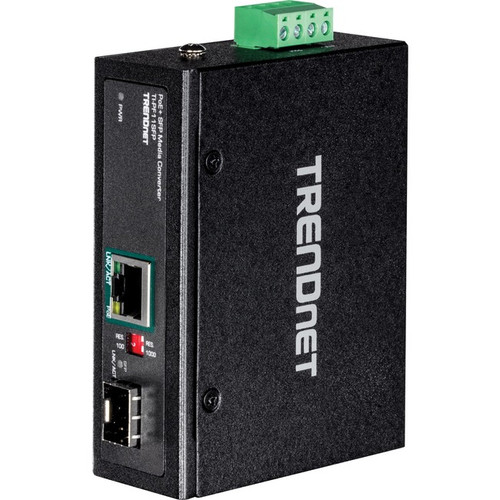

TRENDnet Industrial SFP to Gigabit PoE+ Media Converter - TI-PF11SFP
Manufacturer: TRENDnet
Manufacturer Part Number: TI-PF11SFP
Manufacturer Website Address: http://www.trendnet.com
Brand Name: TRENDnet
Product Model: TI-PF11SFP
Product Name: Industrial SFP to Gigabit PoE+ Media Converter
Marketing Information:
TRENDnet's Industrial SFP to Gigabit PoE+ Media Converter, model TI-PF11SFP, converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for extreme industrial environments. Dual redundant power inputs with overload current protection minimizes downtime.
Industrial Applications
Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
PoE+ Output
Converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points. Extreme
Environments
Hardened IP30 converter, with a -40 to 75 ºC (-40 to 167 ºF) operating temperature range.
Network Ports
1 x Gigabit PoE+ Ethernet port and 1 x SFP slot
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Switching Capacity
2Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Extreme Temperatures
Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F)
Electromagnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards
Certifications
Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 1
Network (RJ-45): Yes
Number of PoE+ (RJ-45) Ports: 1
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
I/O Expansions
Number of Total Expansion Slots: 1
Expansion Slot Type: SFP
Number of SFP Slots: 1
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 1000Base-X
Power Description
Power Source: Power Supply
Physical Characteristics
Form Factor:
- Rail-mountable
- Wall Mountable
Height: 1.3"
Width: 4.1"
Depth: 3.2"
Weight (Approximate): 5.43 oz
Miscellaneous
Country of Origin: Taiwan
