Product Description

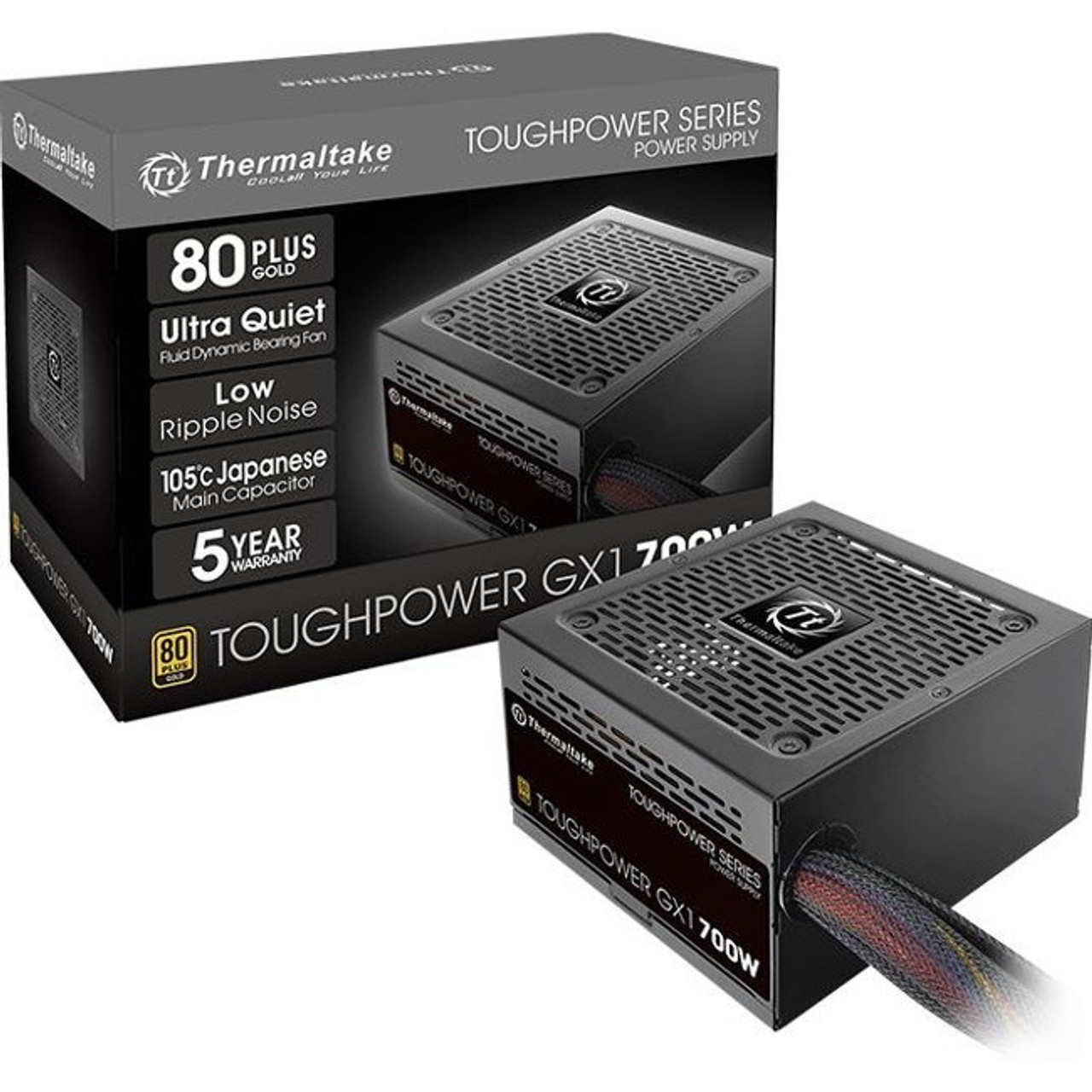

Thermaltake Toughpower GX1 SP-700AH2NCG Power Supply - PS-TPD-0700NNFAGU-1
Manufacturer: Thermaltake Technology Co., Ltd
Manufacturer Website Address: http://www.thermaltakeusa.com
Brand Name: Thermaltake
Product Line: Toughpower GX1
Product Model: SP-700AH2NCG
Product Name: Toughpower GX1 SP-700AH2NCG Power Supply
Marketing Information:
Thermaltake Toughpower GX1 700W
Built to deliver 80 PLUS Gold efficiency, Toughpower GX1 comes with capacities ranging from 500W to 700W, and the application of 120mm Fluid Dynamic Bearing Fan, <±3% tight voltage regulation, Japanese 105°C/221°F main capacitors and premium components. Its near silent operation, trouble free installation and reliable performance are making itself one of the best values for basic system upgrades.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GX1 saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.
Ultra Quiet 120mm Fluid Dynamic Bearing Fan
Featuring an 120mm Fluid Dynamic Bearing Fan to keep friction at really low levels even after prolonged usage while guaranteeing superior cooling performance and silent operation.
Low Ripple Noise
The maximum ripple noise is lower than 60mV on the +12V rail, and lower than 40mV on the +5V &+3.3V rails to ensure an excellent power supply stability. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.
? ±3% Strict Voltage Regulation
The voltage regulation of the PSU is set to no more than ±3% for major rails to meet the highest performance. The strict voltage regulation is better than Intel's standard ±5% for major rails and ±10% for -12V.
Sophisticatedly Designed Exterior Shroud
Sophisticatedly designed exterior shroud stimulates the aesthetic of your power supply while protecting the inner components from a direct contact.
Multiple Connectors
Comes with multiple connectors that power the system at an advantageous voltage and make cable installation an easy task.
High Quality Japanese 105°C/221°F Main Capacitor
Comes with high quality 105 °C (221 ° F) Japanese main capacitor to greatly improve the durability and offer the highest stability and reliability.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail and DC to DC design ensure a stable and reliable supply to other PC components.
Product Type: Power Supply
Technical Information
Efficiency: 90%
Modular: No
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Number of +12V Rails: 1
Output Voltage:
- 3.3 V DC @ 22 A
- 5 V DC @ 22 A
- 12 V DC @ 58 A
- - 12 V DC @ 300 mA
- 5 V DC @ 2.50 A
Output Power: 700 W
Physical Characteristics
Form Factor: Internal
Height: 5.5"
Width: 3.4"
Depth: 5.5"
Miscellaneous
Environmentally Friendly: Yes
Country of Origin: China
