Product Description

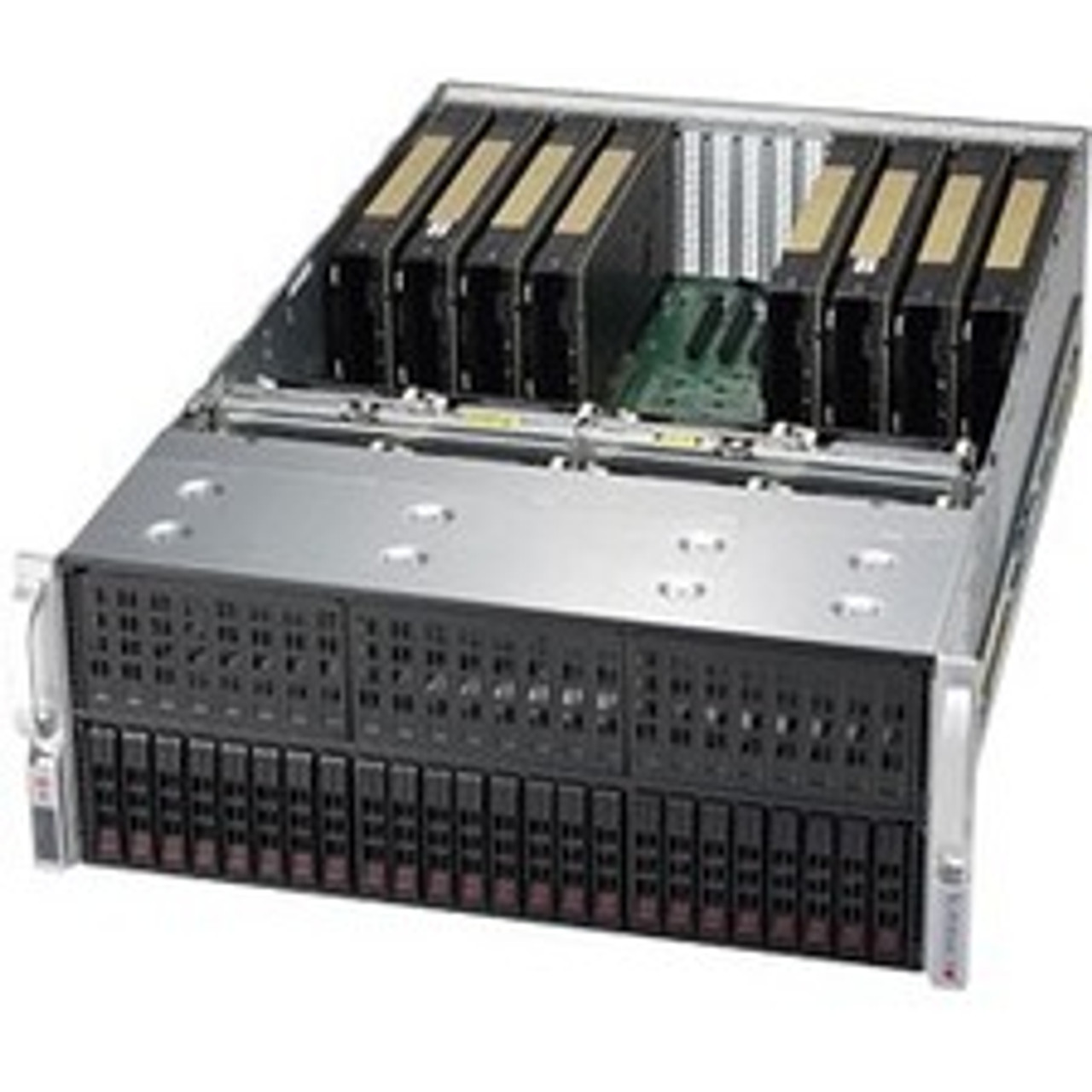

Supermicro SuperServer 4029GP-TRT2 Barebone System - 4U Rack-mountable - Intel C622 Chipset - P - 2 - SYS-4029GP-TRT2
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: SYS-4029GP-TRT2
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Line: SuperServer
Product Model: 4029GP-TRT2
Product Name: SuperServer 4029GP-TRT2 (Black)
Marketing Information:
Scalable Processors + C620 series based SuperServer / Socket P - LGA 3647 / DP Xeon
4U Xeon® Scalable Processors
Supermicro's X11 DP/UP SuperServer®, SuperWorkstation, SuperStorage, and SuperBlade® solutions offer numerous advantages over previous generations and the highest levels of performance, efficiency, security and scalability in the industry. Supermicro X11 SuperServers support the latest Intel® Xeon® Scalable processors and offer 3TB ECC 3DS LRDIMM or RDIMM DDR4-2666MHz memory in 24 DIMMs, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 10GBase-T/10G SFP+/56Gbps FDR InfiniBand networking options, redundant Titanium Level (96%+) Digital power supplies, and IPMI 2.0 plus KVM with dedicated LAN. The SuperWorkstation systems offer in addition 7.1 HD Audio, SLI and Thunderbolt support, and up to 11 USB ports.
Product Type: Barebone System
Processor & Chipset
Number of Processors Supported: 2
Processor Socket: Socket P LGA-3647
Processor Supported:
- Xeon Platinum
- Xeon Gold
- Xeon Silver
- Xeon Bronze
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C622
Memory
Maximum Memory: 3 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Number of Total Memory Slots: 24
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 24
Number of Internal 2.5" Bays: 24
Number of Total Expansion Slots: 12
Number of PCI Express x16 Slots: 12
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 4
Number of SATA Interfaces: 10
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Number of Power Supplies Installed: 4
Maximum Power Supply Wattage: 2000 W
Physical Characteristics
Color: Black
Form Factor: Rack-mountable
Rack Height: 4U
Height: 7"
Width: 17.2"
Depth: 29"
Weight (Approximate): 80 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Videos
Custom Field
Product Reviews
