Product Description

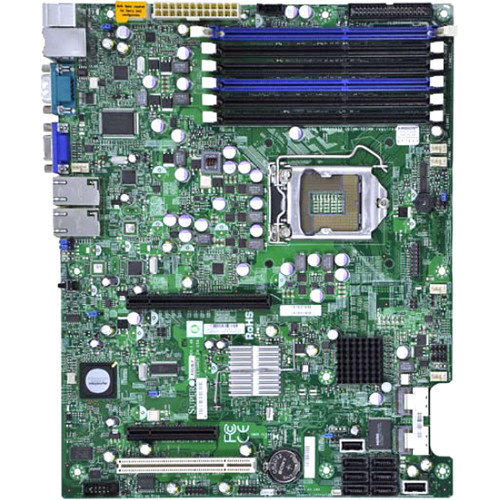

Supermicro Server Board Motherboard - Intel Chipset - Socket H LGA-1156 - MBD-X8SI6-F-B
Specifications
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X8SI6-F-B
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: Server Board
Product Name: X8SI6-F Server Board
Marketing Information:
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H LGA-1156
Processor Supported:
Memory
Number of Memory Slots: 6
Maximum Memory: 32 GB
Memory Speed Supported:
Memory Standard:
Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type: Serial ATA/300
RAID Supported: Yes
RAID Levels:
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: 3420
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
VGA: Yes
Onboard Interfaces
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 2
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X8SI6-F-B
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: Server Board
Product Name: X8SI6-F Server Board
Marketing Information:
X8SI6-F Server Board is designed with the utmost attention to detail to provide the highest standards in quality and performance. X8SI6-F offers substantial enhancements in price system performance ratio in a cost-effective, small form-factor package.
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H LGA-1156
Processor Supported:
- Xeon Dual-Core
- Xeon Quad-core
Memory
Number of Memory Slots: 6
Maximum Memory: 32 GB
Memory Speed Supported:
- 1.33 GHz
- 1.07 GHz
- 800 MHz
Memory Standard:
- DDR3-1333/PC3-10600
- DDR3-1066/PC3-8500
- DDR3-800/PC3-6400
Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type: Serial ATA/300
RAID Supported: Yes
RAID Levels:
- 0
- 1
- 5
- 1+0
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: 3420
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
VGA: Yes
Onboard Interfaces
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 2
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
