Product Description

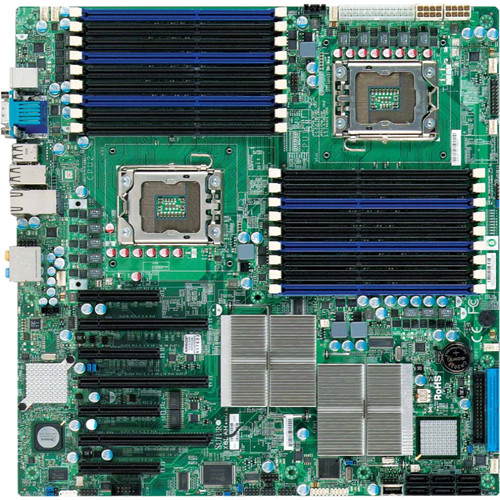

Supermicro X8DT3-F Server Motherboard - Intel Chipset - Socket B LGA-1366 - MBD-X8DT3-F-B
Specifications
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X8DT3-F-B
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: X8DT3-F
Product Name: X8DT3-F Server Motherboard
Marketing Information:
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 2
Processor Socket: Socket B LGA-1366
Processor Supported:
Memory
Number of Memory Slots: 12
Maximum Memory: 96 GB
Memory Speed Supported:
Memory Standard:
Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type:
RAID Supported: Yes
RAID Levels:
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200eW
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 7
Total Number of PCI Express Slots: 4
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
VGA: Yes
Onboard Interfaces
Number of SATA Interfaces: 6
Number of SAS Interfaces: 8
Total Number of Onboard USB Ports: 4
Physical Characteristics
Form Factor: Extended ATX
Width: 12"
Depth: 13"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X8DT3-F-B
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: X8DT3-F
Product Name: X8DT3-F Server Motherboard
Marketing Information:
This X8DT3-F Server Board is designed with the utmost attention to detail to provide the highest standards in quality and performance. X8DT3-F supports the Intel 5500 Series Processor platform, the first dual-processing platform that supports the Intel Quick Path Interconnect (QPI) Technology, providing the next generation point-to-point system interface to replace the current Front Side Bus.
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 2
Processor Socket: Socket B LGA-1366
Processor Supported:
- Xeon Dual-Core
- Xeon Quad-core
Memory
Number of Memory Slots: 12
Maximum Memory: 96 GB
Memory Speed Supported:
- 1.33 GHz
- 1.07 GHz
- 800 MHz
Memory Standard:
- DDR3-1333/PC3-10600
- DDR3-1066/PC3-8500
- DDR3-800/PC3-6400
Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type:
- Floppy Controller
- Serial Attached SCSI (SAS)
- Serial ATA/300
RAID Supported: Yes
RAID Levels:
- 0
- 1
- 5
- 1+0
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200eW
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 7
Total Number of PCI Express Slots: 4
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
VGA: Yes
Onboard Interfaces
Number of SATA Interfaces: 6
Number of SAS Interfaces: 8
Total Number of Onboard USB Ports: 4
Physical Characteristics
Form Factor: Extended ATX
Width: 12"
Depth: 13"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
