Product Description

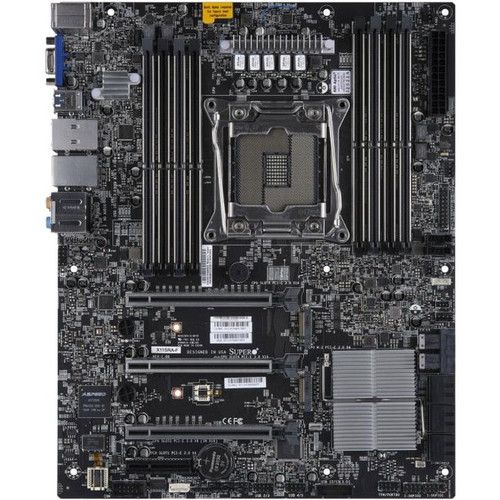

Supermicro X11SRA-F Workstation Motherboard - Intel Chipset - Socket R4 LGA-2066 - MBD-X11SRA-F-O
Specifications
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X11SRA-F-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: X11SRA-F
Product Name: X11SRA-F Workstation Motherboard
Marketing Information:
Product Type: Workstation Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket R4 LGA-2066
Processor Supported: Xeon
Memory
Number of Memory Slots: 8
Memory Form Factor:
Maximum Memory: 512 GB
Memory Speed Supported:
Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 3.0 Ports: 4
Number of USB 3.1 Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.0 Ports: 2
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
Miscellaneous
Compatibility:
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X11SRA-F-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: X11SRA-F
Product Name: X11SRA-F Workstation Motherboard
Marketing Information:
UP Xeon® Motherboards - Socket R4 (LGA 2066)
BOARDS supporting Intel® Xeon® W Processors / Socket R4 (LGA 2066)
Supermicro's single processor Socket R4 design features the Intel® C422 chipset and the Intel® Xeon® W processor. The outstanding features include DDR4 ECC RDIMM/LRDIMM memory, onboard OCuLink connectors for Intel Virtual RAID on Chip (VROC) support, PCI-E 3.0, M.2 and SATA 3.0 (6Gbps) HDD/SSD, 1GbE networking and IPMI 2.0 plus KVM with dedicated LAN. Designed with performance, reliability, and manageability, Supermicro's single processor motherboards are the perfect solution for a variety of server and workstation applications.
Product Type: Workstation Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket R4 LGA-2066
Processor Supported: Xeon
Memory
Number of Memory Slots: 8
Memory Form Factor:
- RDIMM
- LRDIMM
- DIMM
Maximum Memory: 512 GB
Memory Speed Supported:
- 1.87 GHz
- 2.67 GHz
- 2.40 GHz
- 2.13 GHz
- 1.60 GHz
Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:
- 10
- 5
- 1
- 0
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 3.0 Ports: 4
Number of USB 3.1 Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.0 Ports: 2
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
Miscellaneous
Compatibility:
SuperChassis:
- SC732D3-903B
- SC732D3-1200B
- SCGS5A-753K
- SCGS5A-753R
- SC743AC-668B
- SC743AC-1200B-SQ
- SC743TQ-865B-SQ
