Product Description

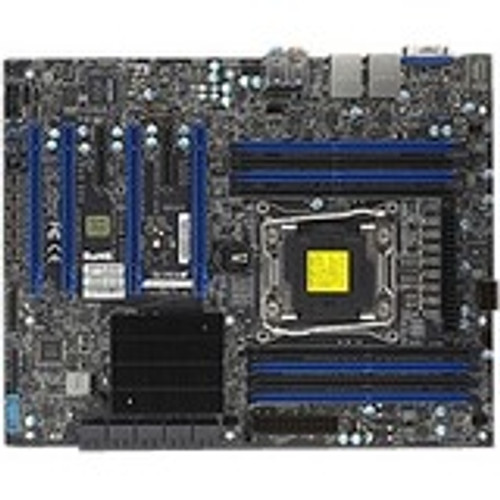

Supermicro X10SRA Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - MBD-X10SRA-B
Specifications
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X10SRA-B
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Series: X10
Product Model: X10SRA
Product Name: X10SRA Server Motherboard
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket LGA 2011-v3
Processor Supported:
Memory
Number of Memory Slots: 8
Memory Form Factor:
Maximum Memory: 512 GB
Memory Speed Supported:
Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:
Video
Onboard Video: No
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 4
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 6
Onboard Interfaces
Number of SATA Interfaces: 10
Total Number of Onboard USB Ports: 2
Number of Onboard USB 3.0 Ports: 2
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
Miscellaneous
Compatibility: Supermicro SuperChassis
4U / Tower Chassis:
SC743TQ-1200B-SQ
SuperServer(s) Model:
SYS-5038A-I
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X10SRA-B
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Series: X10
Product Model: X10SRA
Product Name: X10SRA Server Motherboard
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket LGA 2011-v3
Processor Supported:
- Xeon
- Core i7
Memory
Number of Memory Slots: 8
Memory Form Factor:
- DIMM
- RDIMM
- LRDIMM
- UDIMM
Maximum Memory: 512 GB
Memory Speed Supported:
- 2.13 GHz
- 1.87 GHz
- 1.60 GHz
Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:
- 0
- 1
- 5
- 10
Video
Onboard Video: No
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 4
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 6
Onboard Interfaces
Number of SATA Interfaces: 10
Total Number of Onboard USB Ports: 2
Number of Onboard USB 3.0 Ports: 2
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
Miscellaneous
Compatibility: Supermicro SuperChassis
4U / Tower Chassis:
SC743TQ-1200B-SQ
SuperServer(s) Model:
SYS-5038A-I
Environmentally Friendly: Yes
Environmental Certification: RoHS
