Product Description

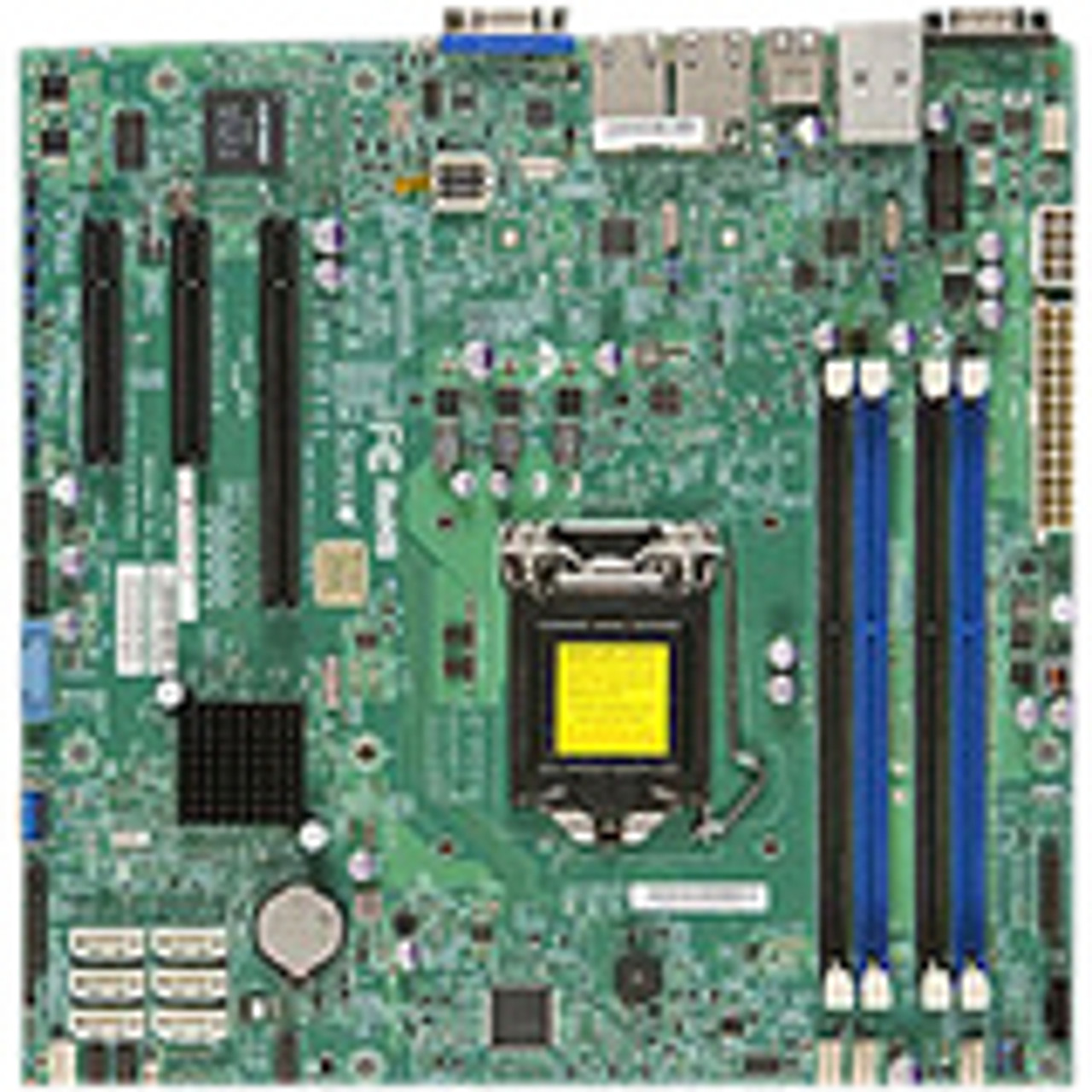

Supermicro X10SLM+-F Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - MBD-X10SLM-F-O
Specifications
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X10SLM-F-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Series: X10
Product Model: X10SLM+-F
Product Name: X10SLM+-F Server Motherboard
Marketing Information: Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling.
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H3 LGA-1150
Processor Supported:
Memory
Number of Memory Slots: 4
Memory Form Factor:
Maximum Memory: 32 GB
Memory Speed Supported: 1.60 GHz
Memory Standard: DDR3-1600/PC3-12800
Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type:
RAID Supported: Yes
RAID Levels:
Video
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
Number of Network (RJ-45) Ports: 3
Onboard Interfaces
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.0 Ports: 2
Physical Characteristics
Form Factor: Micro ATX
Height: 2.8"
Width: 9.6"
Depth: 9.6"
Weight (Approximate): 5 lb
Miscellaneous
Compatibility:
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X10SLM-F-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Series: X10
Product Model: X10SLM+-F
Product Name: X10SLM+-F Server Motherboard
Marketing Information: Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling.
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H3 LGA-1150
Processor Supported:
- Core i3
- Pentium
- Celeron
- Xeon
Memory
Number of Memory Slots: 4
Memory Form Factor:
- DIMM
- UDIMM
Maximum Memory: 32 GB
Memory Speed Supported: 1.60 GHz
Memory Standard: DDR3-1600/PC3-12800
Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type:
- Serial ATA/600
- Serial ATA/300
RAID Supported: Yes
RAID Levels:
- 0
- 1
- 5
- 1+0
Video
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
Number of Network (RJ-45) Ports: 3
Onboard Interfaces
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.0 Ports: 2
Physical Characteristics
Form Factor: Micro ATX
Height: 2.8"
Width: 9.6"
Depth: 9.6"
Weight (Approximate): 5 lb
Miscellaneous
Compatibility:
- CSE-113MTQ-330CB
- CSE-113MTQ-R400CB
- CSE-512F-350B
- CSE-512F-441B
- CSE-811TQ-441B
- CSE-813MTQ-350C
- CSE-813MTQ-441CB
- CSE-813MTQ-R400CB
- CSE-732D4-903B
- CSE-731i-300B
- CSE-732D4-500B
- CSE-732D4-865B
- CSE-733TQ-500B
- CSE-733TQ-665B
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
