Product Description

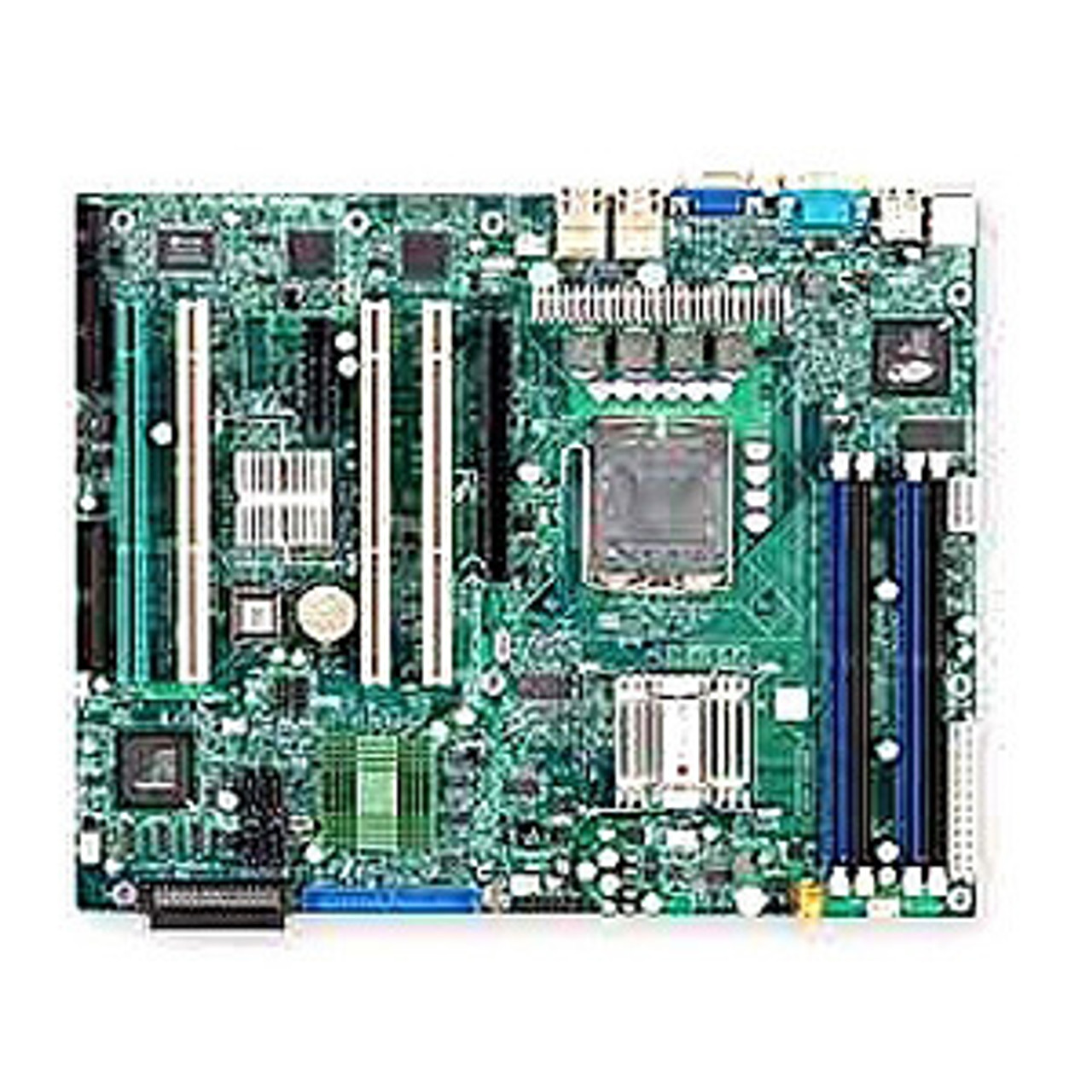

Supermicro PDSM4 Server Motherboard - Intel Chipset - Socket T LGA-775 - MBD-PDSM4-O
Specifications
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-PDSM4-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: PDSM4
Product Name: PDSM4 Server Motherboard
Marketing Information:
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket T LGA-775
Processor Supported:
Memory
Number of Memory Slots: 4
Maximum Memory: 8 GB
Memory Speed Supported:
Memory Standard:
Memory Technology: DDR2 SDRAM
I/O Controller
Controller Type:
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ATI
Graphics Controller Model: Rage-XL
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 1
Number of PCI Express x4 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
VGA: Yes
Onboard Interfaces
Number of SATA Interfaces: 4
Number of SCSI Interfaces: 1
Total Number of Onboard USB Ports: 2
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-PDSM4-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: PDSM4
Product Name: PDSM4 Server Motherboard
Marketing Information:
The PDSM4 supports single Intel Pentium D, Pentium 4 Extreme Edition, Pentium 4, Celeron D LGA775 Processors at system bus speeds of 1066 MHz, 800 MHz and 533 MHz. The PDSM4 supports the Intel Hyper-Threading (HT) Technology, the EM64T Technology, the Enhanced Intel SpeedStep Technology(EIST) and the Matrix Storage Technology. With additional high-speed PCI-X 133/100 expansion slots, this entry-level server delivers excellent cost-effective expandability and performance to handle small business computing workloads. Standard features also include gigabit connectivity and 3Gps SATA storage.
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket T LGA-775
Processor Supported:
- Pentium 4 (Extreme Edition)
- Pentium 4
- Pentium D
- Celeron D
Memory
Number of Memory Slots: 4
Maximum Memory: 8 GB
Memory Speed Supported:
- 667 MHz
- 533 MHz
- 400 MHz
Memory Standard:
- DDR2-400/PC2-3200
- DDR2-533/PC2-4200
- DDR2-667/PC2-5300
Memory Technology: DDR2 SDRAM
I/O Controller
Controller Type:
- Floppy Controller
- Ultra320 SCSI
- Serial ATA/300
- Ultra ATA/100 (ATA-6)
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ATI
Graphics Controller Model: Rage-XL
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 1
Number of PCI Express x4 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
VGA: Yes
Onboard Interfaces
Number of SATA Interfaces: 4
Number of SCSI Interfaces: 1
Total Number of Onboard USB Ports: 2
