Product Description

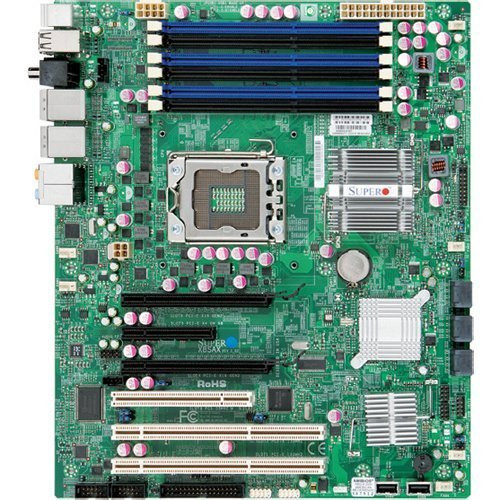

Supermicro C7X58 Desktop Motherboard - Intel Chipset - Socket B LGA-1366 - MBD-C7X58-O
Specifications
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-C7X58-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: C7X58
Product Name: C7X58 Desktop Motherboard
Marketing Information:
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket B LGA-1366
Processor Supported:
Memory
Number of Memory Slots: 6
Maximum Memory: 24 GB
Memory Speed Supported:
Memory Standard:
Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type:
RAID Supported: Yes
RAID Levels:
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 3
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 8
S/PDIF: Yes
Onboard Interfaces
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 3
Onboard S/PDIF Header: Yes
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 10"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-C7X58-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: C7X58
Product Name: C7X58 Desktop Motherboard
Marketing Information:
This C7X58 Desktop Board designed with the utmost attention to detail to provide you with the highest standards in quality and performance. It is the first platform that supports the Intel QuickPath Interconnect technology, providing the next generation point-to-point system interface, replacing the current Front Side Bus.
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket B LGA-1366
Processor Supported:
- Core i7
- Core i7 Extreme Edition
- Xeon Dual-Core
- Xeon Quad-core
Memory
Number of Memory Slots: 6
Maximum Memory: 24 GB
Memory Speed Supported:
- 1.60 GHz
- 1.33 GHz
- 1.07 GHz
- 800 MHz
Memory Standard:
- DDR3-1600/PC3-12800
- DDR3-1333/PC3-10600
- DDR3-1066/PC3-8500
- DDR3-800/PC3-6400
Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type:
- Floppy Controller
- Serial ATA/300
RAID Supported: Yes
RAID Levels:
- 0
- 1
- 5
- 1+0
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 3
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 8
S/PDIF: Yes
Onboard Interfaces
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 3
Onboard S/PDIF Header: Yes
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 10"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
