Product Description

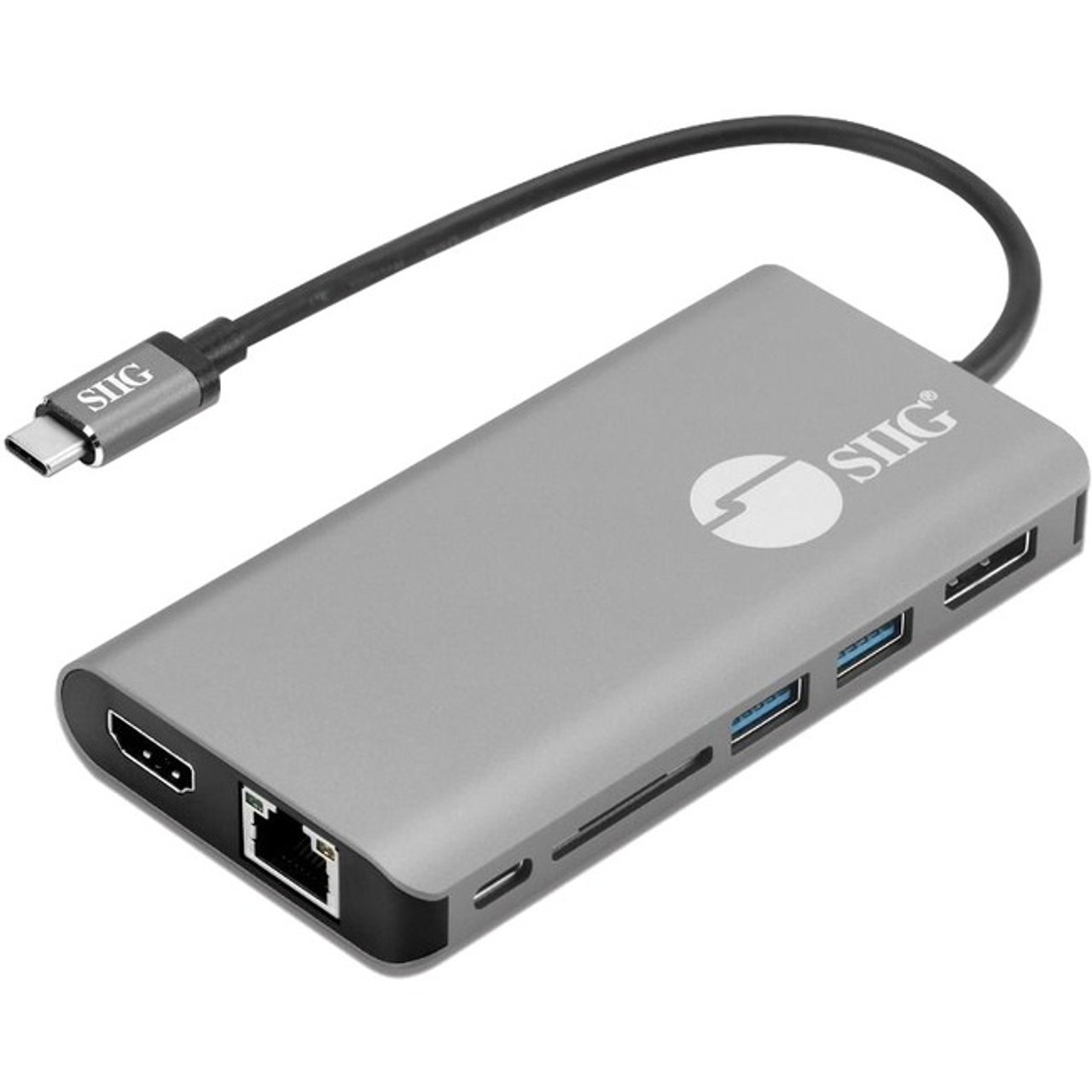

SIIG USB-C MST Video with Hub, LAN and PD 3.0 Docking - JU-DK0F11-S1
Specifications
Manufacturer: SIIG, Inc
Manufacturer Part Number: JU-DK0F11-S1
Manufacturer Website Address: http://www.siig.com
Brand Name: SIIG
Product Name: USB-C MST Video with Hub, LAN and PD 3.0 Docking
Marketing Information:
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported: Notebook/Desktop PC
Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 3
USB Type-C: Yes
USB Type-C Detail: for PD 3.0 charging & USB 3.0 data transmission
Network (RJ-45): Yes
Number of DisplayPort Outputs: 1
DisplayPort: Yes
Number of HDMI Outputs: 1
HDMI: Yes
Power Description
Maximum Power Supply Wattage: 100 W
Physical Characteristics
Height: 0.6"
Width: 2.4"
Depth: 4.6"
Weight (Approximate): 4.16 oz
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
Manufacturer: SIIG, Inc
Manufacturer Part Number: JU-DK0F11-S1
Manufacturer Website Address: http://www.siig.com
Brand Name: SIIG
Product Name: USB-C MST Video with Hub, LAN and PD 3.0 Docking
Marketing Information:
- Transforms a single USB-C port, with DP Alt mode or Thunderbolt 3 technology, into multiple connectivity ports including one USB-C port (Charge and Data), one HDMI port, one DisplayPort port, one Gigabit Ethernet, two USB 3.0 ports and one SD memory card slot
- Supports Mirror mode with identical content displayed on each display, Extended mode with individual content displayed on each screen
- DisplayPort Multi Stream Transport (MST) technology supports single 4K @30Hz Ultra HD video output, dual Full-HD 1080p video outputs
- Supports PD 3.0 specification, provides up to 100W to power/charge Laptops, Notebooks, and other peripheral devices
- Supports USB-C with DisplayPort Alternate mode and Thunderbolt 3 technology
- Enables you to connect multiple USB peripherals simultaneously such as mouse, keyboard, flash drive, printer and more
- SuperSpeed USB 3.0 ports support data transfer rate up to 5Gb/s
- SD flash memory card slots support various SD memory cards of up to 2TB capacity, perfect solution for transferring files from your portable devices to your computer
- Plug-n-play, no driver installation or power adapter required
- Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performance, a great tool to increase your productivity for home, office or on-the-go
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported: Notebook/Desktop PC
Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 3
USB Type-C: Yes
USB Type-C Detail: for PD 3.0 charging & USB 3.0 data transmission
Network (RJ-45): Yes
Number of DisplayPort Outputs: 1
DisplayPort: Yes
Number of HDMI Outputs: 1
HDMI: Yes
Power Description
Maximum Power Supply Wattage: 100 W
Physical Characteristics
Height: 0.6"
Width: 2.4"
Depth: 4.6"
Weight (Approximate): 4.16 oz
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
