Product Description

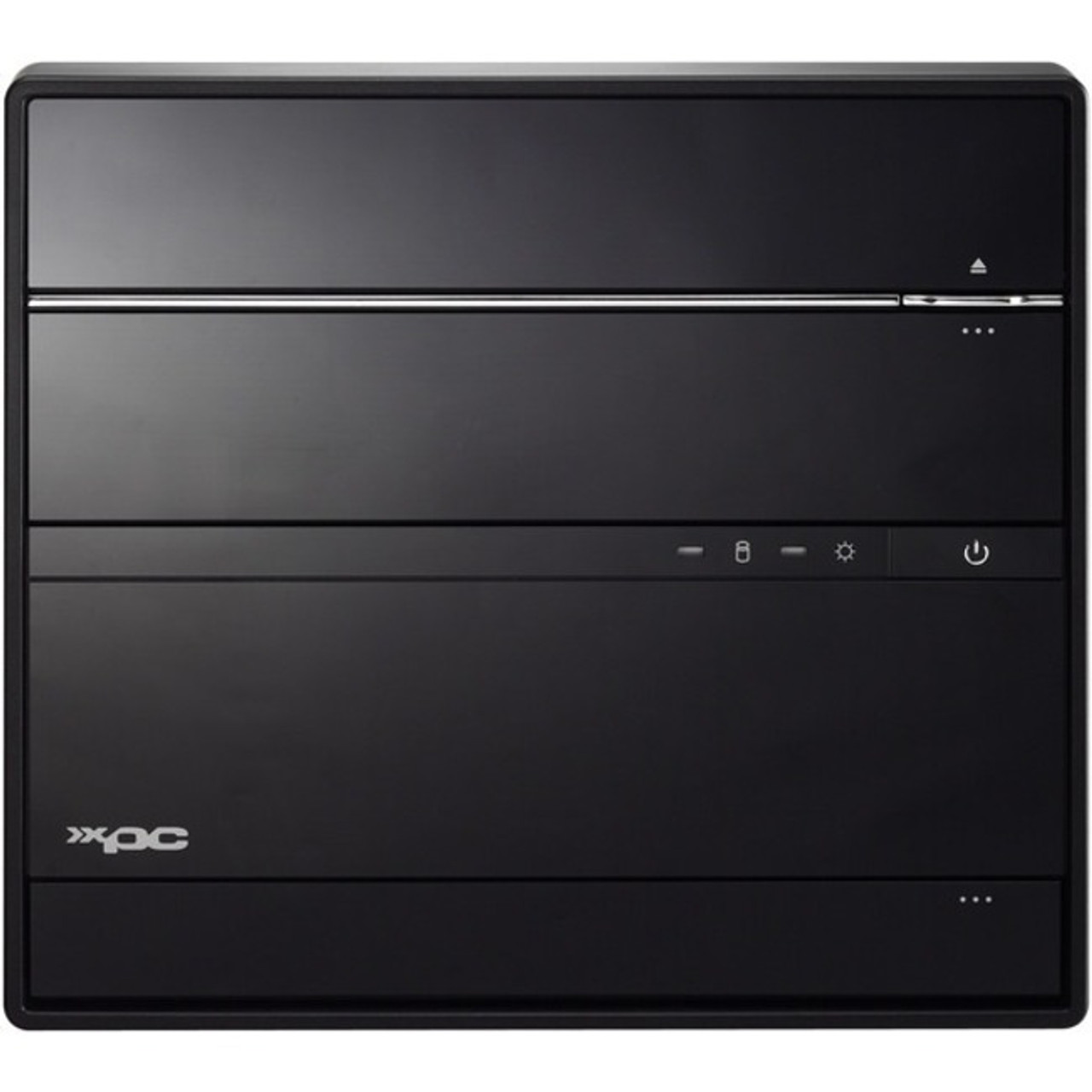

Shuttle XPC cube SH370R6V2 Barebone System Mini PC - Intel H370 Chipset - Socket H4 LGA-1151 - 1 x - SH370R6V2
Specifications
Manufacturer: Shuttle, Inc
Manufacturer Part Number: SH370R6V2
Manufacturer Website Address: http://www.us.shuttle.com
Brand Name: Shuttle
Product Line: XPC cube
Product Model: SH370R6V2
Product Name: XPC cube Barebone SH370R6V2
Marketing Information: Supports 8th/9th generation Intel Core CPUs and up to three UHD displays
The Shuttle XPC Barebone SH370R6V2 shows how discreet a modern PC can look and at the same time how powerful it can be. Its blackbrushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 8 th/9th gen. Intel Core processors, a dualslot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 64 GB of DDR4 memory, plus a Blu-ray drive. Even without a dedicated graphics card, up to three UHD displays are supported optionally.
Product Type: Barebone System
Processor & Chipset
Number of Processors Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported:
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: H370
Memory
Maximum Memory: 64 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Number of Total Memory Slots: 4
Intel Optane Memory Ready: Yes
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: Intel
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 3
Number of External 5.25" Bays: 1
Number of 3.5" Bays: 2
Number of Total Expansion Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 12
Number of SATA Interfaces: 4
Software
Operating System Supported:
Power Description
Input Voltage:
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 300 W
Physical Characteristics
Color: Black
Form Factor: Mini PC
Height: 7.5"
Width: 8.5"
Depth: 13.1"
Weight (Approximate): 7.72 lb
Miscellaneous
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:
Manufacturer: Shuttle, Inc
Manufacturer Part Number: SH370R6V2
Manufacturer Website Address: http://www.us.shuttle.com
Brand Name: Shuttle
Product Line: XPC cube
Product Model: SH370R6V2
Product Name: XPC cube Barebone SH370R6V2
Marketing Information: Supports 8th/9th generation Intel Core CPUs and up to three UHD displays
The Shuttle XPC Barebone SH370R6V2 shows how discreet a modern PC can look and at the same time how powerful it can be. Its blackbrushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 8 th/9th gen. Intel Core processors, a dualslot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 64 GB of DDR4 memory, plus a Blu-ray drive. Even without a dedicated graphics card, up to three UHD displays are supported optionally.
Product Type: Barebone System
Processor & Chipset
Number of Processors Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported:
- Core i7
- Core i5
- Core i3
- Pentium Gold
- Celeron
- Core i9
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: H370
Memory
Maximum Memory: 64 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Number of Total Memory Slots: 4
Intel Optane Memory Ready: Yes
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: Intel
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 3
Number of External 5.25" Bays: 1
Number of 3.5" Bays: 2
Number of Total Expansion Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 12
Number of SATA Interfaces: 4
Software
Operating System Supported:
- Windows 10 x64
- Linux
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 300 W
Physical Characteristics
Color: Black
Form Factor: Mini PC
Height: 7.5"
Width: 8.5"
Depth: 13.1"
Weight (Approximate): 7.72 lb
Miscellaneous
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- ENERGY STAR 5.0
- ErP
