Product Description

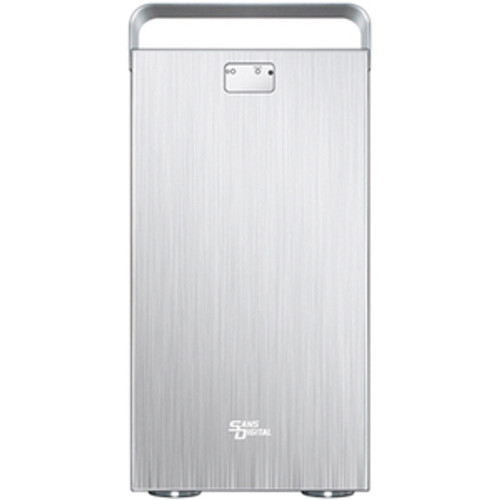

Sans Digital MobileSTOR MS8X6+ - 8 Bay SATA/SAS to 6G SAS Expander JBOD Enclosure (Silver) - KT-MS8X6+
Specifications
Manufacturer: Sans Digital
Manufacturer Part Number: KT-MS8X6+
Manufacturer Website Address: http://www.sansdigital.com
Brand Name: Sans Digital
Product Line: MobileSTOR
Product Model: MS8X6+
Product Name: MobileSTOR MS8X6+ - 8 Bay SATA/SAS to 6G SAS Expander JBOD Enclosure (Silver)
Marketing Information: The MobileSTOR MS8X6+ series is a 8 bay mini-SAS SAS expander tower comprised of the same engines as the AccuSTOR / EliteSTOR enterprise level rackmount storage. Utilizing the same engine structure as the enterprise level rackmounts, the MobileSTOR utilize SAS expander technology, and provides up to 24 Gb/s or 2400MB/s of data bandwidth to fulfill the most demanding application. The MS8X6+ supports both SATA or SAS 6Gb/s solid state drives and hard drives and is backward compatible to 3Gbps SAS & SATA SSD and HDDs. By utilizing the latest SAS expander technology, the MS8X6+ supports up to 8 SAS or SATA drives using only one mini-SAS cable. A built-in SAS expansion port enables the system to connect up to 5 units or 40 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca, ATTO, Highpoint and LSI 6G RAID controller, the MS8X6+ is capable of delivering over 1500MB/s in read/write performance with RAID controller, doubling the existing 3G SAS expander bandwidth. Drives status information is provided by the LED. All necessary hardware comes standard including mini-SAS cable, hot-swappable cooling fan, and hard drives tray modules. The MS8X6+ is an ideal storage expansion solution for servers or high performance video editing workstations.
Product Type: DAS Storage System
Storage
Number of Hard Drives Supported: 8
Total Hard Drive Capacity Supported: 32 TB
Number of Solid State Drive Supported: 8
Total Solid State Drive Capacity Supported: 32 TB
I/O Expansions
Number of Total Expansion Bays: 8
Number of 3.5" Bays: 8
Controllers
Controller Type:
RAID Supported: Yes
RAID Levels: JBOD
Interfaces/Ports
Host Interface: Mini-SAS
Power Description
Maximum Power Supply Wattage: 300 W
Physical Characteristics
Height: 15.5"
Width: 8"
Depth: 13"
Form Factor: Tower
Weight (Approximate): 20 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Sans Digital
Manufacturer Part Number: KT-MS8X6+
Manufacturer Website Address: http://www.sansdigital.com
Brand Name: Sans Digital
Product Line: MobileSTOR
Product Model: MS8X6+
Product Name: MobileSTOR MS8X6+ - 8 Bay SATA/SAS to 6G SAS Expander JBOD Enclosure (Silver)
Marketing Information: The MobileSTOR MS8X6+ series is a 8 bay mini-SAS SAS expander tower comprised of the same engines as the AccuSTOR / EliteSTOR enterprise level rackmount storage. Utilizing the same engine structure as the enterprise level rackmounts, the MobileSTOR utilize SAS expander technology, and provides up to 24 Gb/s or 2400MB/s of data bandwidth to fulfill the most demanding application. The MS8X6+ supports both SATA or SAS 6Gb/s solid state drives and hard drives and is backward compatible to 3Gbps SAS & SATA SSD and HDDs. By utilizing the latest SAS expander technology, the MS8X6+ supports up to 8 SAS or SATA drives using only one mini-SAS cable. A built-in SAS expansion port enables the system to connect up to 5 units or 40 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca, ATTO, Highpoint and LSI 6G RAID controller, the MS8X6+ is capable of delivering over 1500MB/s in read/write performance with RAID controller, doubling the existing 3G SAS expander bandwidth. Drives status information is provided by the LED. All necessary hardware comes standard including mini-SAS cable, hot-swappable cooling fan, and hard drives tray modules. The MS8X6+ is an ideal storage expansion solution for servers or high performance video editing workstations.
Product Type: DAS Storage System
Storage
Number of Hard Drives Supported: 8
Total Hard Drive Capacity Supported: 32 TB
Number of Solid State Drive Supported: 8
Total Solid State Drive Capacity Supported: 32 TB
I/O Expansions
Number of Total Expansion Bays: 8
Number of 3.5" Bays: 8
Controllers
Controller Type:
- 6Gb/s SAS
- Serial ATA/600
RAID Supported: Yes
RAID Levels: JBOD
Interfaces/Ports
Host Interface: Mini-SAS
Power Description
Maximum Power Supply Wattage: 300 W
Physical Characteristics
Height: 15.5"
Width: 8"
Depth: 13"
Form Factor: Tower
Weight (Approximate): 20 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
