Product Description

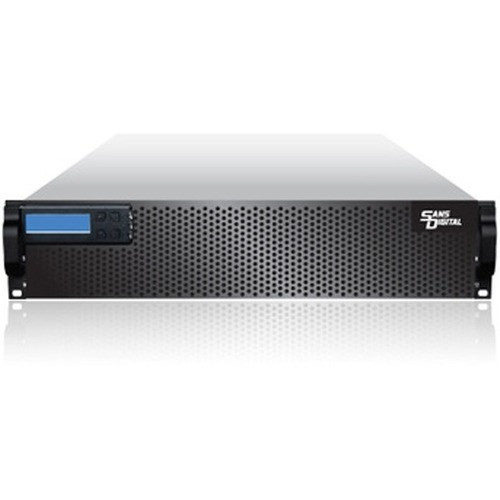

Sans Digital AccuSTOR AS212X12R Drive Enclosure - 12Gb/s SAS Host Interface - 2U Rack-mountable - KT-AS212X12R
Manufacturer: Sans Digital
Manufacturer Part Number: KT-AS212X12R
Manufacturer Website Address: http://www.sansdigital.com
Brand Name: Sans Digital
Product Line: AccuSTOR
Product Model: AS212X12R
Product Name: AccuSTOR AS212X12R Drive Enclosure
Marketing Information:
The AccuSTOR AS212X12R series is a high density 2U rackmount designed for storage hungry applications, and accommodates up to 96TB of storage space. Supporting latest SAS 12G technology, AS212X12R provide 6G solution for 12G SAS or 6G SATA drives. By utilizing the latest SAS expander technology, the AS212X12R supports up to 12 SAS or SATA drives using only one mini-SAS HD cable (SATA drives requires optional MUX board). A built-in SAS expansion port enables the system to connect up to 7 units or 84 HDD drives daisy-chained together, up to 672TB. With a high performance RAID controller card, the AS212X12R is capable of delivering over 2300MB/s in read and 2000MB/s write performance, doubling the existing 6G SAS expander bandwidth. System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS HD cable and hard drives tray modules. Build-in with single controller with dual 12G SAS channel, and can upgrade to redundant controller in the future. The AS212X12R is an ideal storage expansion solution for servers or high performance video editing workstations. Supported in Windows, MAC and Linux, including various file system such as ZFS.
AS212X12R functions as expansion unit of AR212X12R and AR212F16R. With AR212X12R and AR212F16R as a RAID head unit and connect up to 7 units of AS212X12R, it will provide up to 96 bays, or 768TB of storage for 12G SAS and Fibre Channel 16Gb/s hardware RAID storage.
Product Type: Drive Enclosure
Technical Information
Number of Hard Drives Supported: 12
Number of Hard Drives Installed: No
Number of Solid State Drive Supported: 12
Number of Solid State Drive Installed: No
Controllers
Non-RAID Mode: JBOD
I/O Expansions
Number of Total Expansion Bays: 12
Number of 2.5"/3.5" Bays: 12
Interfaces/Ports
Host Interface: 12Gb/s SAS
Physical Characteristics
Cooling Fan: Yes
Form Factor: Rack-mountable
Rack Height: 2U
Miscellaneous
Compatibility: Sans Digital AccuRAID Storage Systems:
- AR212X12R
- AR212F16R
