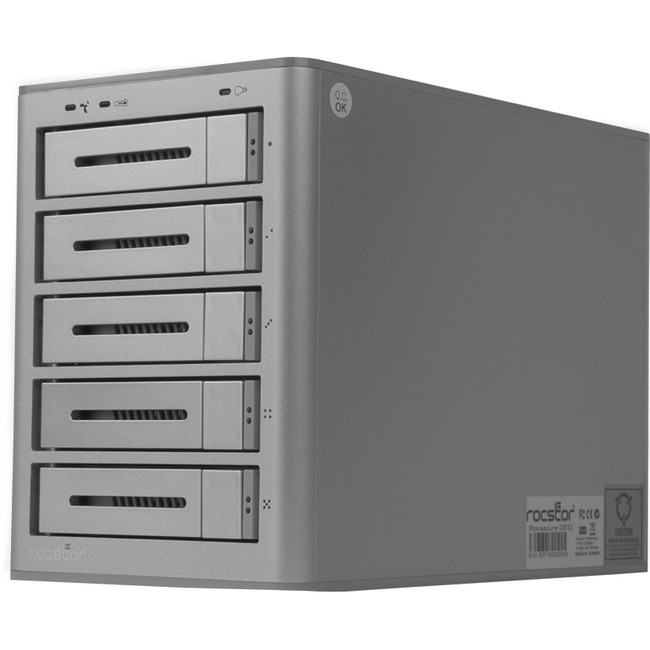

Rocstor Rocsecure DE52 60TB Encryption DAS Array - Real-time Hardware AES-256 - 5 x HDD - E63267-01

Specifications
Manufacturer: Rocstorage, Inc
Manufacturer Part Number: E63267-01
Manufacturer Website Address: http://www.rocstor.com
Brand Name: Rocstor
Product Line: Rocsecure
Product Model: DE52
Product Name: Desktop Encryption RAID Storage
Marketing Information:

Rocsecure DE52 Hardware Encrypted AES-256 RAID 5-Bay Hot-Swap USB 3.0, Firewire 800, or eSata Storage Solution

Rocsecure® DE52 Volume Raid solution is the most reliable real-time hardware encrypted data solutions available. Secure your valuable data with Advanced Encryption Standard Algorithm AES-256 encryption when regulatory mandates or the need to protect intellectual property from security breaches dictate. Rocsecure DE52 RAID Storage securely encrypts all data in real-time as it is written to the drive. You have the comfort of knowing that all data contained on these drives is protected against unauthorized access, including hardware theft, failure of a drive, or drive retirement. The encrypted RAID storage data cannot be accessed without the use of a unique Secure Key Token Authentication. The Rocsecure DE52 is authenticated by a digital key token, which is inserted for authentication, and removed soon after the device is authenticated, and then ready for secure data transfer.

The Rocsecure DE52 storage is a powerful large capacity 5-Bay Volume RAID system that utilizes as many as five 3.5" hard drives and it is simple and easy to deploy. This high-performance, high-capacity AES-256 encrypted storage solution offers RAID 0, 1, 5, 10, or JBOD configurations. With up to five 3.5" SATA hard drives, you can connect the Rocsecure DE52 via USSB 3.0, Firewire 800, or eSATA port cable (included) to any PC or Mac®. With AES 256-bit Real-time Hardware Encryption engine. the DE52 requires one Rocstor Token Authentication Key per RAID volume for all five drives in the RAID. There is no software to install or required. All the data will be encrypted seamlessly in real-time and securely stored.

Key Features

• AES-256 Real-Time Hardware Encryption Validated Cryptographic Modules

• Large Capacity Storage Solutions, up to five 3.5" SATA hard drives

• One unique Rocstor Token Key for access to the Volume Encryption RAID Storage

• Built-in Hardware RAID 0, 1, 5, 10, or JBOD* accelerator set for high performance access. (Not Software RAID)

• Drive Hot-Swap support

• Incorporates SATA hard drive

• RAID diagnostic via LED lights.

• OS independent. Compatible with both Windows® and Mac® operating systems.

• Connect via USB 3.0, Firewire 800/iLink, eSATA port (Cables Included)

• Includes two (3) Rocstor Key Tokens

• Includes all necessary cables

Encryption Features:

• Advanced Encryption Standard Algorithm AES-256 bit key strength Real-time encryption (virtually zero time in encrypting and decrypting the data)

• Hardware encryption (not software imbedded in a chip)

• Authentication: Secure key token

• No software or GUI involved is required for installation (for encryption or authentication)

Product Type: DAS Storage System
Storage
Number of Hard Drives Supported: 5
Number of Hard Drives Installed: 5
Total Hard Drive Capacity Installed: 60 TB
Number of Solid State Drive Supported: 5
Number of Solid State Drive Installed: No
I/O Expansions
Number of Total Expansion Bays: 5
Number of 2.5"/3.5" Bays: 5
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 3, 5, 10, 0+1, LARGE, Clone Mode (N-Way Mirror), JBOD
Interfaces/Ports
Drive Interface: Serial ATA/600
Host Interface:

• eSATA
• FireWire/i.LINK 800
• USB 3.0

eSATA: Yes
Physical Characteristics
Height: 6.5"
Width: 4.9"
Depth: 9.8"
Form Factor: Tower
Weight (Approximate): 14.55 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
