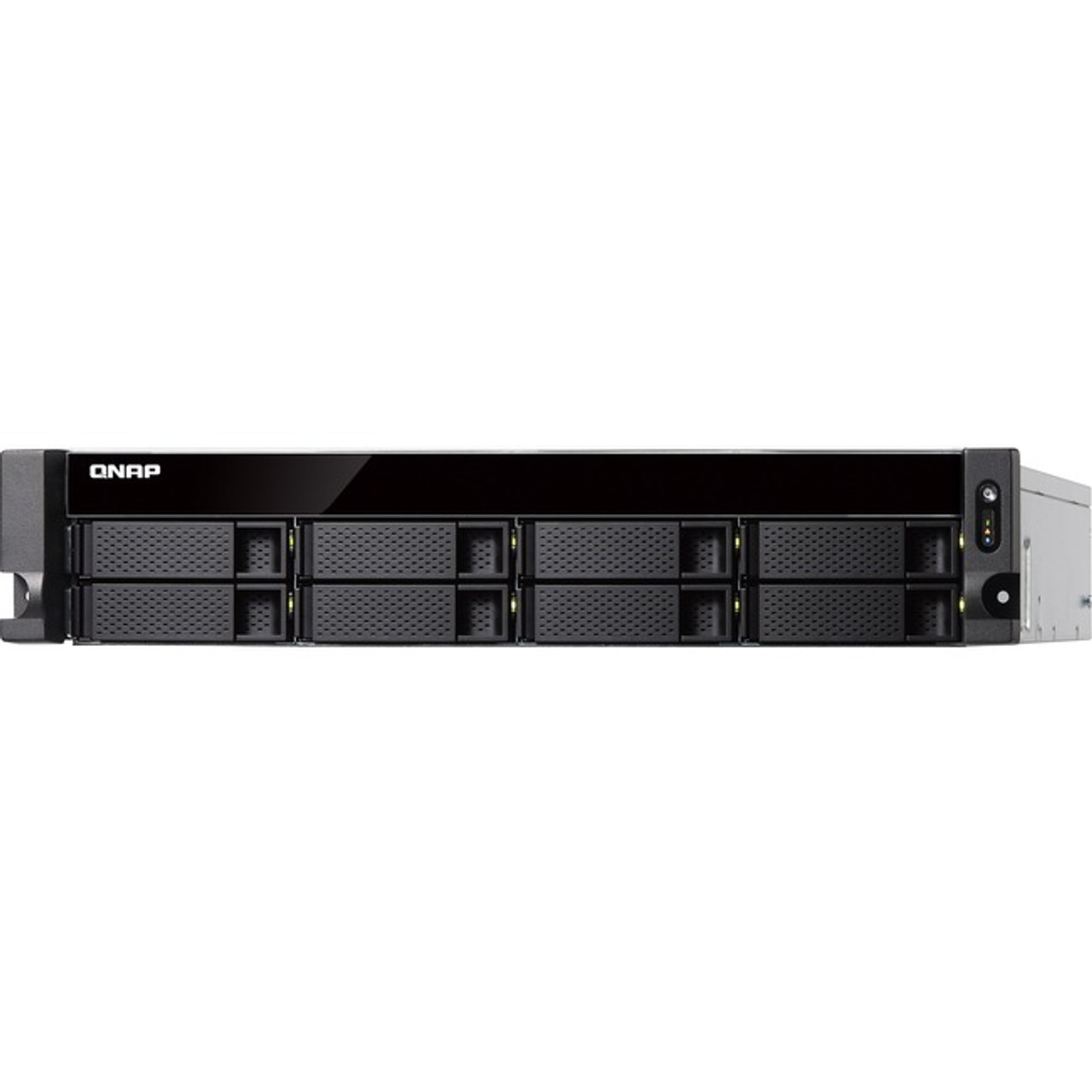

QNAP TVS-872XU-I3-4G SAN/NAS Storage System - TVS-872XU-I3-4G-US

Specifications
Manufacturer: QNAP Systems
Manufacturer Part Number: TVS-872XU-I3-4G-US
Manufacturer Website Address: http://www.qnap.com
Brand Name: QNAP
Product Series: TVS-x72XU
Product Model: TVS-872XU-I3-4G
Product Name: TVS-872XU-I3-4G SAN/NAS Storage System
Marketing Information:

8th Gen Intel® Core™ processors. Built-in Mellanox® ConnectX®-4 Lx 10GbE Controller. iSER supported.

Designed for diversified business IT environments, the TVS-872XU features an 8th generation Intel® Core™ processor, Mellanox® ConnectX®-4 Lx 10GbE controller, and PCIe expansion for 25GbE / 40GbE connectivity to boost intensive large file sharing, heavily-loaded backups, or virtualization applications. PCIe expandability also allows for installing graphics cards to empower AI workflows and video transcoding, and the 4K HDMI 2.0 output can display surveillance videos on a monitor or TV to improve surveillance management.

• Two 10GbE SFP+ SmartNIC ports with iSER support accelerate large file sharing and intensive data transfer.

• PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.

• 4K media playback and online transcoding. Directly view on a TV/monitor via HDMI 2.0 output (up to 4K @60Hz).

• Software-defined SSD RAID extra over-provisioning (from 1% to 60%) optimizes SSD random write speeds and extends SSD lifespan.

• Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.

• Comprehensive security management, providing a security portal for your NAS and helping you to stay informed of NAS status at all times.

8th Gen Intel® Core™ processors with more cores and power, and up to 64 GB RAM

The TVS-872XU features an 8th Gen Intel® Core™ i3-8100 quad-core 3.6 GHz processor and up to 64 GB DDR4 memory, delivering higher performance to help you accomplish more tasks efficiently. It provides four Gigabit and two 10GbE SFP+ LAN ports, supports SATA 6Gb/s drives, and features AES-NI encryption for delivering high performance while also maintaining the security of your data.

Dual-channel memory delivers power-smart performance

The TVS-872XU supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TVS-872XU can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64 GB RAM) of the TVS-872XU for greater performance to tackle dynamically-changing workloads such as virtualization.

Robust. Durable. Expandable.

The TVS-872XU features high-quality hardware and expandable architecture, enabling optimum performance and flexibility to fulfill business needs in performance and application diversification.

Dual 10GbE connectivity optimizes high-speed data transfer and VMware virtualization with iSER

The TVS-872XU provides two 10GbE SFP+ ports that use the Mellanox® ConnectX®-4 Lx SmartNIC controller. They support the iSCSI Extensions for RDMA (iSER) protocol, allowing data to bypass general network drivers, the socket layer, and to directly enter memory buffers of the ESXi server and storage to offload CPU workloads. When both the VMware® server and the TVS-872XU support iSER, it can provide up to 60% increased random read/write performance and 50% decreased latency, providing an essential tool to optimize demanding virtualization applications.

Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 8
Number of Hard Drives Installed: No
Number of Solid State Drive Supported: 8
Number of Solid State Drive Installed: No
Flash Memory Capacity: 4 GB
Processor & Chipset
Processor Manufacturer: Intel
Processor Type: Core i3
Processor Model: i3-8100
Processor Core: Quad-core (4 Core)
Processor Speed: 3.60 GHz
Memory
Standard Memory: 4 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 8
Number of 2.5"/3.5" Bays: 8
Number of Total Expansion Slots: 6
Expansion Slot Type:

• SFP+
• PCI Express x4
• PCI Express 3.0 x8
• PCI Express 3.0 x4

Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD
Interfaces/Ports
HDMI: Yes
Total Number of USB Ports: 6
Network (RJ-45): Yes
Software
Operating System: QTS 4.4.0
Management & Protocols
Protocols:

• TCP/IP
• IPv4
• IPv6
• DHCP
• NAT
• DDNS
• HTTP
• HTTPS
• WEBDAV
• SSL/TLS
• Telnet
• FTP
• CIFS/SMB
• AFP
• iSCSI
• IPMI
• SNMP
• LDAP
• UPnP
• SNMPv2
• SNMPv3
• FXP
• MTP
• RTSP
• PPTP
• L2TP
• IPSec
• DNS
• SMTP

Power Description
Maximum Power Supply Wattage: 350 W
Physical Characteristics
Height: 3.5"
Width: 19"
Depth: 22.1"
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 24.10 lb
