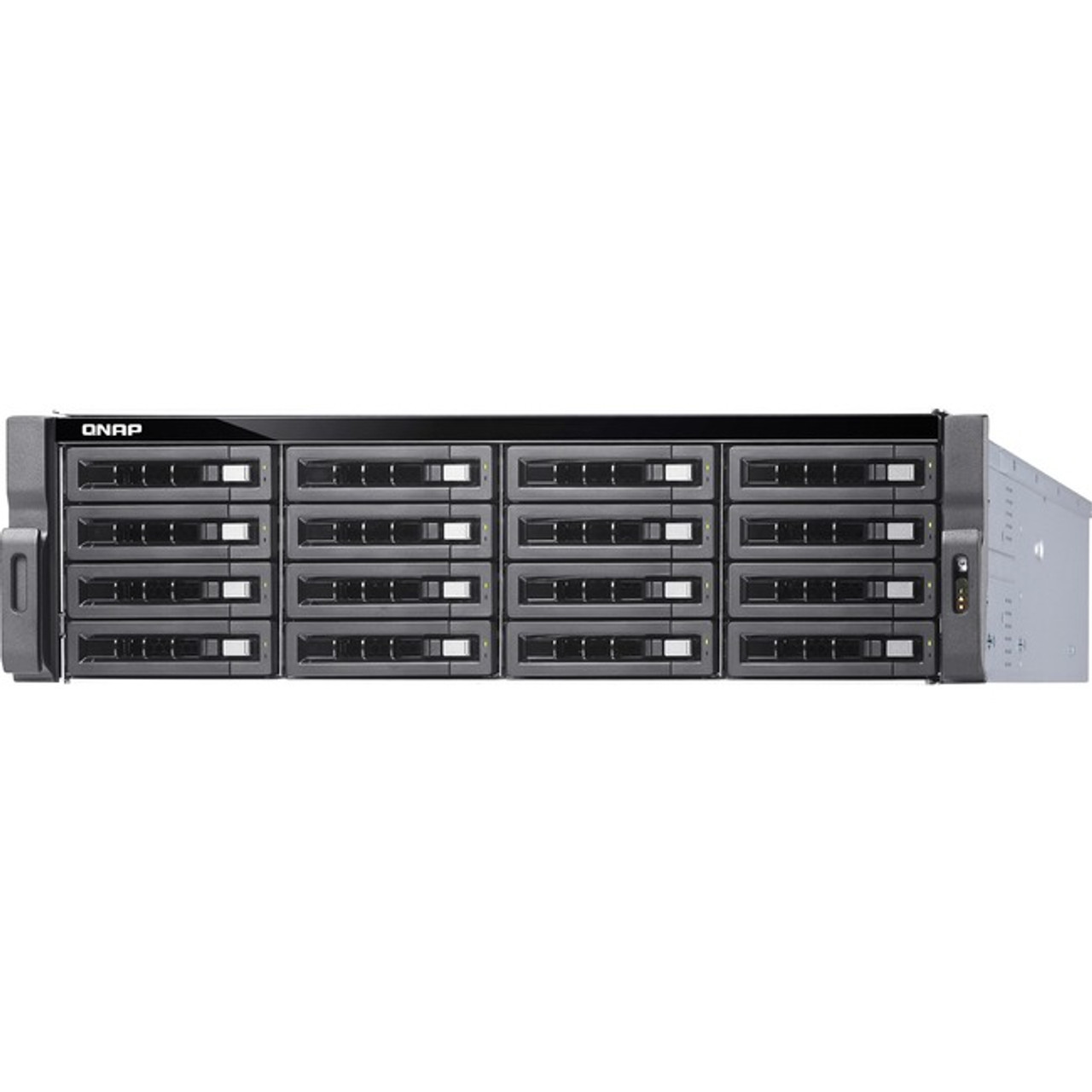

QNAP TS-1677XU-RP-2600-8G SAN/NAS Storage System - TS-1677XU-RP-2600-8G-US

Specifications
Manufacturer: QNAP Systems
Manufacturer Part Number: TS-1677XU-RP-2600-8G-US
Manufacturer Website Address: http://www.qnap.com
Brand Name: QNAP
Product Series: TS-x77XU
Product Model: TS-1677XU-RP-2600-8G
Product Name: TS-1677XU-RP-2600-8G SAN/NAS Storage System
Marketing Information:

Ryzen™-based rackmount NAS with up to 8 cores/16 threads and integrated dual 10GbE SFP+ ports to optimize system performance

Powered by AMD's powerful Ryzen™ processor, the TS-1677XU-RP is capable of boosting virtual machine performance with up to 8 cores/16 threads and Turbo Core up to 4.1 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-1677XU-RP. The TS-1677XU-RP also features a redundant power supply to ensure maximum system uptime.

Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
PCIe expandability allows for installing 10GbE/40GbE adapters, PCIe NVMe SSD, graphics cards, USB 3.1 Gen 2 (10Gbps) cards, or wireless network cards.
Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
RAID 50/60 is recommended for NAS with over 6 disks to strike a balance between capacity, protection, and performance

Top-class hardware engineering with high I/O expandability

The hardware design of the TS-1677XU-RP provides exceptional system performance and expandability to fulfill diverse application requirements.

Absolute performance with AMD Ryzen™ and up to 64GB RAM

Powered by a high-performance AMD Ryzen™ 7 2700, AMD Ryzen™ 5 2600 or AMD Ryzen™ 3 1200 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-1677XU-RP delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-1677XU-RP.

Dual-channel Memory to deliver power-smart performance

The TS-1677XU-RP supports dual-channel DDR-4 memory and four Long-DIMM slots. When using paired memory modules, the TS-1677XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64GB RAM) of the TS-1677XU-RP, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.

Extend NAS functionality with PCIe slots

The TS-1677XU-RP features four PCIe slots that allow for installing 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or compatible wireless network cards for greater application potential.

10GbE/ 40GbE adapters

Install 10GbE/40GbE adapters to support lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.QM2 card with M.2 SSD/10GbE support

QM2 card with M.2 SSD/10GbE support

Install QNAP's innovative QM2 card to add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.

Wireless network cards

Install QNAP's wireless network card (QWA-AC2600) to work with WirelessAP Station to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.

Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 16
Number of Hard Drives Installed: No
Number of Solid State Drive Supported: 16
Number of Solid State Drive Installed: No
Processor & Chipset
Processor Manufacturer: AMD
Processor Type: Ryzen 5
Processor Model: 2600
Processor Core: Hexa-core (6 Core)
Processor Speed: 3.40 GHz
Memory
Standard Memory: 8 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 16
Number of 2.5"/3.5" Bays: 16
Number of Total Expansion Slots: 6
Expansion Slot Type:

• SFP+
• PCI Express 3.0 x8
• PCI Express 3.0 x4

Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 4
Network (RJ-45): Yes
Software
Operating System: QTS 4.3.4
Management & Protocols
Protocols:

• DNS
• Telnet
• DLNA
• IPv6
• FTPS
• WEBDAV
• IPMI
• SSL/TLS
• AFP
• CIFS
• HTTPS
• FTP
• DHCP
• SMB
• SSH
• FXP
• SMTP
• LDAP
• iSCSI
• IPv4
• UPnP
• TCP/IP
• PPTP
• HTTP
• CIFS/SMB
• DDNS
• RSync
• SNMP

Power Description
Maximum Power Supply Wattage: 500 W
Physical Characteristics
Height: 5.1"
Width: 18.9"
Depth: 22.6"
Form Factor: Rack-mountable
Rack Height: 3U
Weight (Approximate): 37.83 lb
