Product Description

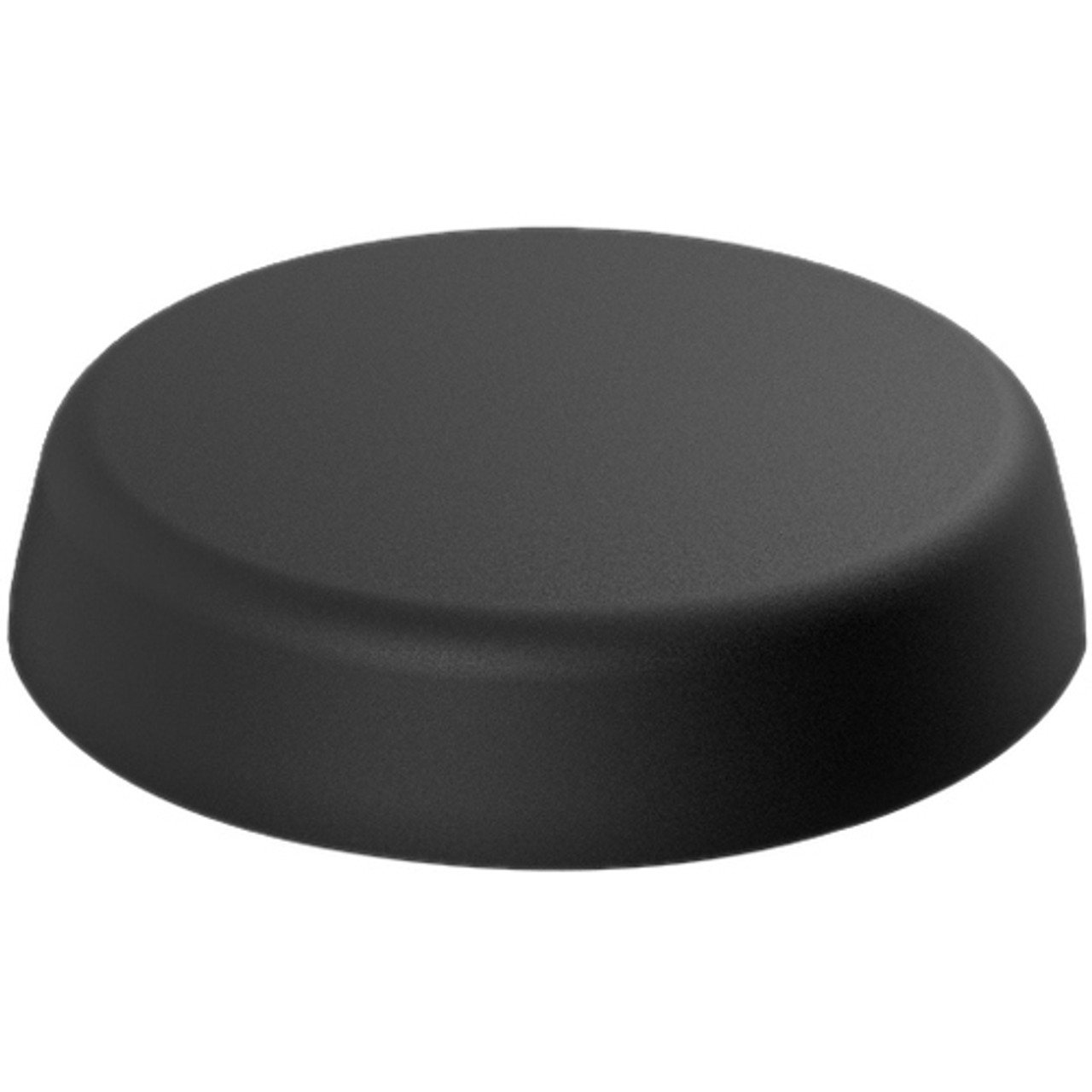

Panorama Antennas Low Profile MiMo WiFi Antenna - LPM4-24-58-5RPSP
Specifications
Manufacturer: Panorama Antennas Ltd
Manufacturer Part Number: LPM4-24-58-5RPSP
Manufacturer Website Address: http://www.panorama-antennas.com
Brand Name: Panorama Antennas
Product Model: LPM4-24-58
Product Name: Low Profile MiMo WiFi Antenna
Marketing Information:
Product Type: Antenna
Technical Information
Directivity: Omni-directional
Frequency:
Antenna Gain: 6 dBi
Interfaces/Ports
Connector Type: RP-SMA
Physical Characteristics
Color: Black
Height: 1.2"
Diameter: 4.5"
Form Factor: Panel
Miscellaneous
Application/Usage:
Manufacturer: Panorama Antennas Ltd
Manufacturer Part Number: LPM4-24-58-5RPSP
Manufacturer Website Address: http://www.panorama-antennas.com
Brand Name: Panorama Antennas
Product Model: LPM4-24-58
Product Name: Low Profile MiMo WiFi Antenna
Marketing Information:
The L[G]M[X]-24-58 range has been designed to provide MiMo dual-band WiFI coverage in an ultra low profile package. The compact, robust low-profile housing contains up to four antenna elements with effective isolation and low correlation covering 2.4-2.5/4.9-6GHz.
- Ultra Low Profile
- Up to 4 x 4 MiMo Dual Band WiFi
- Optional GPS/GNSS
- Meets IP69K and IK10
- Available in Black or White
- 5m Flame Retardant CS32 cables with Reverse Polarity SMA Plugs
The antenna is designed to be panel mounted on vehicles or devices and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant CS32 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.
The LGM variants have an integrated GPS/GNSS module with 26dB LNA gain. The antenna is available with a black or white radome.
Product Type: Antenna
Technical Information
Directivity: Omni-directional
Frequency:
- 1.56 GHz to 1.61 GHz
- 2.40 GHz
- 5 GHz
- 2.40 GHz to 2.50 GHz
- 4.90 GHz to 6 GHz
Antenna Gain: 6 dBi
Interfaces/Ports
Connector Type: RP-SMA
Physical Characteristics
Color: Black
Height: 1.2"
Diameter: 4.5"
Form Factor: Panel
Miscellaneous
Application/Usage:
- Wireless Data Network
- GPS
