Product Description

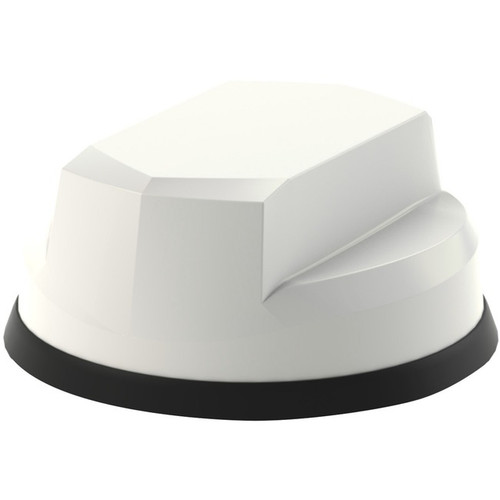

Panorama Antennas LG-IN2457 Antenna - LG-IN2457-W
Manufacturer: Panorama Antennas Ltd
Manufacturer Part Number: LG-IN2457-W
Manufacturer Website Address: http://www.panorama-antennas.com
Brand Name: Panorama Antennas
Product Model: LG-IN2457
Product Name: LG-IN2457 Antenna
Marketing Information:
The LG-IN2457 is a high performance 2x2 MiMo LTE, 2x2 MiMo Dual Band WiFi and GPS/GNSS active antenna covering 617-960/1710-6000MHz.
- Low profile antenna with 5 functions in 1
- 2x2 MiMo 4G/5G LTE cellular, 2x2 MiMo Dual Band WiFi and GPS/GNSS in one housing
- Kits with extension cables available for a range of LTE routers
- Suitable for Cradlepoint COR IBR900 Series Routers
The LG-IN2457 range has been designed to provide 2x2 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 2x2 MiMo WiFi 2.4/5.0GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
Product Type: Antenna
Technical Information
Directivity: Omni-directional
Frequency:
- 617 MHz to 960 MHz
- 1.71 GHz to 6 GHz
- 2.40 GHz
- 4.90 GHz to 6 GHz
- 1.56 GHz to 1.61 GHz
Antenna Gain: 9 dBi
Interfaces/Ports
Connector Type:
- SMA
- RP-SMA
Physical Characteristics
Color: White
Height: 3.1"
Diameter: 7.1"
Form Factor: Panel
Miscellaneous
Application/Usage:
- Wireless Router
- Cellular Network
- GPS
- Wireless Data Network
Compatibility: Cradlepoint COR IBR900 Series Routers
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- REACH
TAA Compliant: Yes
