Product Description

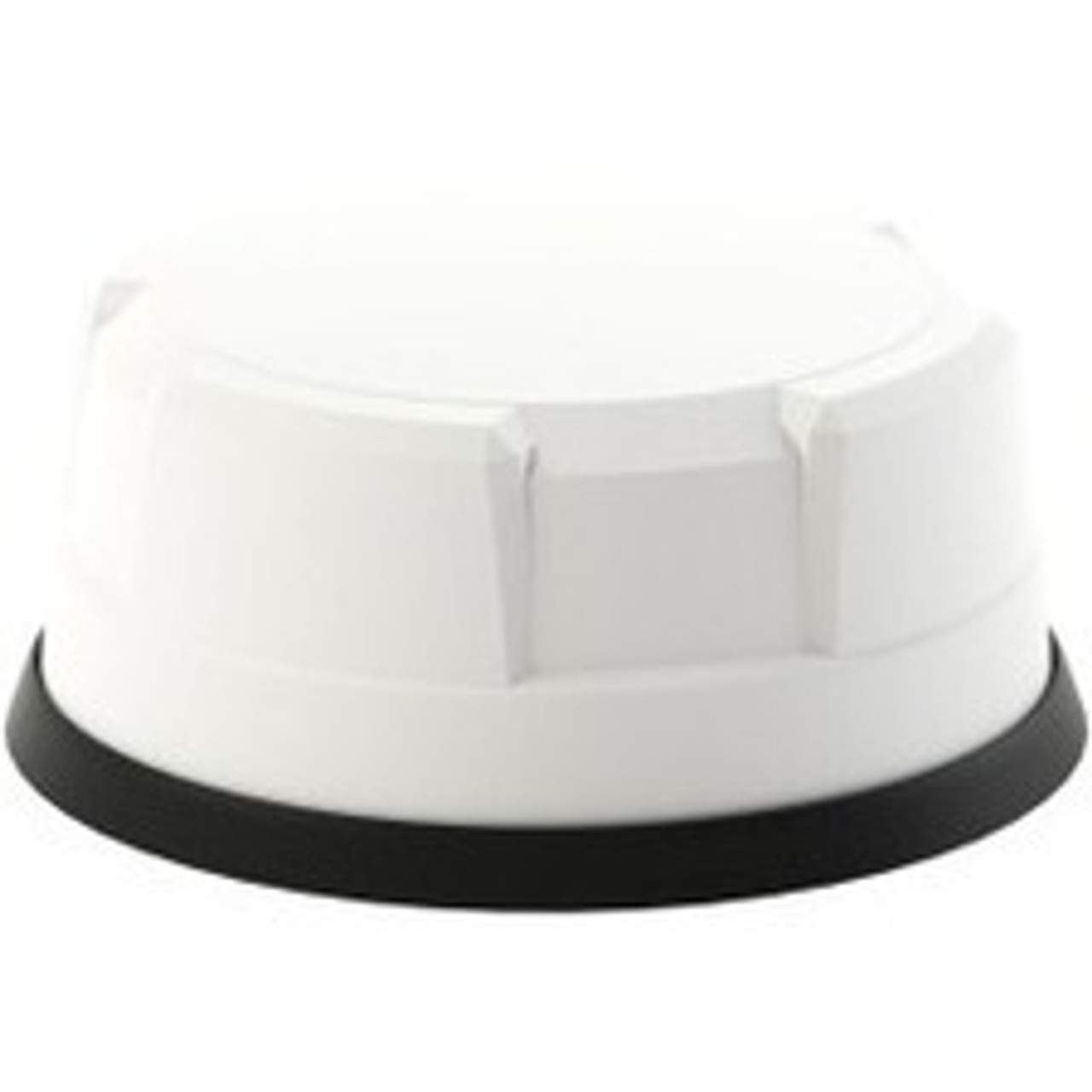

Panorama Antennas LG-IN2444 Antenna - LG-IN2444-W
Manufacturer: Panorama Antennas Ltd
Manufacturer Part Number: LG-IN2444-W
Manufacturer Website Address: http://www.panorama-antennas.com
Brand Name: Panorama Antennas
Product Model: LG-IN2444
Product Name: LG-IN2444 Antenna
Marketing Information:
The LG-IN2444 is a high performance 4x4 MiMo LTE and GPS/GNSS antenna covering 617-960/1710-6000MHz.
- Low profile antenna with 5 functions in 1
- 4x4 MiMo 4G/5G LTE cellular and GPS/GNSS in one housing
- Kits with extension cables available for a range of LTE routers
- Suitable for Cradlepoint COR IBR1700 Series Routers
The LG-IN2444 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS in a compact low profile housing.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in black or white and meets IK10 for vandal resistance and IP69K for ingress protection.
The integrated GPS/GNSS module supports GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.
LG-IN2444 is supplied as a complete plug and play kit with integrated 5m (16') ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS.
Product Type: Antenna
Technical Information
Directivity: Omni-directional
Frequency:
- 617 MHz to 960 MHz
- 1.71 GHz to 6 GHz
- 1.56 GHz to 1.61 GHz
Antenna Gain: 9 dBi
Interfaces/Ports
Connector Type: SMA
Physical Characteristics
Color: White
Height: 3.1"
Diameter: 7.1"
Form Factor: Panel
Miscellaneous
Application/Usage:
- Wireless Router
- Cellular Network
- GPS
- GLONASS
Compatibility: Cradlepoint COR IBR1700 Series Routers
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- REACH
TAA Compliant: Yes
