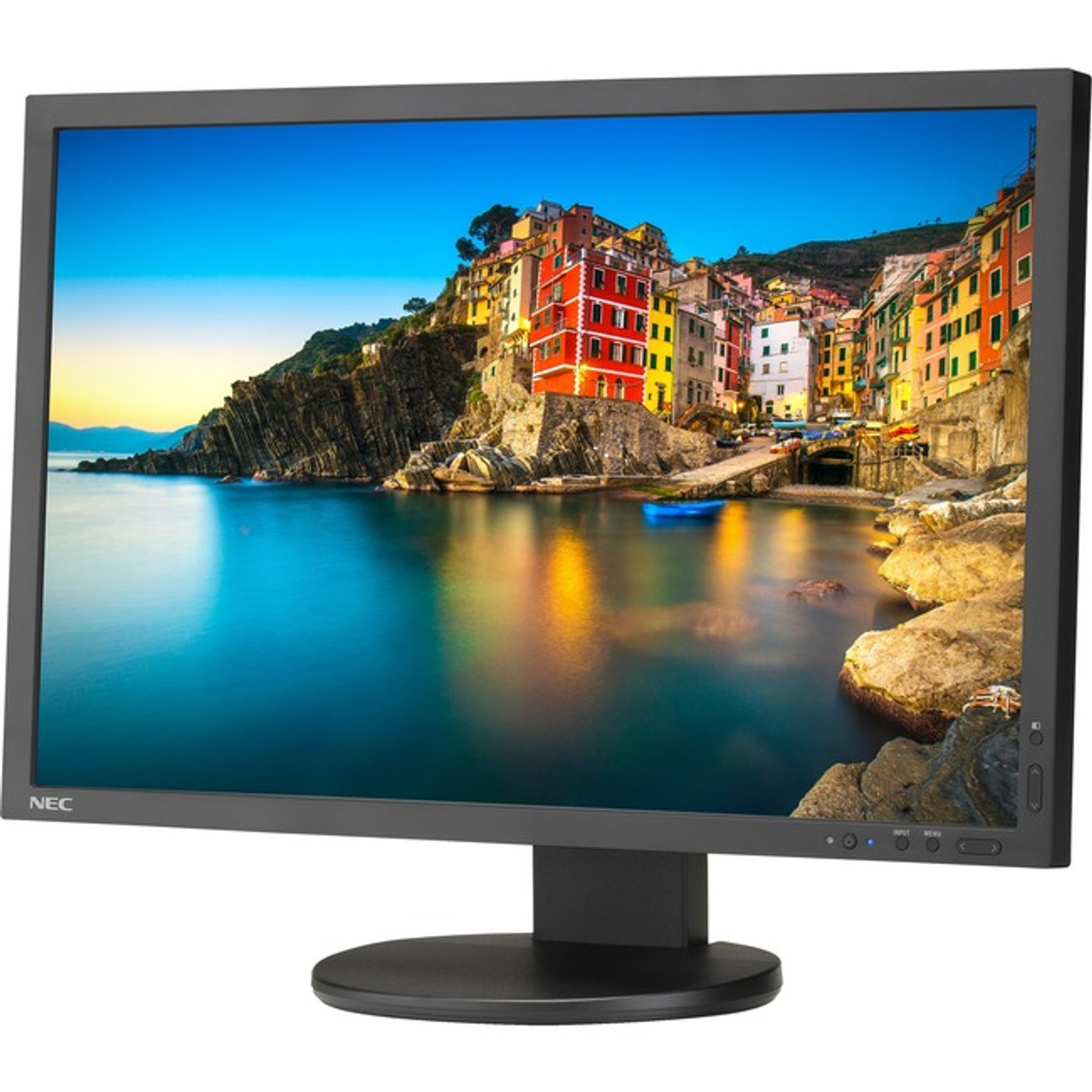

NEC Display SpectraViewII P243W-BK-SV 24.1" WUXGA WLED LCD Monitor - 16:10 - P243W-BK-SV

Specifications
Manufacturer: NEC Display Solutions
Manufacturer Part Number: P243W-BK-SV
Manufacturer Website Address: http://www.necdisplay.com
Brand Name: NEC Display
Product Line: SpectraViewII
Product Model: P243W-BK-SV
Product Name: SpectraViewII P243W-BK-SV Widescreen LCD Monitor
Marketing Information:

Designed to handle sRGB graphics projects with confidence, the LED-backlit P243W, a 24" widescreen monitor that is ideal for web, high-end desktop and photography applications. This model utilizes an IPS panel for great imaging performance. Offering 99.8% coverage of sRGB color gamut and 73.1% of NTSC, the P243W provides professional-grade benefits, such as an internal 14-bit 3D programmable lookup tables (LUTs), DisplayPort connectivity and built-in USB hub. The included SpectraViewII software and MDSVSENSOR3 color calibration sensor ensure that colors are rendered accurately.

• AH-IPS LCD panel with 99.8% coverage of sRGB color space

• Superior screen performance (1000:1 contrast ratio, 1920 x 1200 native resolution, 350 cd/m² brightness)

• Supports internal programmable 14-bit 3D lookup tables (LUTs) for calibration

• 2-port USB hub with DisplaySync ProTM controls two computers with only one keyboard and mouse

• Five programmable Picture Mode profiles for quick access to multiple color spaces

• Picture in Picture and Picture by Picture modes increase productivity by displaying two sources simultaneously

• Wide connectivity includes DisplayPort, VGA, HDMI and DVI-D inputs

• SpectraViewII Color Calibration Solution, which includes software and colorimeter, helps the display achieve accurate, consistent and repeatable color performance

• DisplayPort cable compatibility notice

• NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations

Product Type: LCD Monitor
Technical Information
Number of Screens: 1
Viewable Screen Size: 24.1"
Screen Mode: WUXGA
Response Time: 8 ms
Aspect Ratio: 16:10
Pixel Pitch: 10.6 mil
Backlight Technology: WLED
Horizontal Frequency: 31.50 kHz to 118.40 kHz
Vertical Frequency: 50 Hz to 85 Hz
Video
Maximum Resolution: 1920 x 1200
Color Supported: 1.07 Billion Colors
Native Contrast Ratio: 1,000:1
Brightness: 350 Nit - Typical
Color Gamut:

• 73.1% NTSC
• 99.8% sRGB
• 99% Adobe RGB

Interfaces/Ports
DVI: Yes
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
Power Description
Operating Power Consumption: 25 W
Standby Power Consumption: 200 mW
Physical Characteristics
VESA Mount Compatible: Yes
Height: 14.2"
Width: 21.9"
Depth: 2.3"
Height with Stand: 20.80"
Width with Stand: 21.90"
Depth with Stand: 9.20"
Weight (Approximate): 11.90 lb
Weight with Stand (Approximate): 18.08 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
TAA Compliant: No
