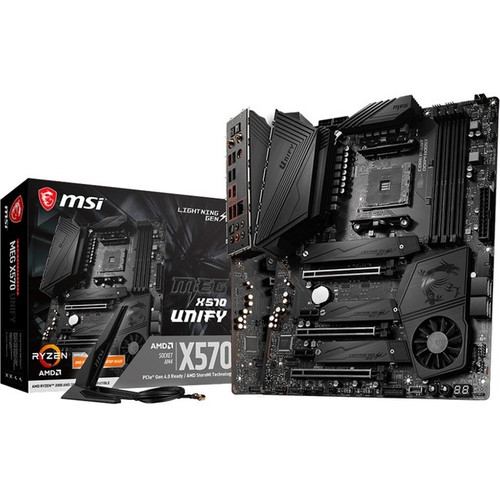

MSI MEG X570 UNIFY Desktop Motherboard - AMD Chipset - Socket AM4 - X570UNIFY

Specifications
Manufacturer: MSI
Manufacturer Part Number: X570UNIFY
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Line: MEG
Product Model: X570 UNIFY
Product Name: MEG X570 UNIFY Desktop Motherboard
Marketing Information: TAILORED FOR HARDCORE GAMERS AND ENTHUSIAST USERS. MEG X570 UNIFY EMPHASIZING ON THE TRUE VALUE OF THE MOTHERBOARD, ENHANCING NOT ONLY THE THERMAL BUT ALSO POWER SOLUTION. WHOLE BLACK AND UV PRINTING SHINING REFLECTION SYMBOLIZE A MYSTERIOUS AND HIGH QUALITY IMAGE. PURE BLACK, PURE PERFORMANCE, JOIN THE DARK SIDE
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported:

• Ryzen 3
• Ryzen 5
• Ryzen 7
• Ryzen 9

Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory: 128 GB
Memory Speed Supported:

• 1.87 GHz
• 2.13 GHz
• 2.40 GHz
• 2.67 GHz
• 2.80 GHz
• 2.93 GHz
• 3 GHz
• 3.07 GHz
• 3.20 GHz
• 2.67 GHz (O.C.)
• 2.80 GHz (O.C.)
• 2.93 GHz (O.C.)
• 3 GHz (O.C.)
• 3.07 GHz (O.C.)
• 3.20 GHz (O.C.)
• 3.47 GHz (O.C.)
• 3.60 GHz (O.C.)
• 3.73 GHz (O.C.)
• 3.87 GHz (O.C.)
• 4 GHz (O.C.)
• 4.13 GHz (O.C.)
• 4.27 GHz (O.C.)
• 4.40 GHz (O.C.)
• 4.53 GHz (O.C.)
• 4.60 GHz (O.C.)

Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 10

Video
Onboard Video: No
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 2
S/PDIF: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
