Product Description

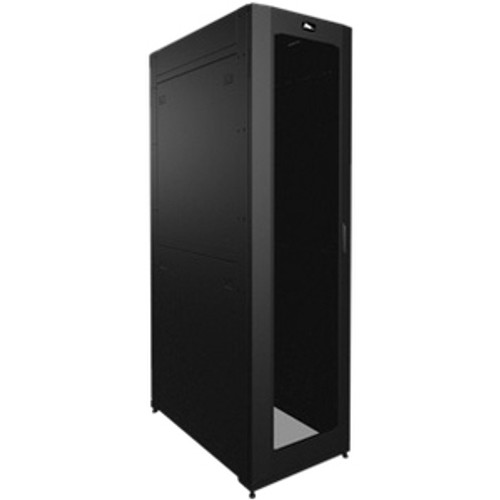

Middle Atlantic SNE Series Rack, SNE30D-4536-P1 - SNE30D-4536-P1
Manufacturer: Legrand Group
Manufacturer Part Number: SNE30D-4536-P1
Manufacturer Website Address: http://www.legrand.us
Brand Name: Middle Atlantic
Product Series: SNE
Product Model: SNE30D-4536-P1
Product Name: SNE Series Rack, SNE30D-4536-P1
Marketing Information:
The SNE Series Digital is configured for digital (IP based) security systems consisting of high-density cabling, network equipment, and servers. Optional Tool-Free Lever Lock™ system accommodates small devices including encoders, power supplies, and Access Control Systems. Fully configured Security Network Enclosure with passive ventilation for data centers o 70% open area vented front door o Pair of split flush mount locking side panels o 2 pair of adjustable cage-nut rackrail (including 6mm hardware) o Lever Lock™ compatible (accepts all Lever Lock™ vertical 21" accessories) o 30" width o 36" overall depth o 45 rackspace o 100 6mm cage-nuts/rack screws included SNE Series Digital with passive cooling (front to rear) 70% open area split rear door Solid top with brush cable pass-through
- Lever Lock™ compatible (accepts all 21" vertical accessories)
- Configured for passive front-to-back cooling
- UTL/ETL listed and seismic certified
- Includes 70% open front door and 70% open area split rear door
- Includes solid top with brush cable pass-through
- Includes 2 pair of adjustable cage-nut rackrail
- Includes 100 6mm cage nuts and rack screws
- Includes 4 leveling feet
- Includes 4 casters
Product Type: Rack Cabinet
Technical Information
Application/Usage:
- Server
- LAN Switch
- Patch Panel
Physical Characteristics
Form Factor: Floor Standing
Color: Black Powder Coat
Material:
- Steel
- Steel Rail
Dynamic/Rolling Weight Capacity: 1600 lb
Static/Stationary Weight Capacity: 12000 lb
Height: 84.8"
Width: 30"
Depth: 37.2"
Rack Height: 45U
Rack Width: 19"
Rack Depth: 32.48"
Miscellaneous
Assembly Required: No
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- LEED
- ECO PASSPORT
- GREENGUARD Gold
