Product Description

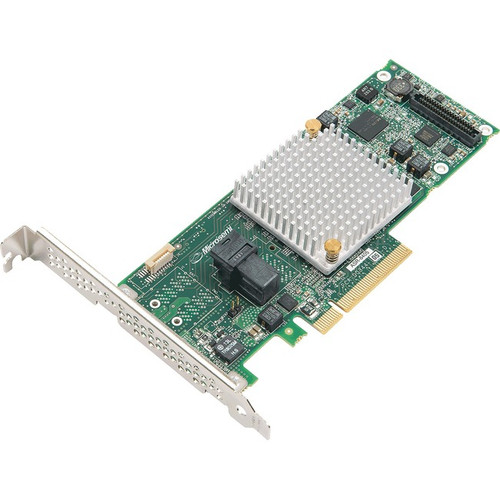

Microsemi Adaptec RAID 8405 Single (Cables not included with product) - 2277600-R
Specifications
Manufacturer: Microsemi Corporation
Manufacturer Part Number: 2277600-R
Manufacturer Website Address: http://www.microsemi.com
Brand Name: Microsemi Adaptec
Product Name: RAID 8405 Single
Marketing Information: Microsemi Adaptec® Series 8 Family: 81605Z/Q, 8885/Q, 8805, 8405 12 Gbps PCIe Gen3 High-Port SAS/SATA RAID Adapters
Maximum Performance
Data center, IT, and general consumer server environments have a broad range of requirements-from basic connectivity to extreme data storage capacities. The effectiveness at which their data is accessed and protected is crucial to their ultimate success. The 12 Gbps PCIe Gen3 Series 8 RAID adapters, coupled with 12 Gbps SSDs, provide maximum read/write bandwidth and IOPS for the most performance-hungry transactional and database applications.
Product Type: SAS Controller
Technical Information
Host Interface: PCI Express 3.0 x8
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels:
Memory
Cache Memory: 1 GB
Interfaces/Ports
Total Number of SAS Ports: 4
Number of SAS Ports (Internal): 4
SAS Connector Details: 1 SFF-8643
Physical Characteristics
Height: 2.5"
Width: 6.6"
Form Factor: Plug-in Card
Miscellaneous
Platform Supported:
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Microsemi Corporation
Manufacturer Part Number: 2277600-R
Manufacturer Website Address: http://www.microsemi.com
Brand Name: Microsemi Adaptec
Product Name: RAID 8405 Single
Marketing Information: Microsemi Adaptec® Series 8 Family: 81605Z/Q, 8885/Q, 8805, 8405 12 Gbps PCIe Gen3 High-Port SAS/SATA RAID Adapters
Maximum Performance
Data center, IT, and general consumer server environments have a broad range of requirements-from basic connectivity to extreme data storage capacities. The effectiveness at which their data is accessed and protected is crucial to their ultimate success. The 12 Gbps PCIe Gen3 Series 8 RAID adapters, coupled with 12 Gbps SSDs, provide maximum read/write bandwidth and IOPS for the most performance-hungry transactional and database applications.
Product Type: SAS Controller
Technical Information
Host Interface: PCI Express 3.0 x8
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels:
- 0
- 1
- 10
- 1E
- 5
- 6
- 50
- 60
Memory
Cache Memory: 1 GB
Interfaces/Ports
Total Number of SAS Ports: 4
Number of SAS Ports (Internal): 4
SAS Connector Details: 1 SFF-8643
Physical Characteristics
Height: 2.5"
Width: 6.6"
Form Factor: Plug-in Card
Miscellaneous
Platform Supported:
- PC
- Linux
Environmentally Friendly: Yes
Environmental Certification: RoHS
